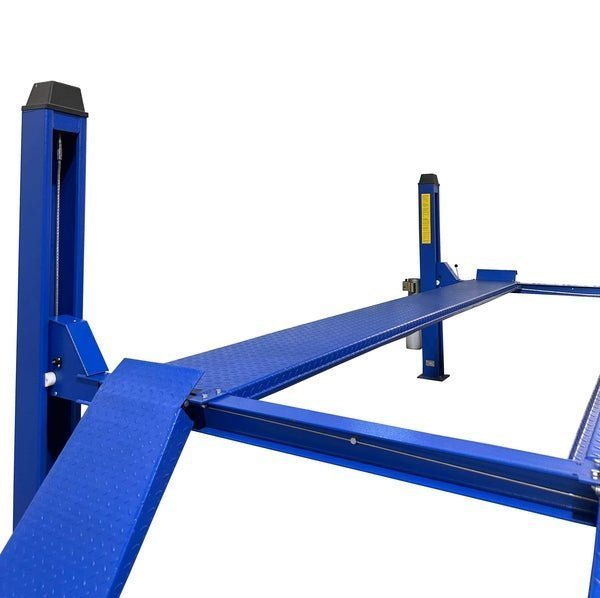

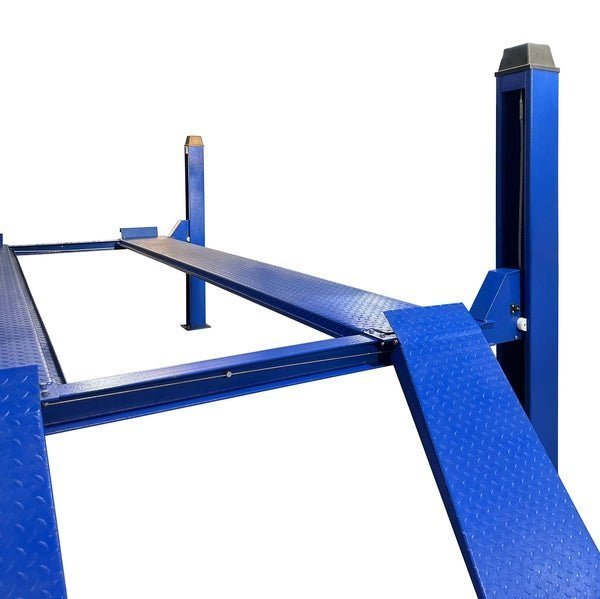

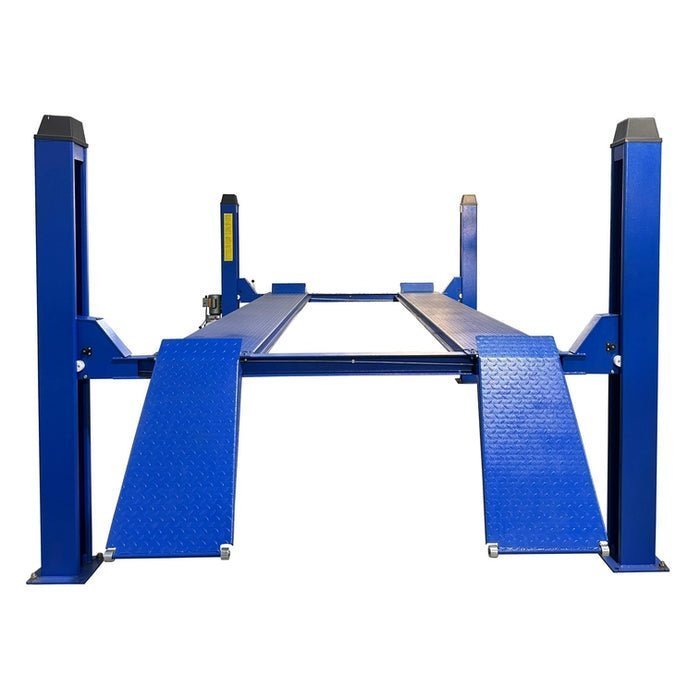

Tuxedo 12,000 lb Four Post Lift – Cable Driven
–
*Jack sold separately
Cable driven four post lift provides 12,000 lb. lifting capacity. No power beam; Cylinder stowed under single piece diamond plate track. Simple, lever release system and redundant safety locks.
Features
12,000 lbs Capacity

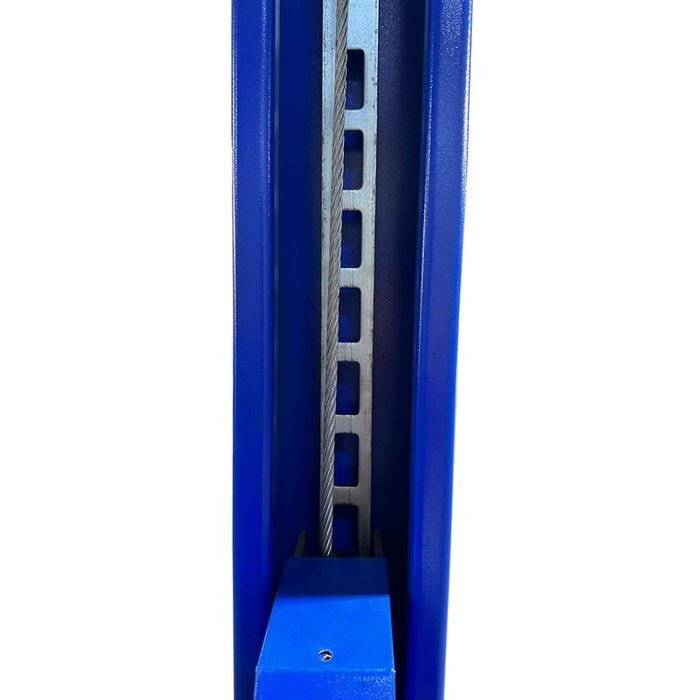

Cable Driven
176 max wheelbase

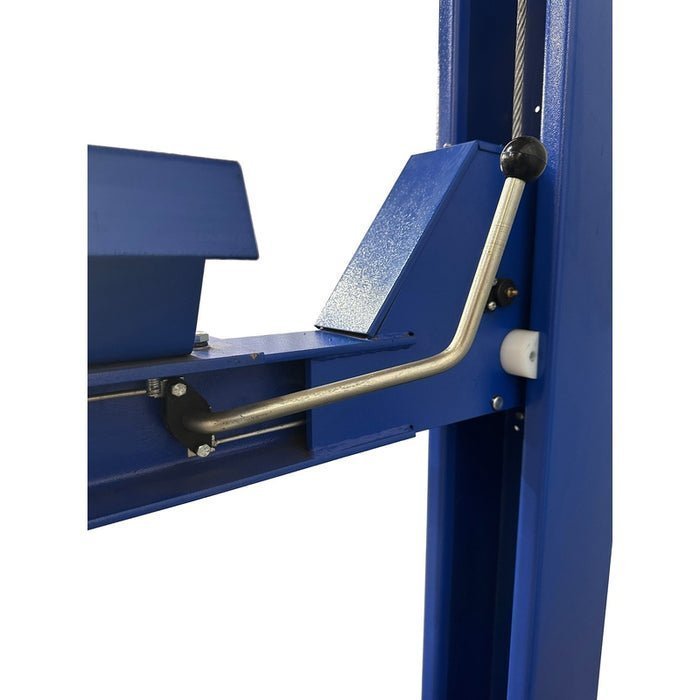

Single Point Manual Lock Release

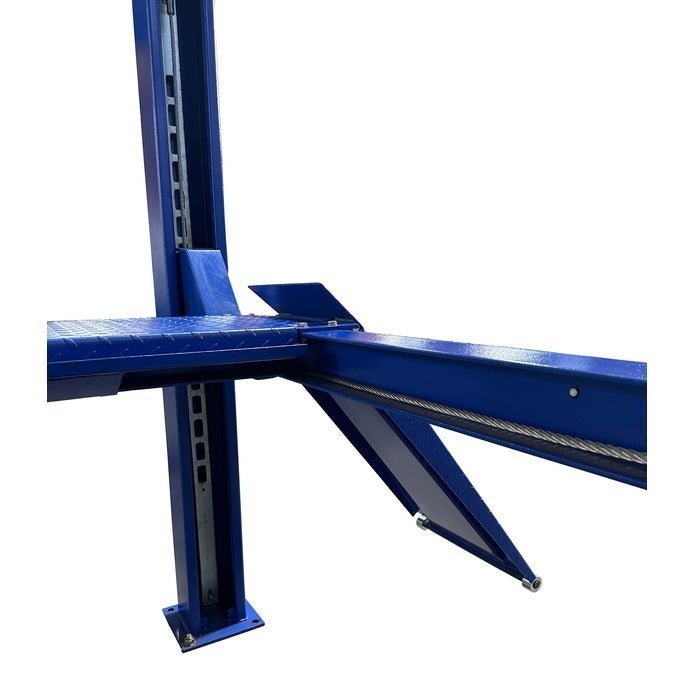

Adjustable Locking Positions

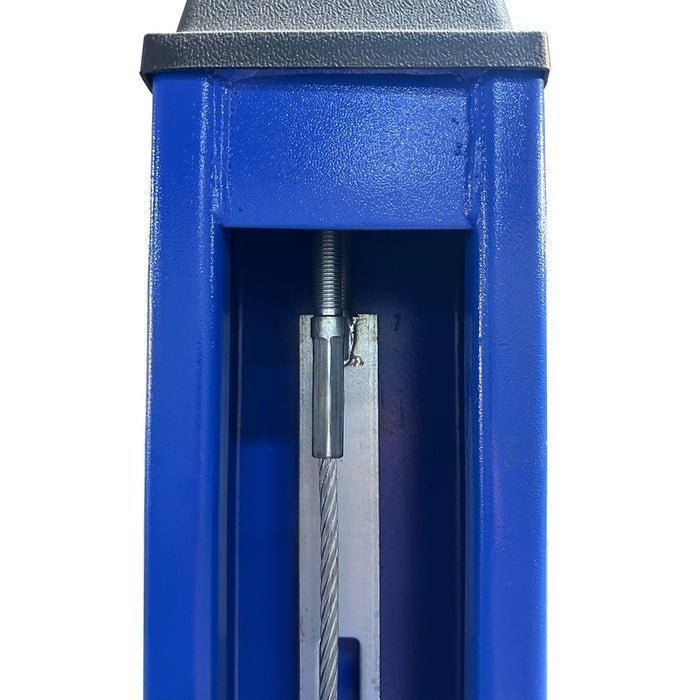

Slack Cable Safety
No Overhead Obstructions
Powder Coat Finish
Specifications
Lift Model
FP12K-K
Capacity
12,000 lbs.
Overall Length w/Ramp
232-1/2″
Overall Width
(Without Power Unit)
123″
Overall Width (With Power Unit)
134″
Overall Height
84″
Max Rise Height
67-1/2″
Min Height
7″
Width Between Posts
105″
Length Between Posts
177″
Width Between Runways
36-1/2″
Width Of Runways
19″
Max Wheelbase
167″
Ramp Length
35″
Max. Clearance Under Runway
63-1/4″
Drive-Thru Clearance
87-1/2″
Base Plate
11″ X 11″
Power Requirement
220V – 20 Amp – 1PH
Ship Weight
2,255 lbs.
Min Bay Size
15″ x 23″
