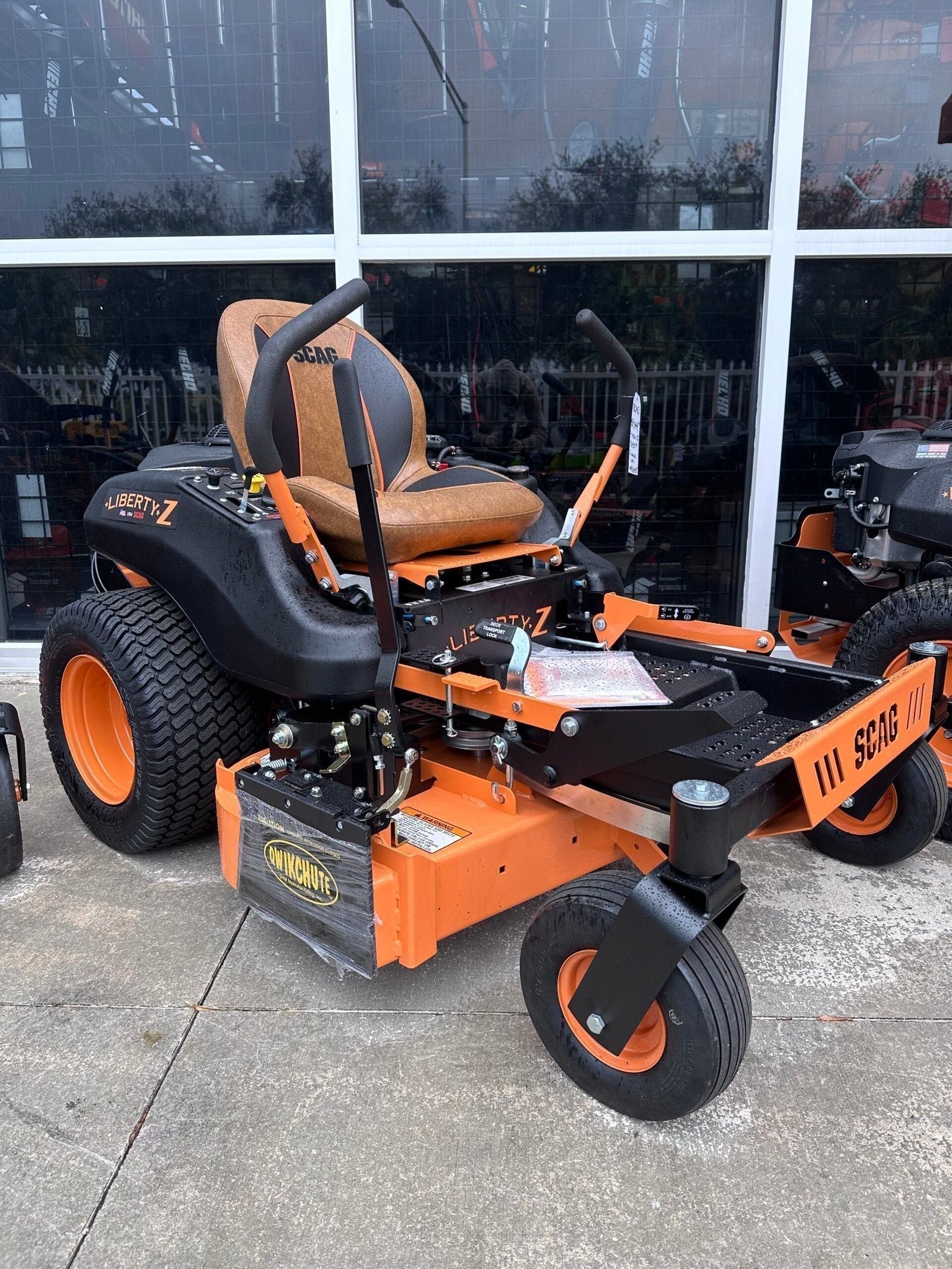

Scag Liberty Z 42″ Zero-Turn-Mower Hero Deck with Scag

$719.10

SKU: 244572 Category: Home page Tag: Uncategorized

Description

42″ Hero Cutter Deck, 21 HP Kawasaki® FR651V OR Briggs 22hp PXi OR Kohler 22HP KT

FEATURES

Proven Transaxles – Speeds Up To 7 MPH: The ZT drive systems’ dual hydro transaxles with all-metal gears and spin-on oil filters deliver smooth, solid power to the drive wheels (36″, 42″, 52″ and 61″ models). The 48″ model features proven Tuff Torq transaxles.
Command perfection – DEEP, FABRICATED, AND WELDED CUTTER DECKS: Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.
Ogura PTO Clutch Brake – Strong, Adjustable Clutch for Long Life: The Ogura GT1 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 74 ft. lb. of holding strength, and an adjustable air gap for long life.
Easy Foot-Pedal Deck Lift – Easy Up, Easy Down: Foot-pedal cutter-deck lift is spring-assisted and makes raising the cutter deck smooth and easy.
Contoured, Bolstered, High-Back Seat – Ride in Comfort: This ultra-comfortable and adjustable (with tools) and contoured for improved comfort, and features armrests.
Low-Maintenance Mower Design – More Uptime: Fewer grease points increase operator convenience and ease-of-ownership.
High-Strength Steel Frame – Solid Design for Years of Dependable Service: Tubular-steel main frame delivers unmatched strength and longevity.
Powerful and Efficient Engine Options – Reliable Power, Up To 24 HP: Choose from a Kawasaki® FR or Kohler® 7000 Series engine.

SPECIFICATIONS

Description: 42″ Hero Cutter Deck, 21 HP Kawasaki® FR651V – V-twin OR Briggs 22hp PXi OR Kohler 22HP KT
Total Fuel Capacity: 3.5 gallons (36″ and 42″); 5.5 gallons (48″, 52″ and 61″)
Drive Tires: 20″ x 8″-10″ (36″); 20″ x 10″-8″ (42″, 48″ and 52″); 20″ x 10″-10″ (61″)
Caster Tires: 11″ x 4″-5″ (36″ and 42″); 11″ x 6″-5″ (48″, 52″ and 61″)
Seat: Padded with arm rests, adjustment forward and back (tools required); (no armrests on 36″ and 42″ models)
Drive System Type: Hydro-Gear ZT2800 Transaxle (36″, 42″ and 52″); Tuff Torq TZ450 Transaxle (48″); Hydro-Gear ZT3100 Transaxle (61″)
Pumps: Internal Pump: 10 cc
Motors: Internal Motor: 10cc (Tuff Torq), 16 cc (Hydro-Gear)
Forward Ground Speed: 7 mph
Reverse Ground Speed: 5 mph
Parking Brake: Hand lever
Cutting Widths: 36″, 42″, 48″, 52″ and 61″
Type: Heavy-Duty Hero Cutter Deck
Cutting Height: 1.5″ to 4.5″ in .25″ increments
Deck Lift: Foot-operated pedal
Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
Spindles: Aluminum housing with sealed ball bearings.
Blade Engagement: Ogura GT1 (74 ft lb) – (36″, 42″, 48″ and 52″); Ogura GT2 (108 ft lb) – (61″); Adjustable air-gap for extended life.
