Engine power
24 hp
17.9 kW
Engine model number
44 EXi
Forward speed
0-7 mph
0-11.3 km/h
Front caster tires
11×6-5
Drive tires
20×10-8
Seat back height
High back with optional armrests, 18 in.
46 cm
Width of cut
Accel Deep™ mower deck, 48 in.
122 cm
Accel Deep™ mower deck, 54 in.
137 cm
Mulching system
Optional MulchControl™ attachment
Warranty
3 year or 200 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Key Specs
Power
Model number
Displacement
44.2 cu in.
724 cc
Cylinders
V-twin
Lubrication
Full pressure with replaceable filter, capacity, 2 U.S. qt
1.9 L
Type
Overhead valve
Battery
12 V
300 CCA
Choke/speed control
Single lever
Cooling method
Air
Fuel tank capacity
3.0 U.S. gal.
11.4 L
Fuel gauge
Translucent tank
Engine
Dual hydros
Hydro-Gear EZT-D with 1-in. (2.5-cm) axles
Drive train
Reverse speed
0-3.5 mph
0-5.6 km/h
Speed and direction control
Twin levers
Control adjustment
3 height, 11 positions
Travel speed
Frame
Heavy-duty 2.5-in. x 2-in. (6-cm x 5-cm) front, and 1.5-in. x 2-in. (4-cm x 5-cm) side tubing
Primer/paint
E-coat/powder
Front caster bearings
Sealed ball bearings
Hour meter
Yes
Service interval decal
Storage compartment
Optional covered
Cup holder
Maximum towing capacity
250 lb
113 kg
Chassis
Fore-aft adjustment
2.9 in.
7 cm
Seat suspension
Two springs
Seat
Foot lift
Mower cut height
1.25-4.5 in.
3-11 cm
Cut height increments
0.25 in.
0.64 cm
Preset cut height
Lift system
Side discharge
Mower deck material
10 gauge
0.135 in.
3.4 mm
Mower drive system
V-belt
Mower deck
Electric, 105 lb-ft
142 Nm
Drive
PTO
Wheelbase
49.4 in.
1255 mm
Overall length
75.4 in.
1915 mm
Width without mower
43.3 in.
1100 mm
Width with mower
48A: 62.6 in.
1590 mm
54A: 68.5 in.
1740 mm
Width with mower (deflector raised for storage)
48A: 52.8 in.
1340 mm
54A: 57.1 in.
1450 mm
Height
42.5 in.
1080 mm
Weight
48A: 594 lb
270 kg
54A: 605 lb
275 kg
Dimensions
Rollover protective structure (ROPS)
No
Slope operating limit
13 degrees; 10 degrees with Material Collection System
Operator presence system
Park brake interlock
Operator video
Yes, online
Operation
Note 1
Durable Accel Deep Mower Decks are forged from 10-gauge steel with double captured mower wheels
Note 2
Easily change cut height from 1.25 to 4.5 in. (3 to 11 cm) using the foot lift and cutting height dial
Note 3
Integrated park brake is automatically applied when steering levers are stowed outward
Buyer’s notes
Rubber floor mat
Optional
Sun shade
Mounted sprayer
Not available
Protective cover
Light kit

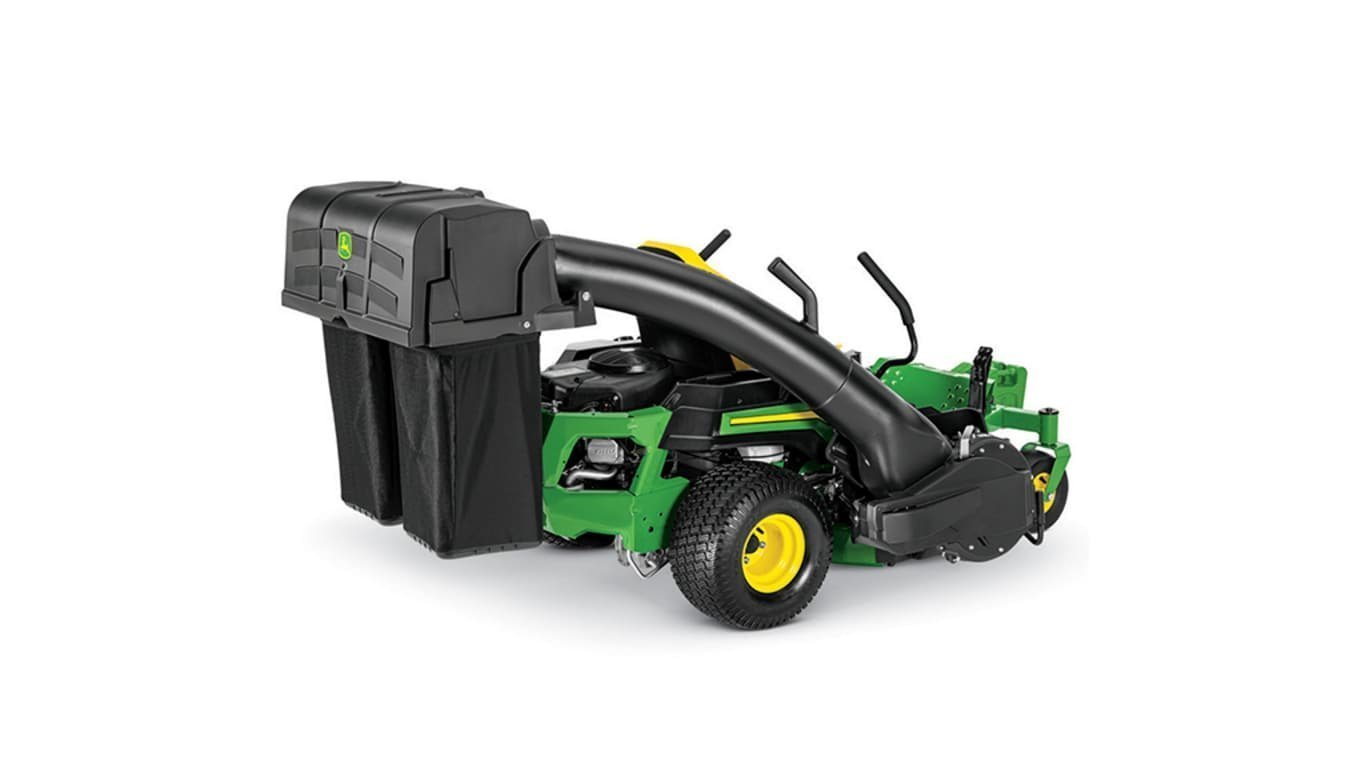

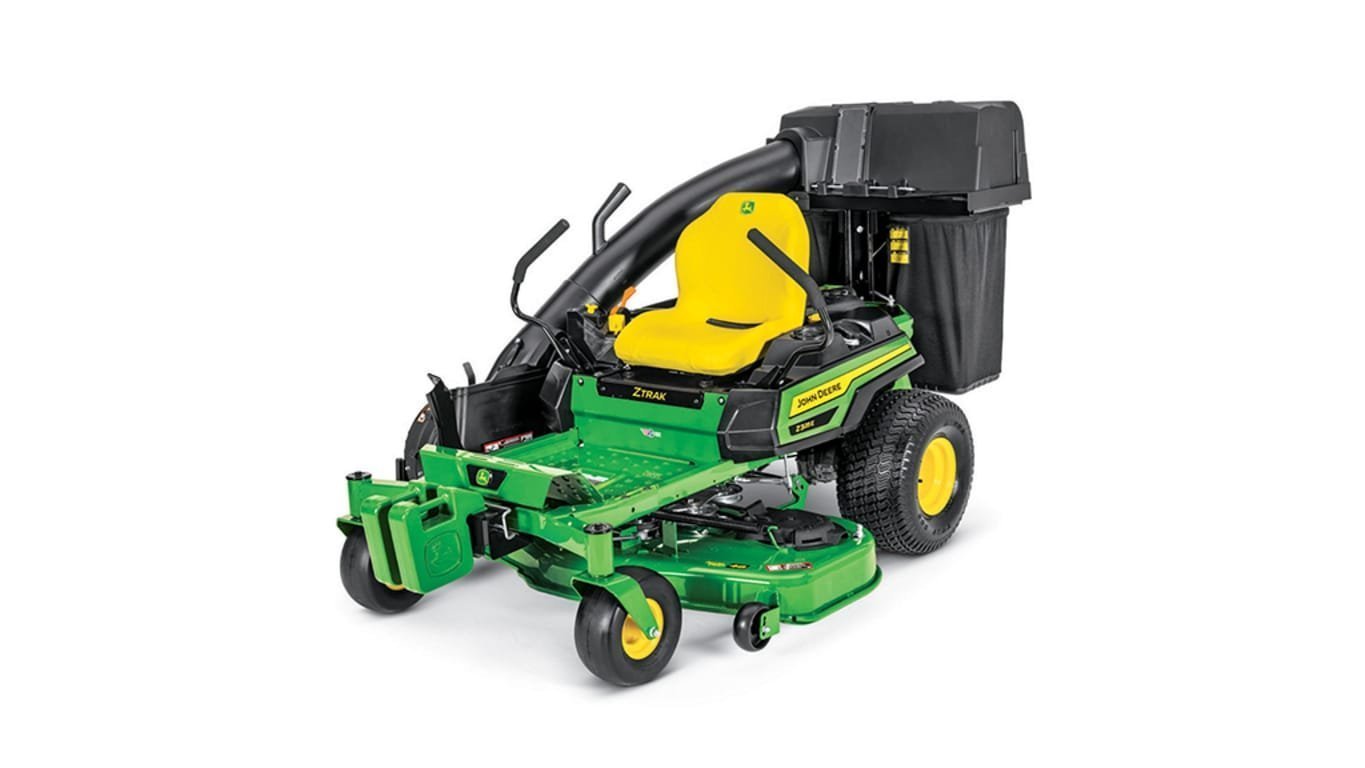

Material collection system
Two-bag Power Flow MCS, 6.5 bu
229 L
Optional attachments
Manufacturing location
Greeneville, Tennessee, USA
Date collected
3-Oct-22
