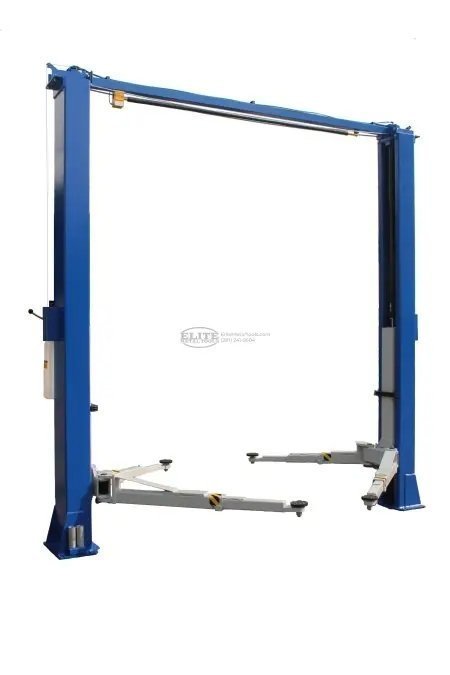

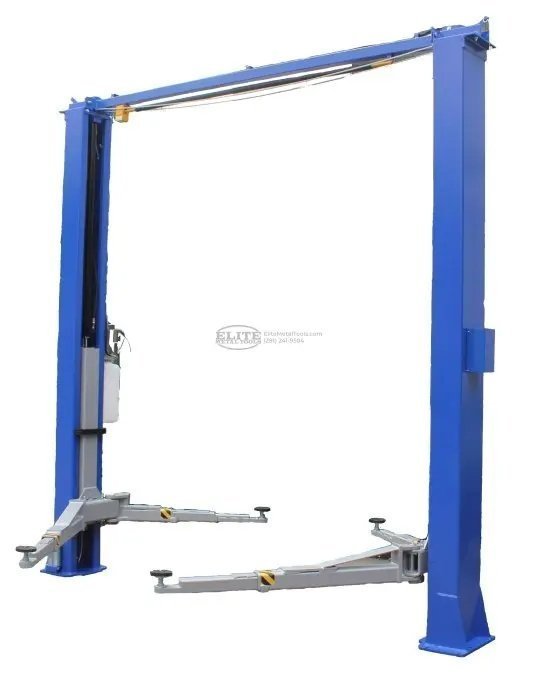

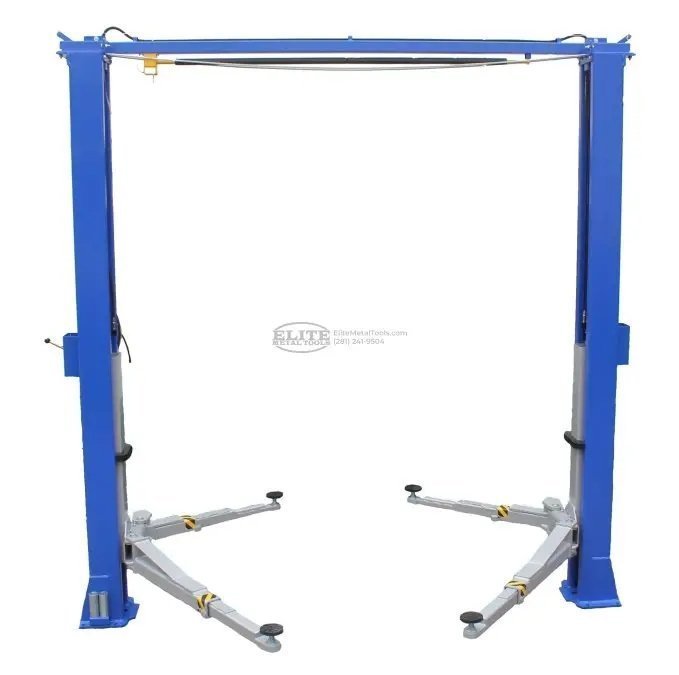

Tuxedo 11,000 lbs Two Post Clear Floor Direct Drive Bi-Symmetric Lift TP11KC-DX

11,000 lbs Capacity

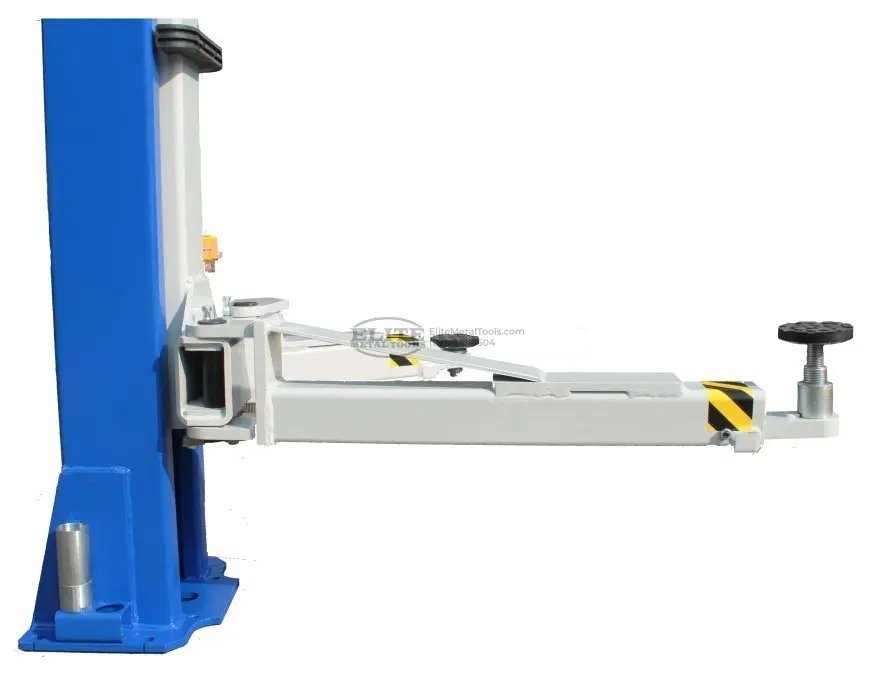

Bi-Symmetric arm design

Rubber Door Guards

3 Stage Front Arms

Single Piece Column

Direct Drive pull Cylinders

Single Point Lock Release

Heavy Duty Arm Restraint System

Spin Up Low Profile Lift Pads

Stackable Adapters Included

External hose guards

Specifications

Lift Model: TP11KC-DX

Capacity: 11,000 lbs.

Height Overall: 144″

Width Overall w/ Power Unit: 145-1/2″

Max Lift Height: 71″

Width Between Columns: 116″

Min. Pad Height: 4″

Drive Thru Clearance: 104″

Lifting Speed: 50S

Asymmetric / Symmetric: Asymmetric/Symmetric

Clear Floor / Floor Plate: Clear Floor

Short Arm Reach – min/max: 23″ – 45″

Long Arm Reach – min/max: 41″ – 57″

Narrow Bay Setting: NA

Max Load Per Arm: 2,750 lbs.

Ship Weight: 1,705 lbs

Power: 220V – 20 AMP – 1 PH
