Model 10-326: 14″ Deluxe Bandsaw

13″ Cutting Capacity

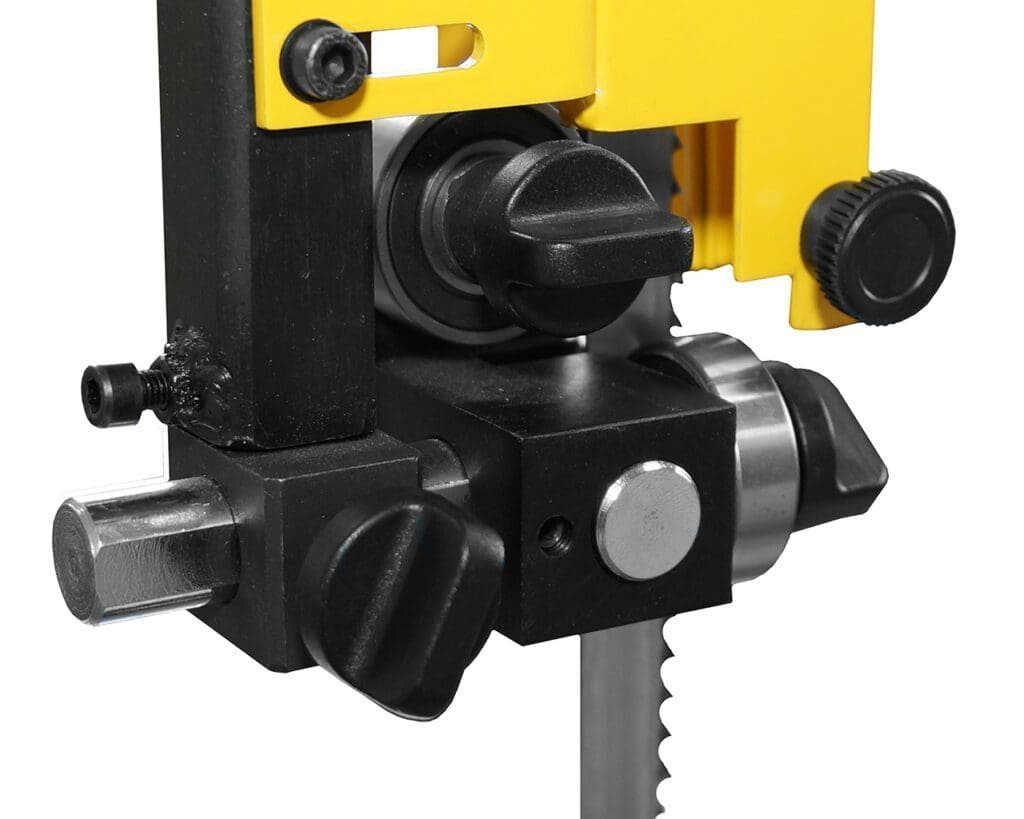

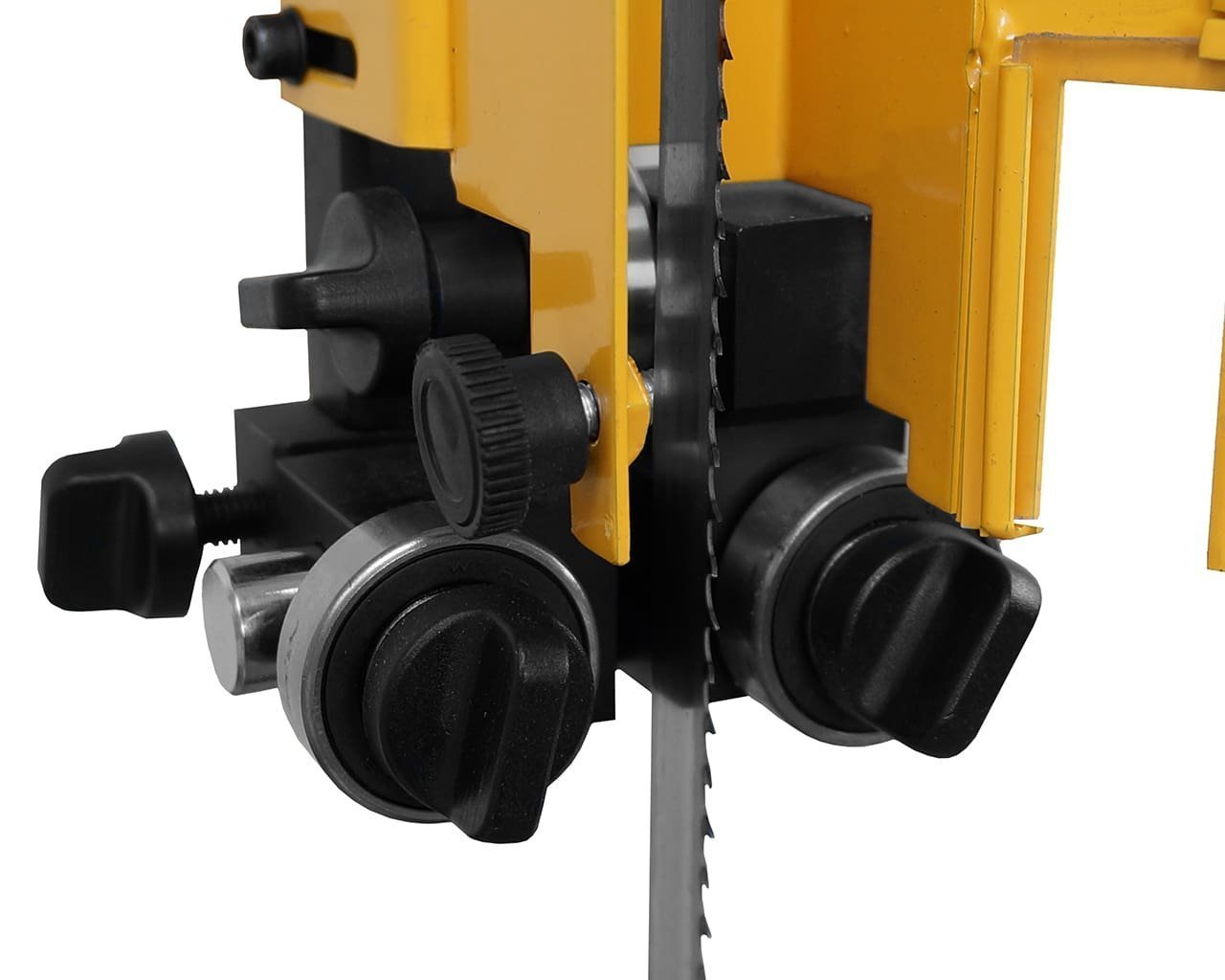

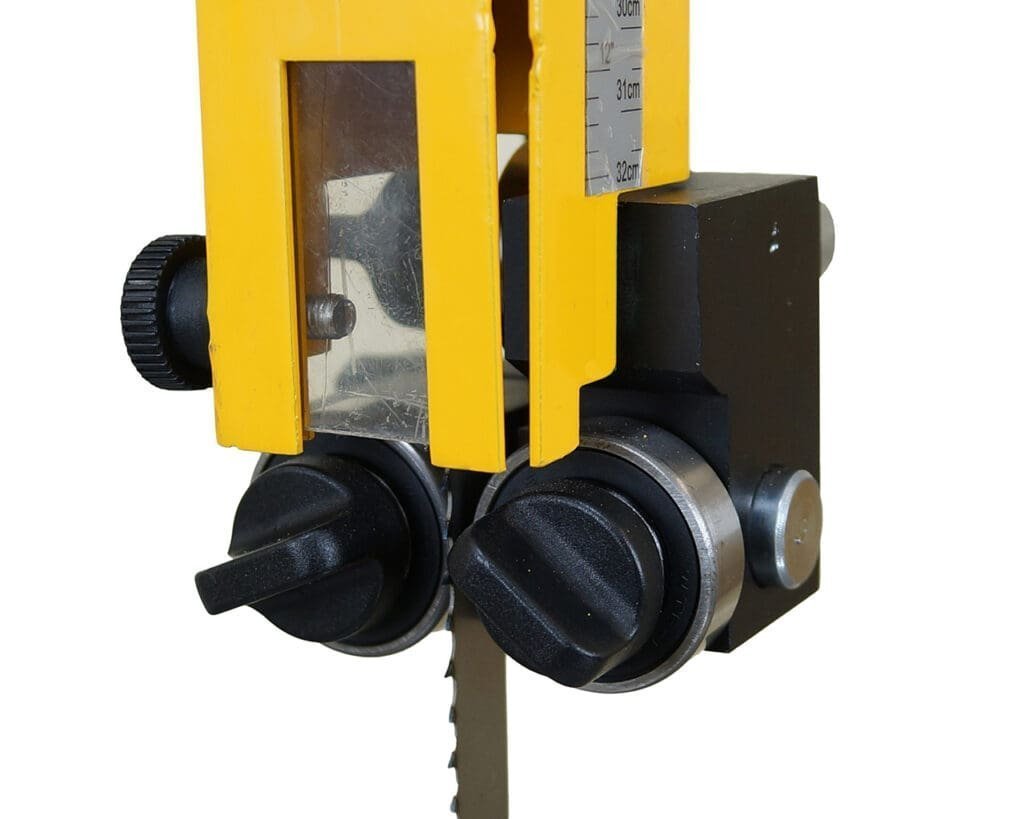

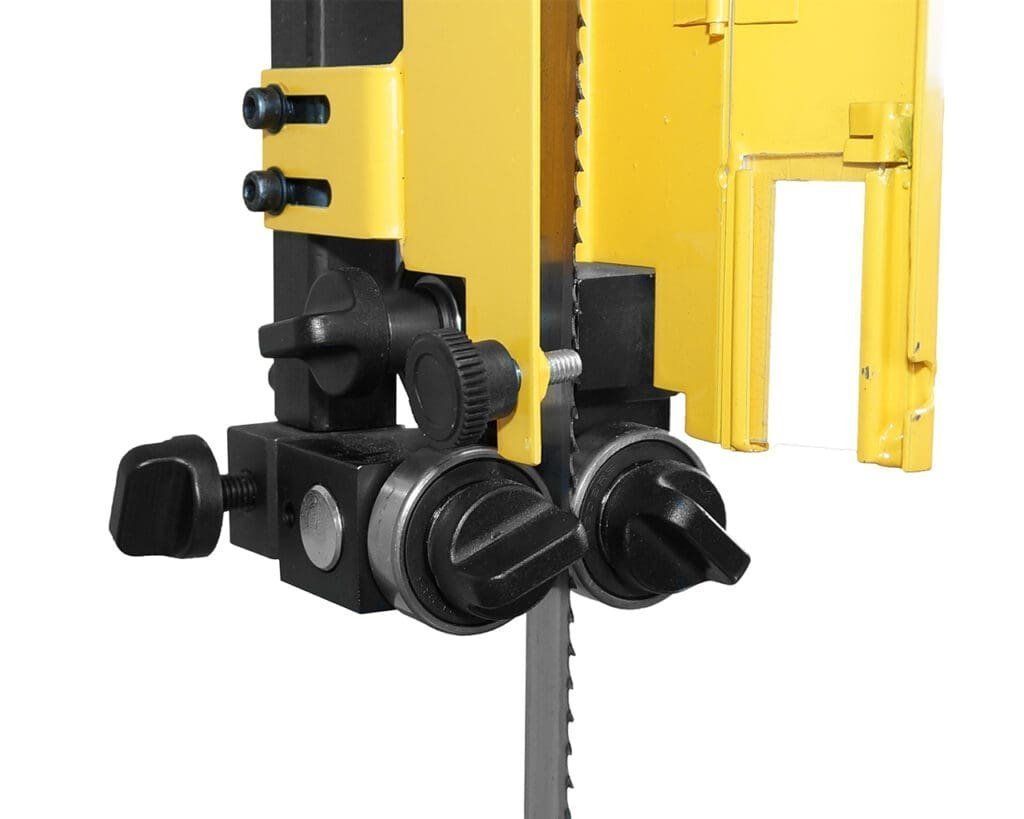

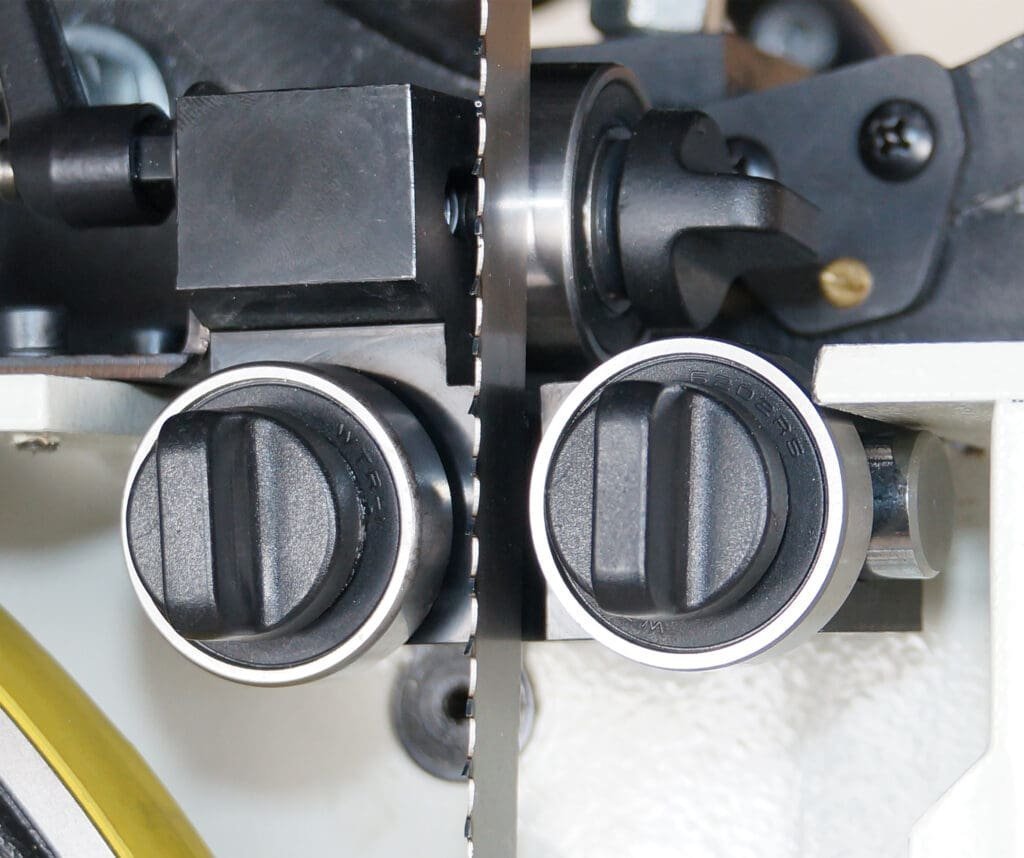

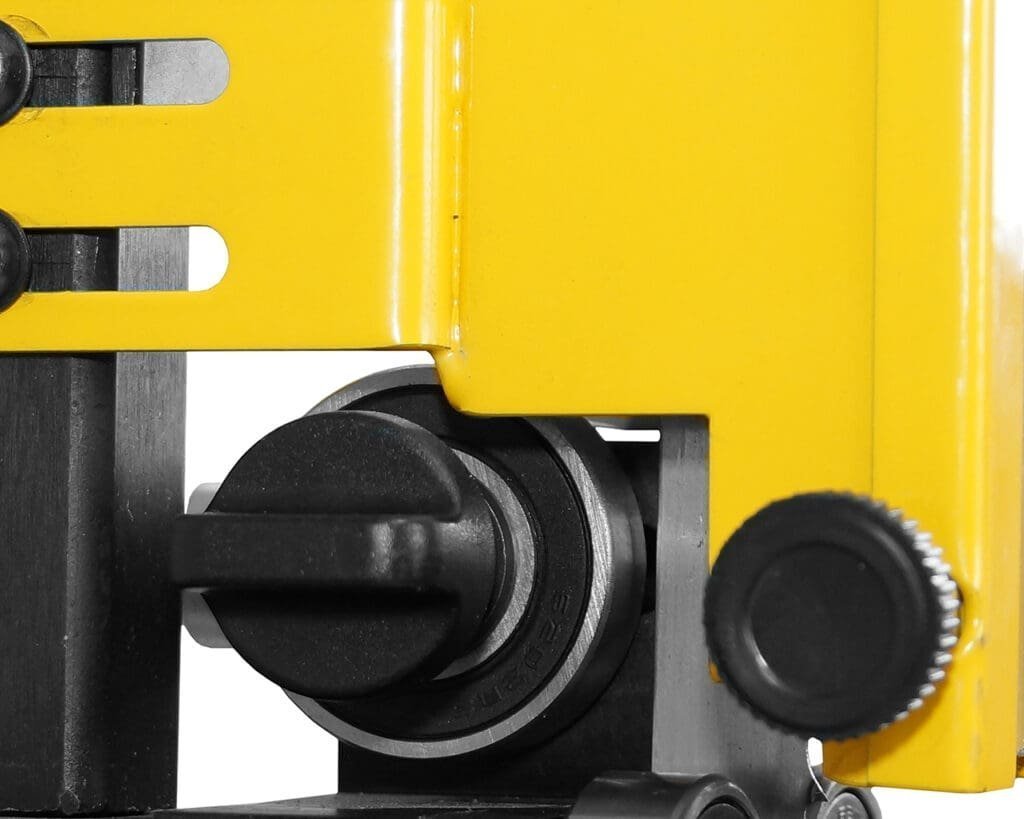

• Patented – Spring Loaded Tool-less Guide System

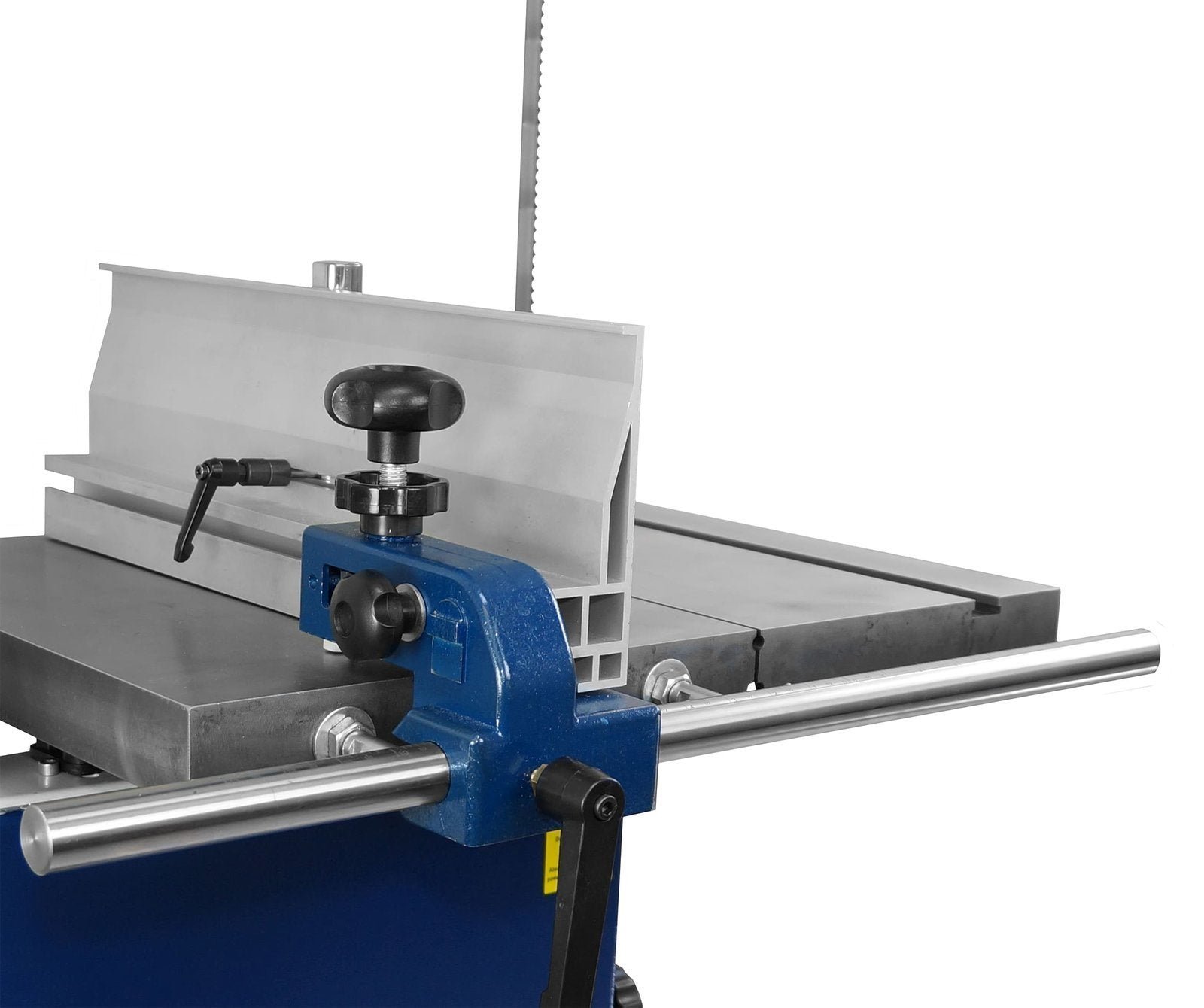

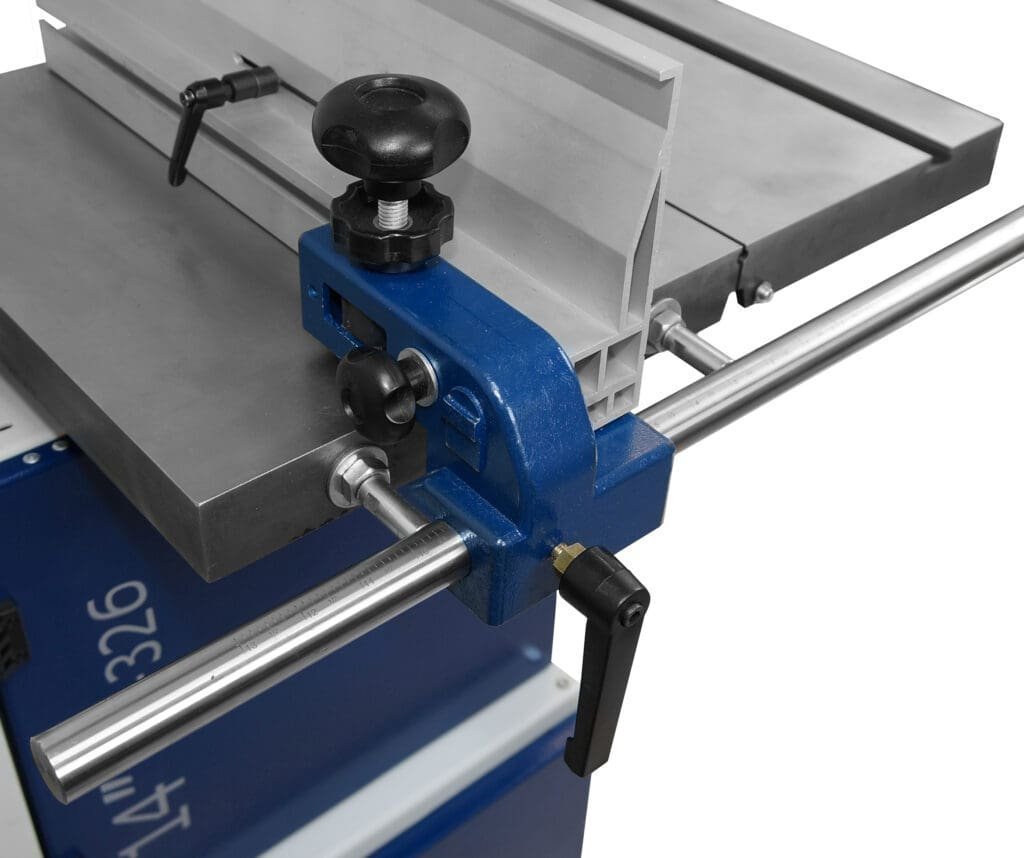

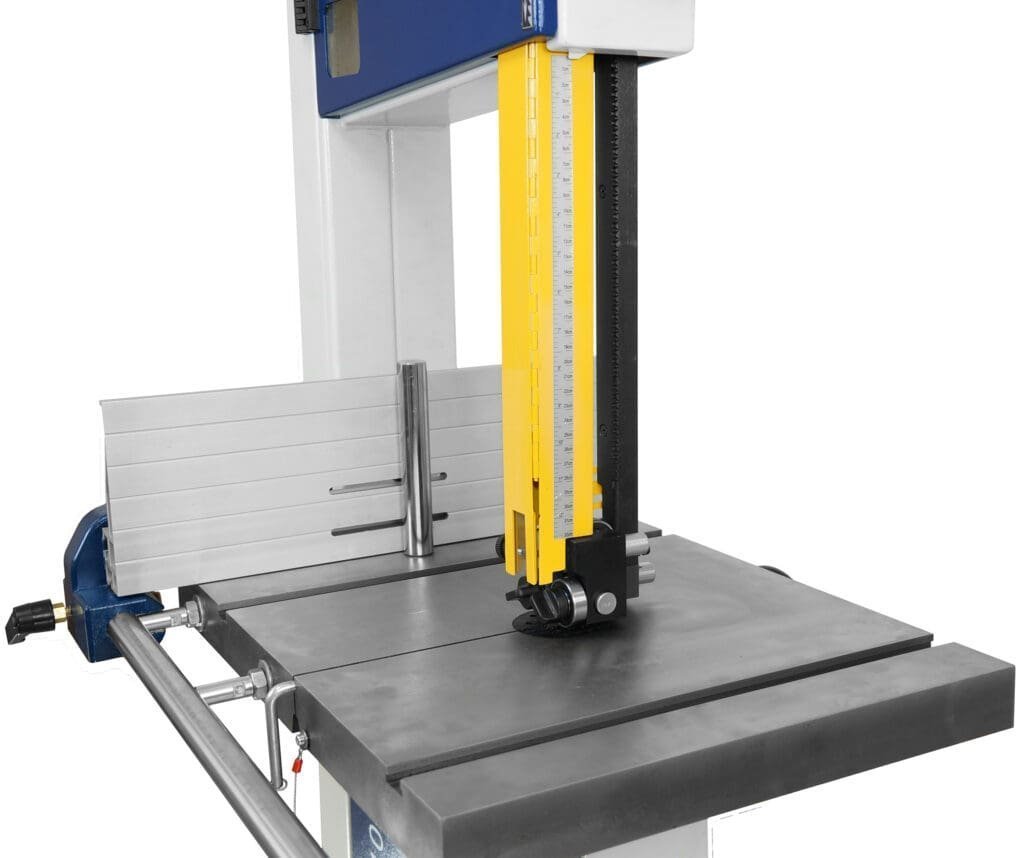

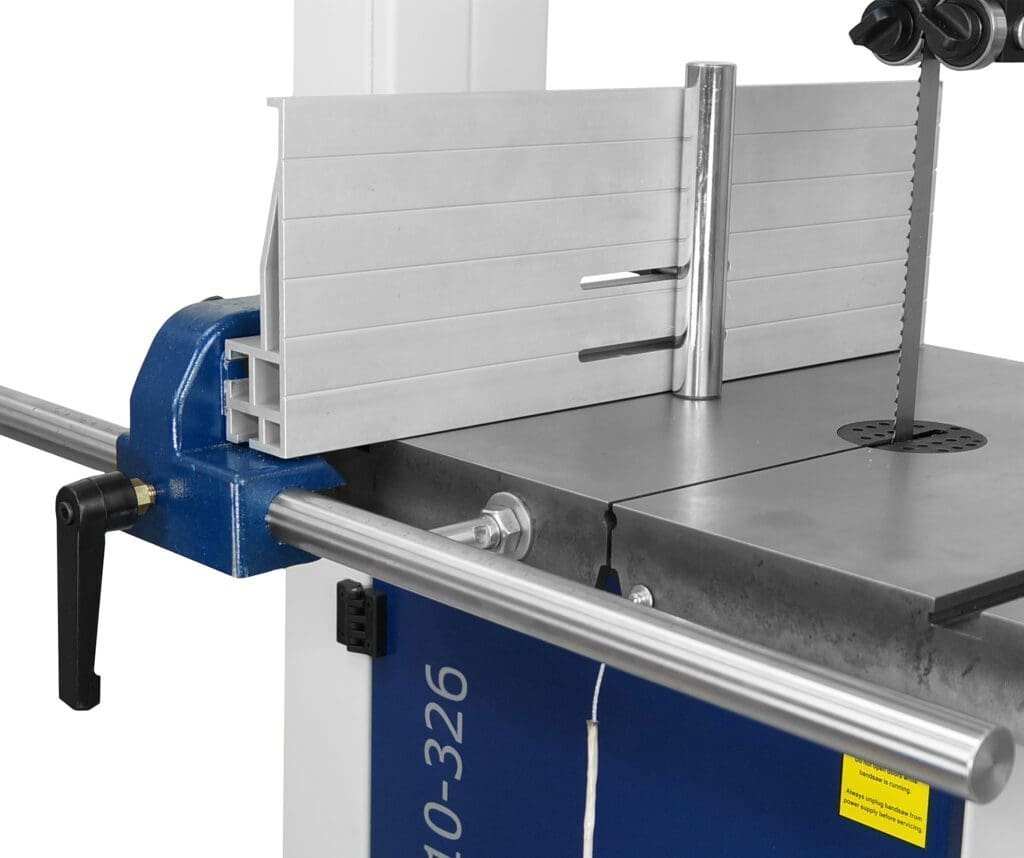

• Patented – Quick Adjust Fence System With 6″ Tall Rip Fence

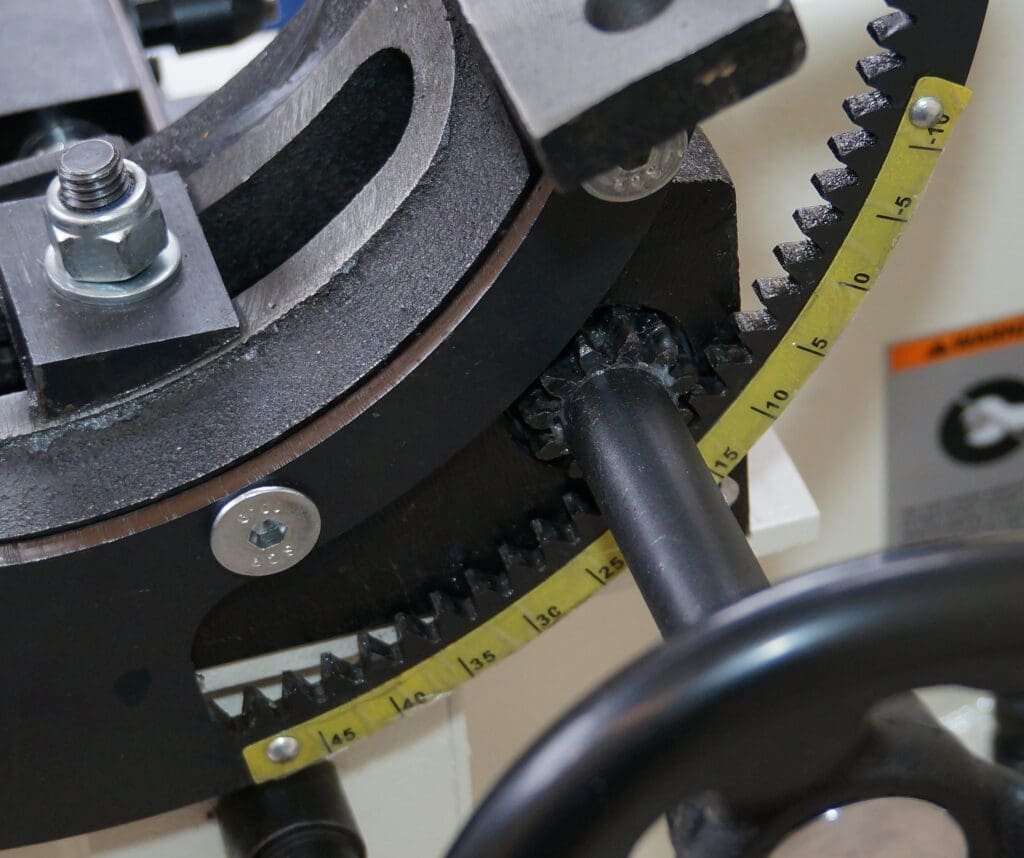

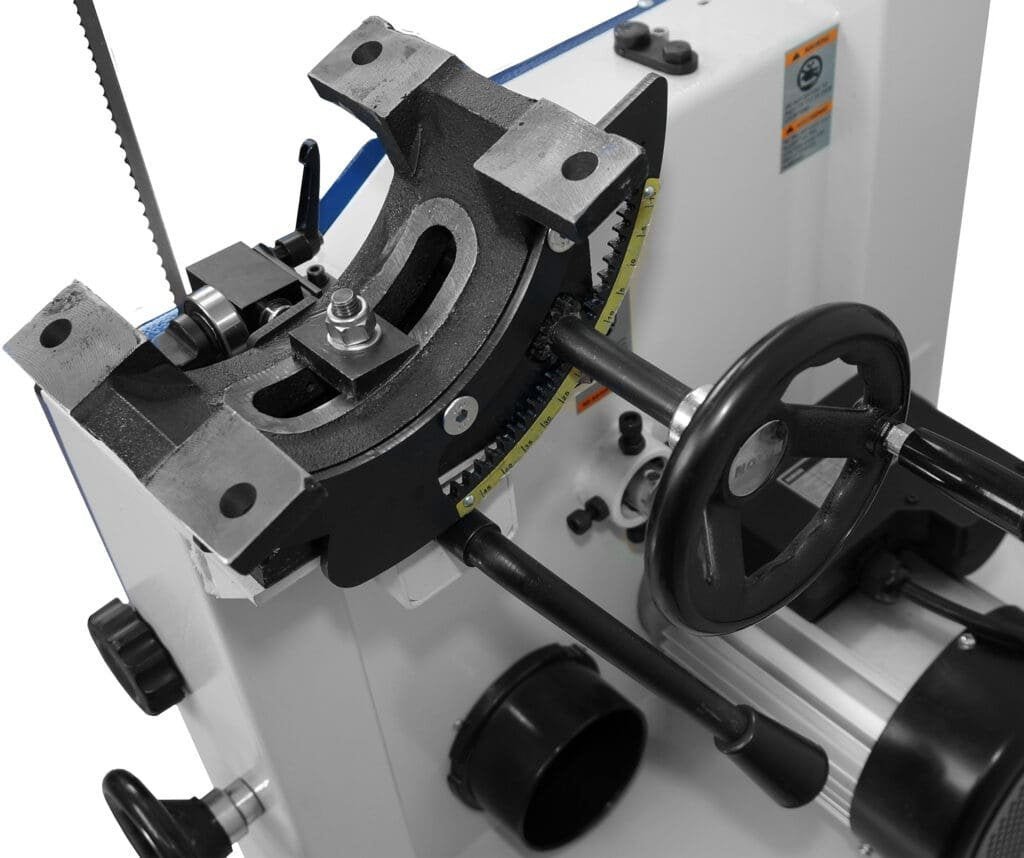

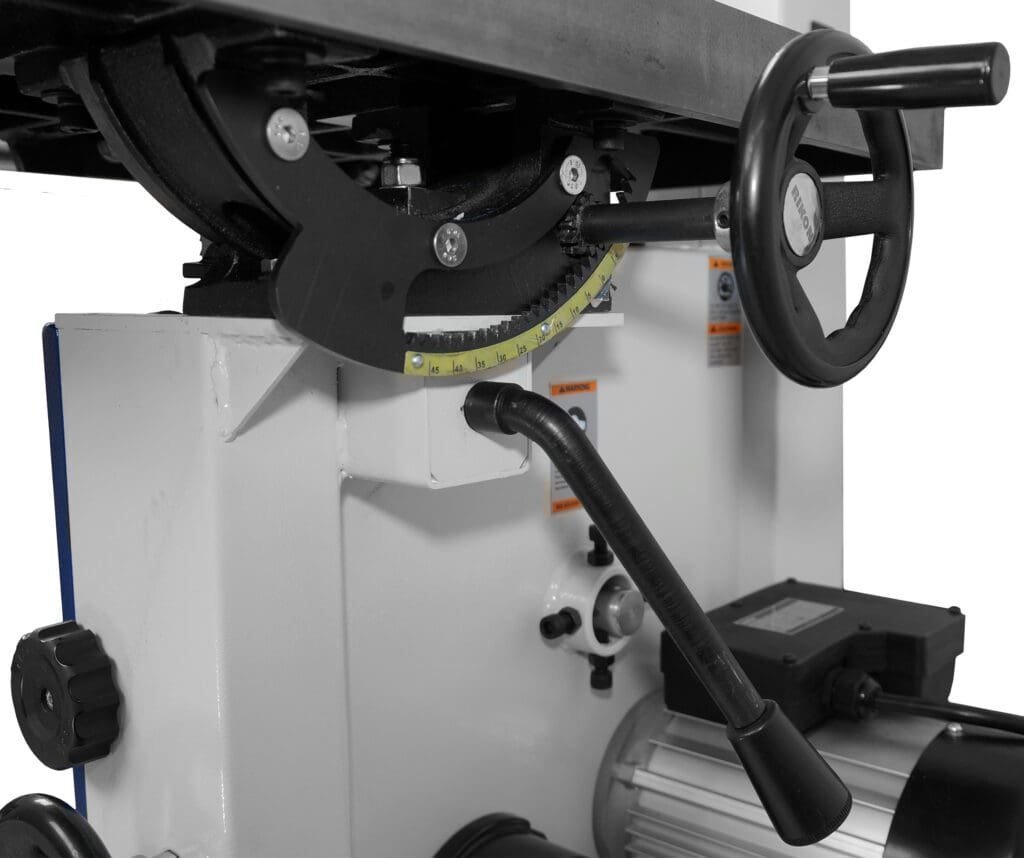

• Patented – Quick Lock Cast Iron Trunnion System

• 2 Speeds 1,445 / 2,950 FT / MIN.

• Large Cast Iron Table

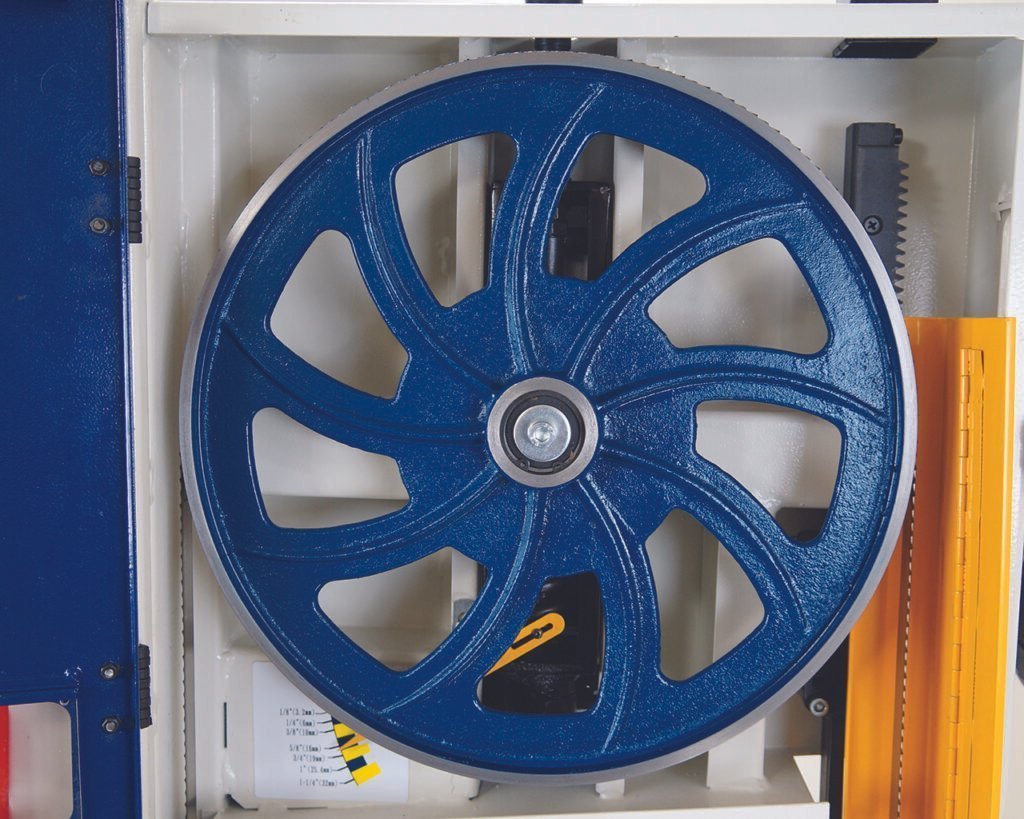

• Balanced Cast Iron Wheels

14” Bandsaw #10-326 is RIKON’s newest model with many Patented features that professionals will enjoy – including spring-loaded tool-less blade quides, quick-adjust fence system and quick-lock trunnion table

[show_more more=”» Read More” less=”» Read Less” color=”#0f70e8″]angling system, plus, a quick release blade tension lever, large adjustment handles, hinged safety blade guard with sight window, high work table height, and storage cabinet base. Its dual voltage, 1-3/4HP motor provides ample power for most every work encountered. Designed with two speed options – just change the drive belt on the pulleys to change from fast to a slower blade speed. Includes 6” tall rip fence with re-saw bar. Wired for use with 3-wire 120V receptacles.

Tech Specs

Motor Horsepower

1-3/4 HP TEFC

Motor Amps

14/7

Motor Volts

115/230V, 60Hz, 1Ph

Blade Speed

1,445/2,950 FT/MIN

Cutting Capacity Height

13”

Cutting Capacity Width

13-5/8”

Blade Width

3/16” – 3/4”

Blade Length

111”

Table Size

21-1/2” x 15-3/4”

Table Left Tilt

-7°

Table Right Tilt

45°

Table Miter Gauge “T” Slot

(2) 3/4” x 3/8”

Table Height to Floor

40-1/2”

Table Height to Base

20-7/8”

Table Fence Size

18-3/4” x 1-3/4” x 6”

Wheel Material

Cast Iron

Blade Guide Type

Spring Loaded

Table Trunnion

Overall Height

74-1/2”

Overall Width

33-3/4”

Overall Depth

25”

Overall Base Size

24” x 17-5/8”

Dust Port

1@4”

Overall Net Weight

285 lbs.

Warranty

5 Years
