Katool Two Post Clear-floor Vehicle Lift 11,000 lbs Lifting Capacity M110
Product Description
KT-M110
11000lbs Vehicle
Lift
11000lbs lifting capacity
CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested

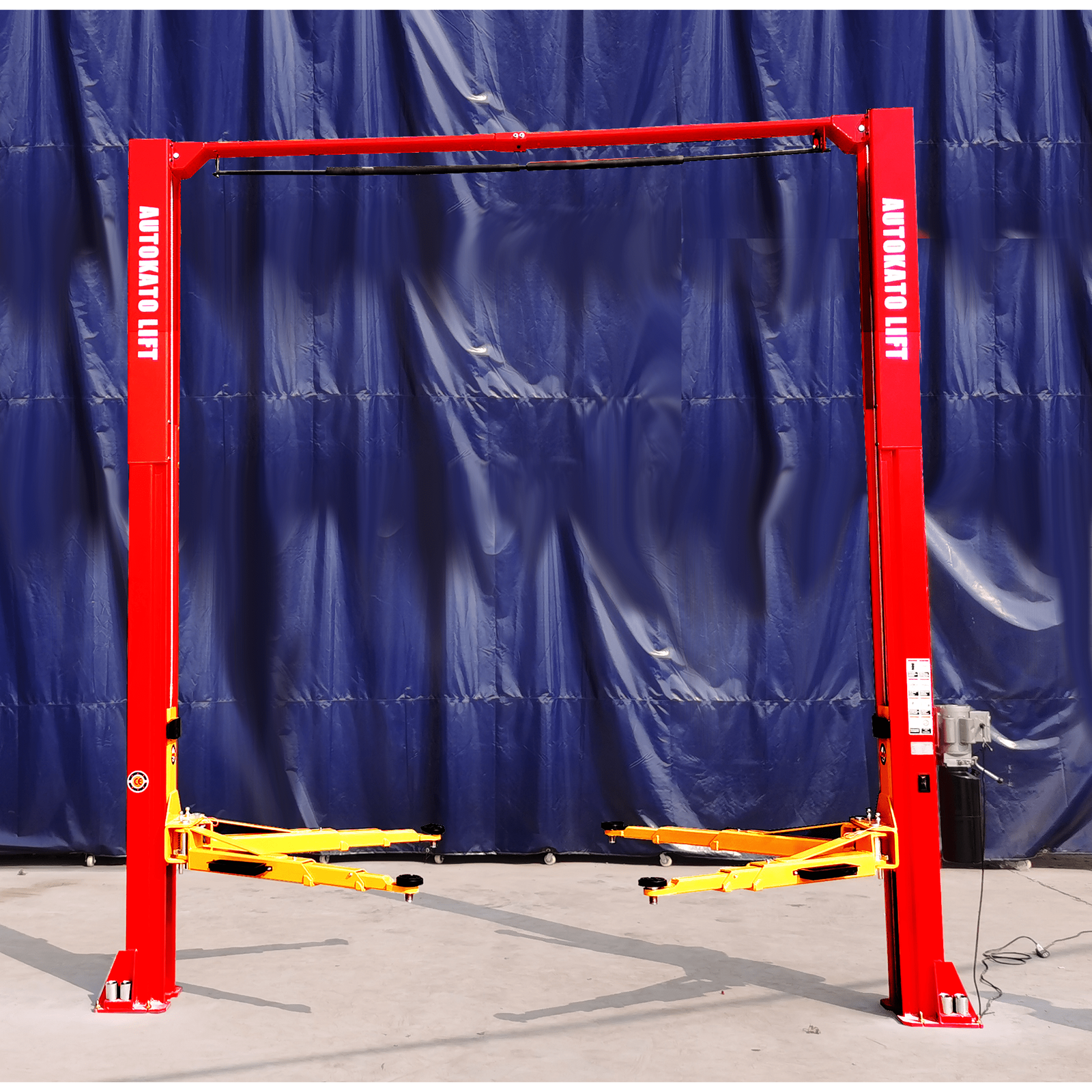

Symmetric clear-floor design
Manual safety release from two sides

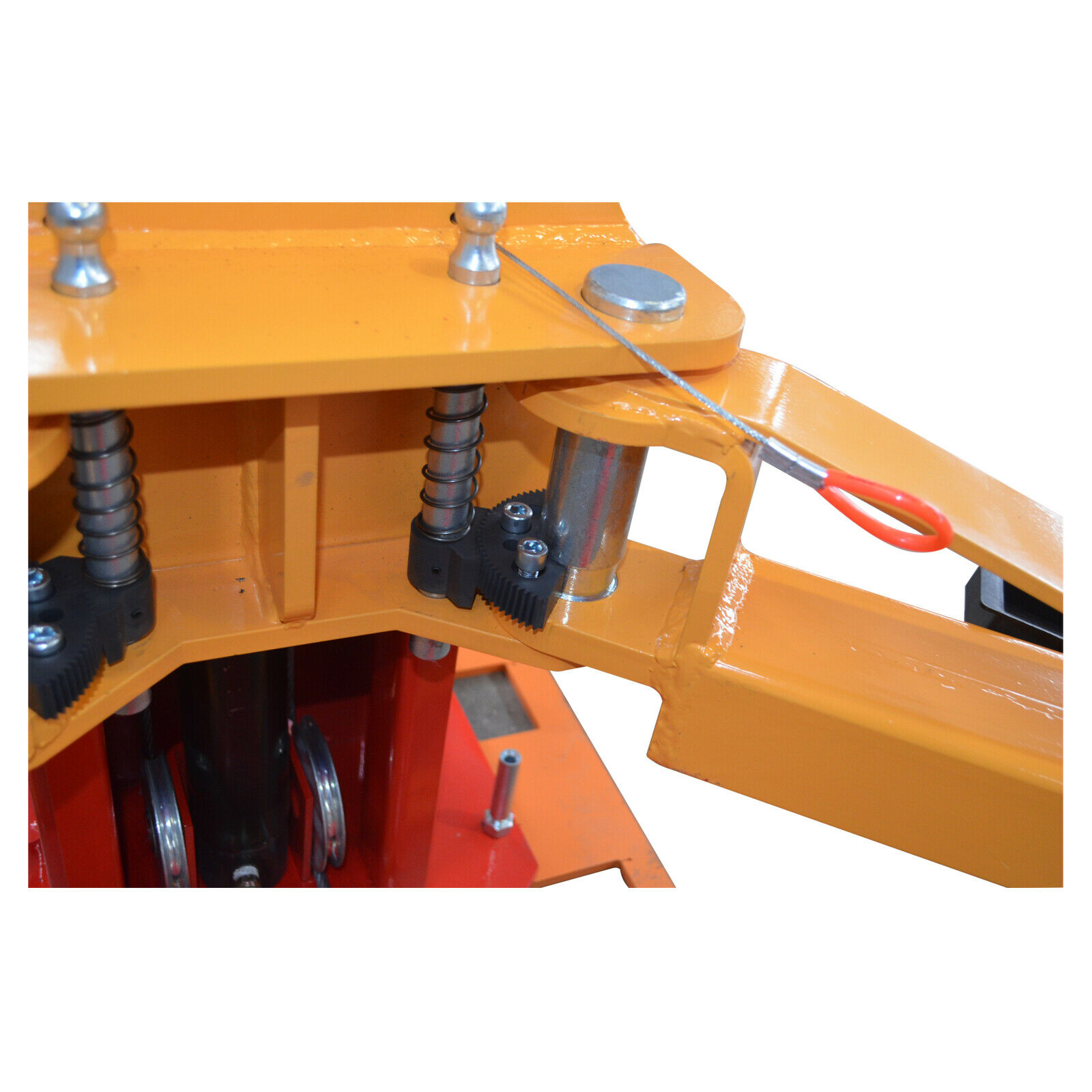

Symmetric arm

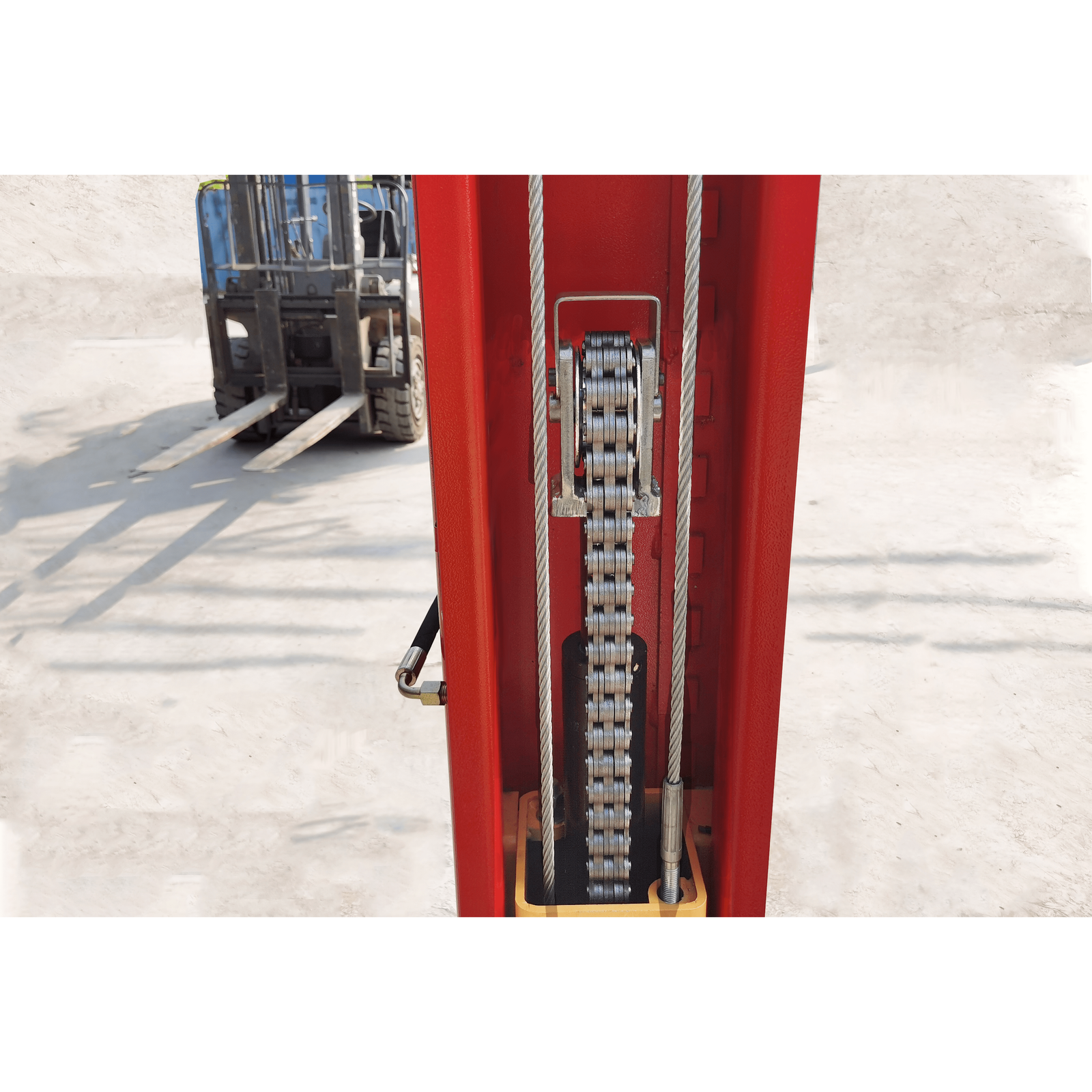

Dual Hydraulic Chain-Drive Cylinders
Rubber pad door opening protection

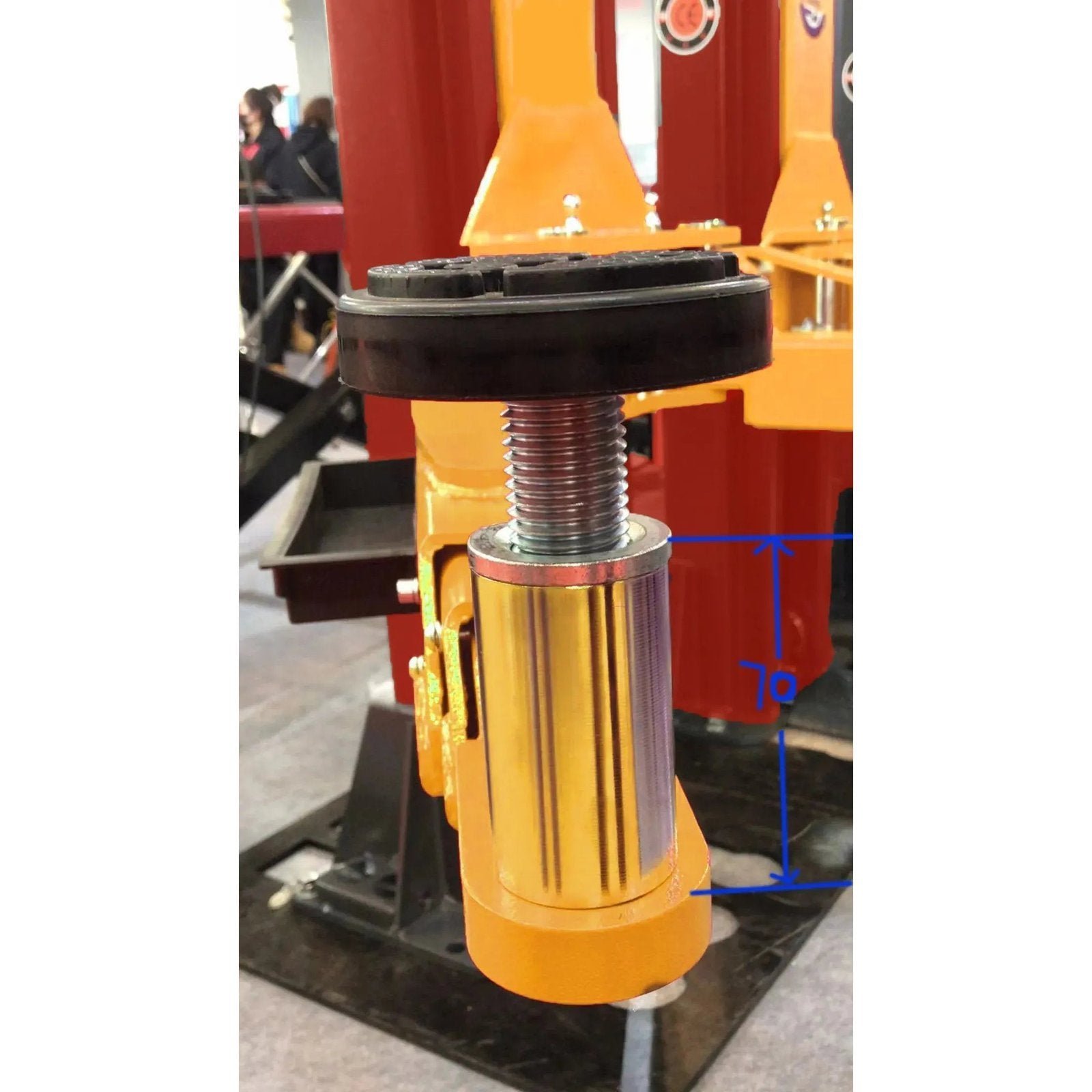

Comes with extension support adaptor sets of +30mm and +120mm
Added overhead safety shutoff bar
Feet-protection safety guardrails with tools box
Top-level hydraulic system with 220V/60HZ/1PH and 110V/60HZ/1PH(Optional)
Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete, could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.

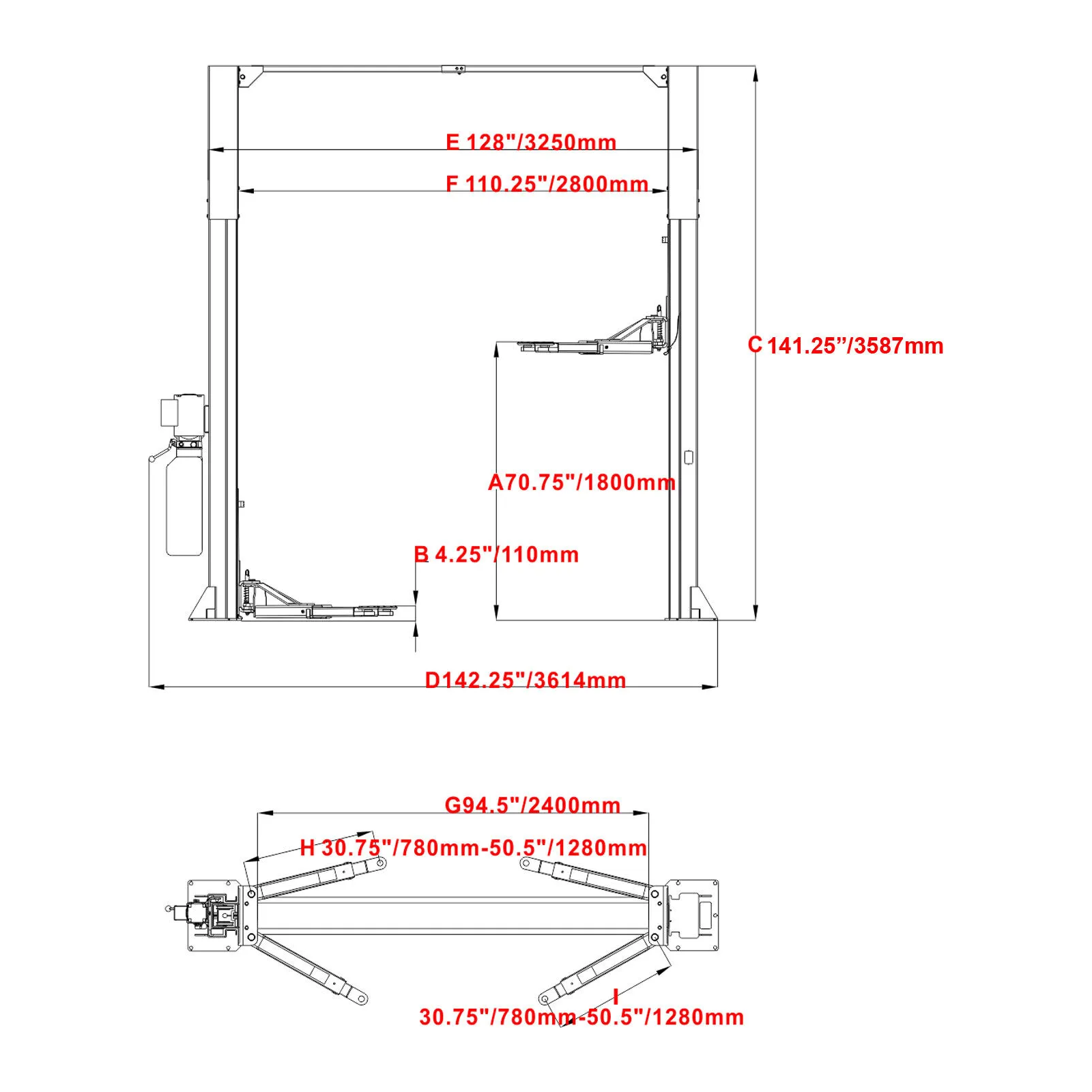

Specifications
Lifting Capacity
11000lbs.(5000KG)
Max. Lifting Height
70.75″/1800mm
Min. Height
4.25″/110mm
Height Overall
141.25″/3587mm
Width Overall
142.25″/3614mm
Outside Column
128″/3250mm
Inside Column
110.25″/2800mm
Dirve-Thru Clearance
94.5″/2400mm
Front Arm Reach (Min)
30.75″/780mm (2 stages)
Front Arm Reach (Max)
50.5″/1280mm (2 stages)
Rear Arm Reach (Min)
Rear Arm Reach (Max)
Motor
220VAC/60HZ/1PH/2.2KW
Net Weight
1367lbs/620KG
