Katool Two Post Asymmetrical Vehicle Lift 11,000lbs Single Point Lock Release AS110D
Product Description
KT-AS110D 11000lbs Two Post Asymmetrical Vehicle Lift
11000lbs (4990KG) lifting capacity
CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested
Single Point Lock Release

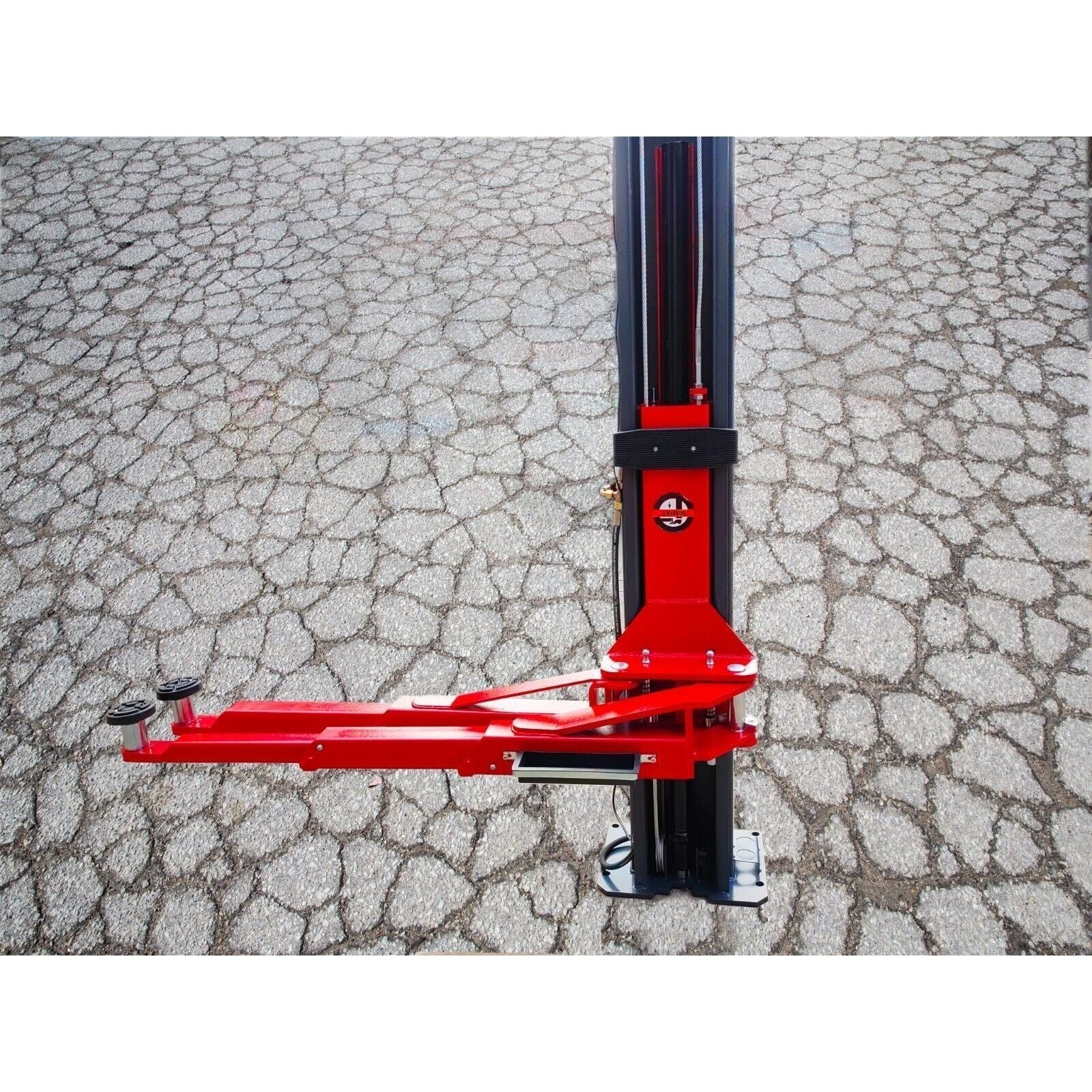

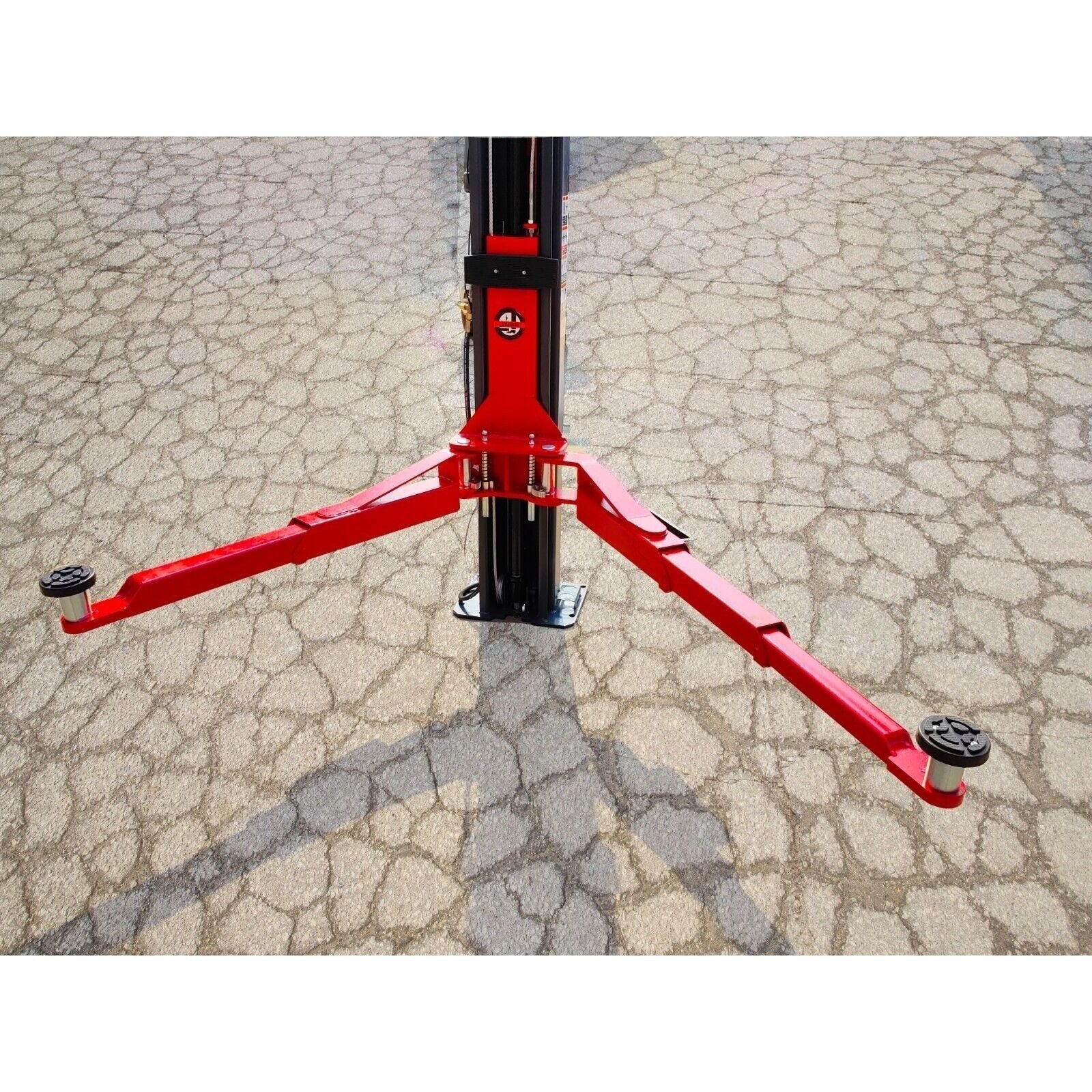

Asymmetric arms
Direct Drive Cylinders
Rubber pad door opening protection

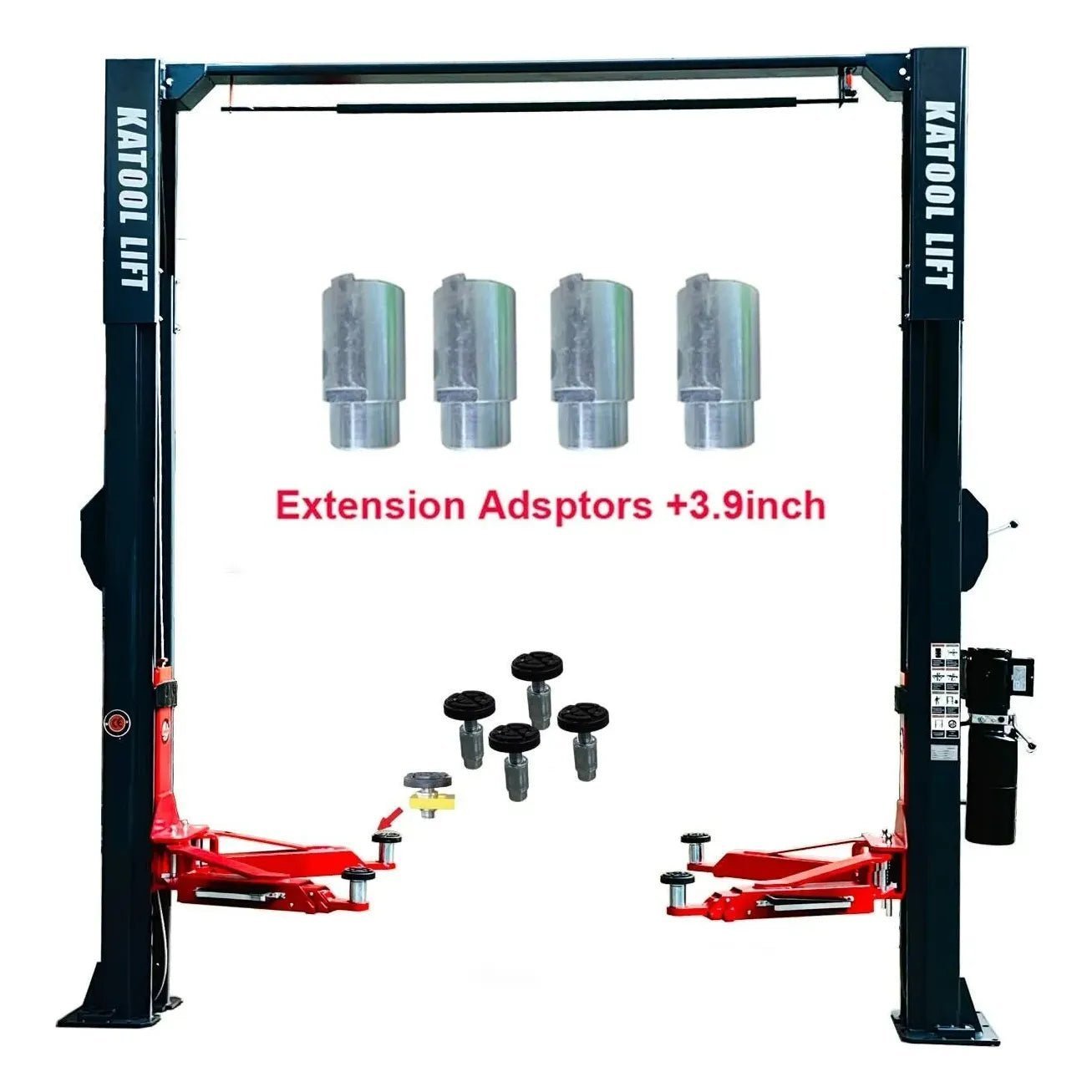

Comes with adjustable extended support adaptor sets that range from 3.94 inches to 6 inches.
Overhead safety shutoff bar
Feet-protection safety guardrails with toolbox
High-quality hydraulic system with 220V/60HZ/1PH or 110V/ 60HZ/ 1PH (Optional)
Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.

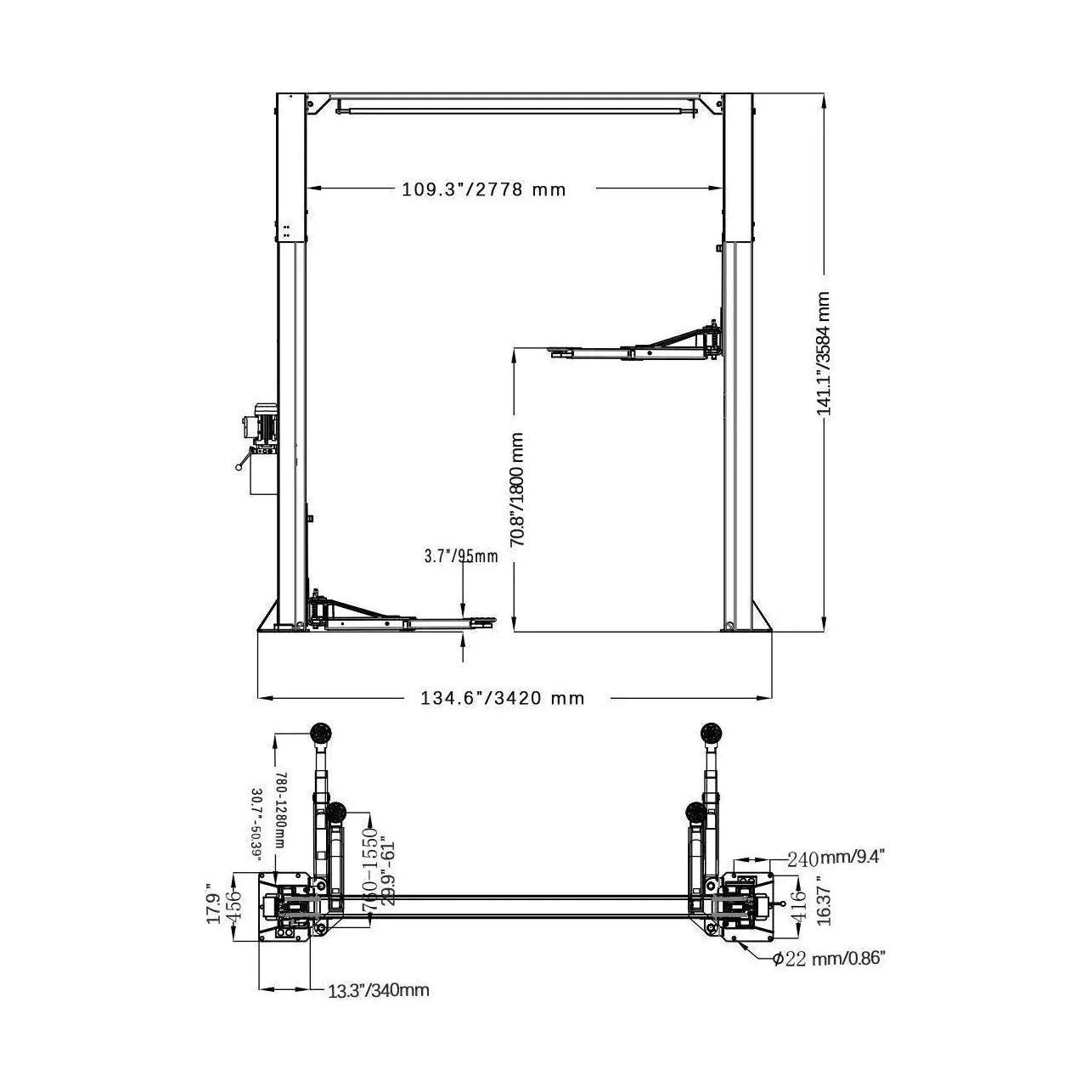

Specifications
Lifting Capacity
11000 lbs. (4990KG )
Max. Lifting Height
70.75″ / 1800mm
Min. Height
3.74″ / 95mm
Height Overall
141.25″ / 3587mm
Width Overall
134.65″ / 3420mm
Outside Columns
120.4″ / 3058mm
Inside Columns
109.37″ / 2778mm

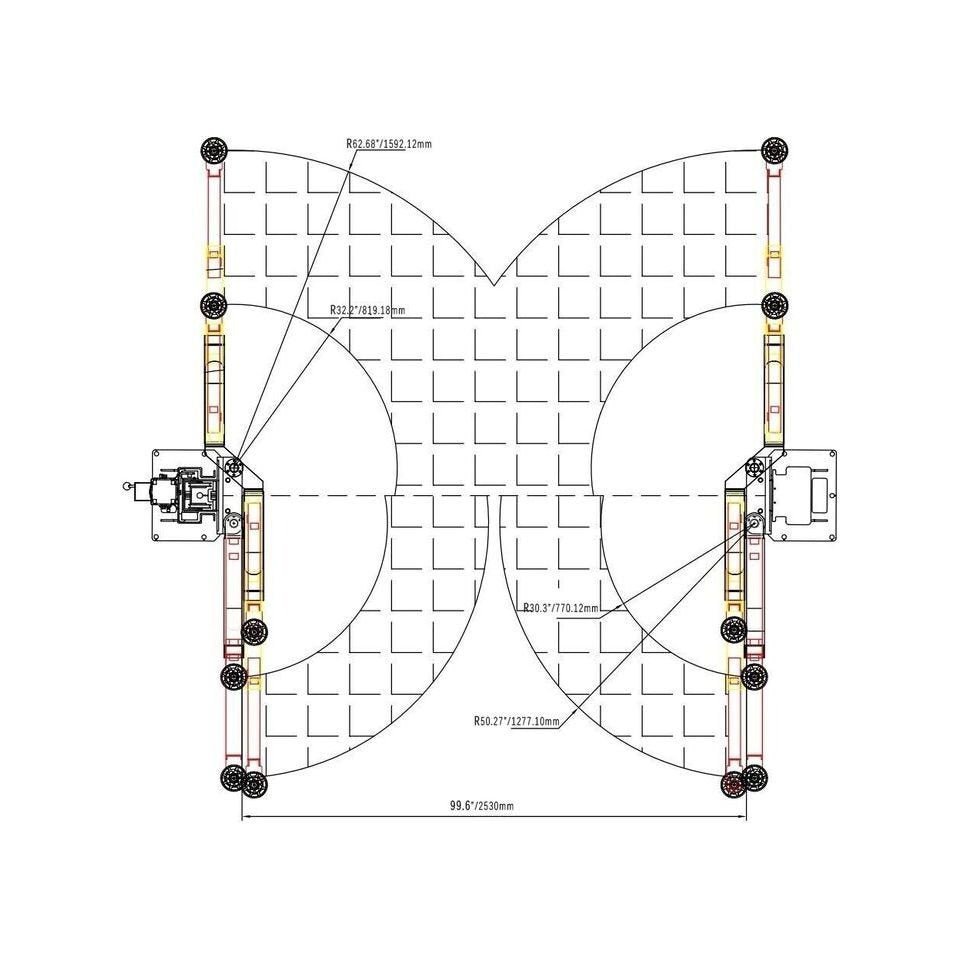

Drive Thru Clearance
99.61″ / 2530mm
Motor
220VAC/60HZ/1PH
Net Weight
1323lbs / 600KG
