Katool Two Post Vehicle Lift 10,000 lbs Lifting Capacity H105
Product Description
KT
-H105 Vehicle Lift
10000lbs
lifting capacity
CE Approved and Certified, it has adopted 115% dynamic loading capacity and 150% static loading capacity tested.
Manual safety release from
two sides
.
Base plate design
Dual Hydraulic
Chain-Drive
Cylinders
Robber pad door opening protection.

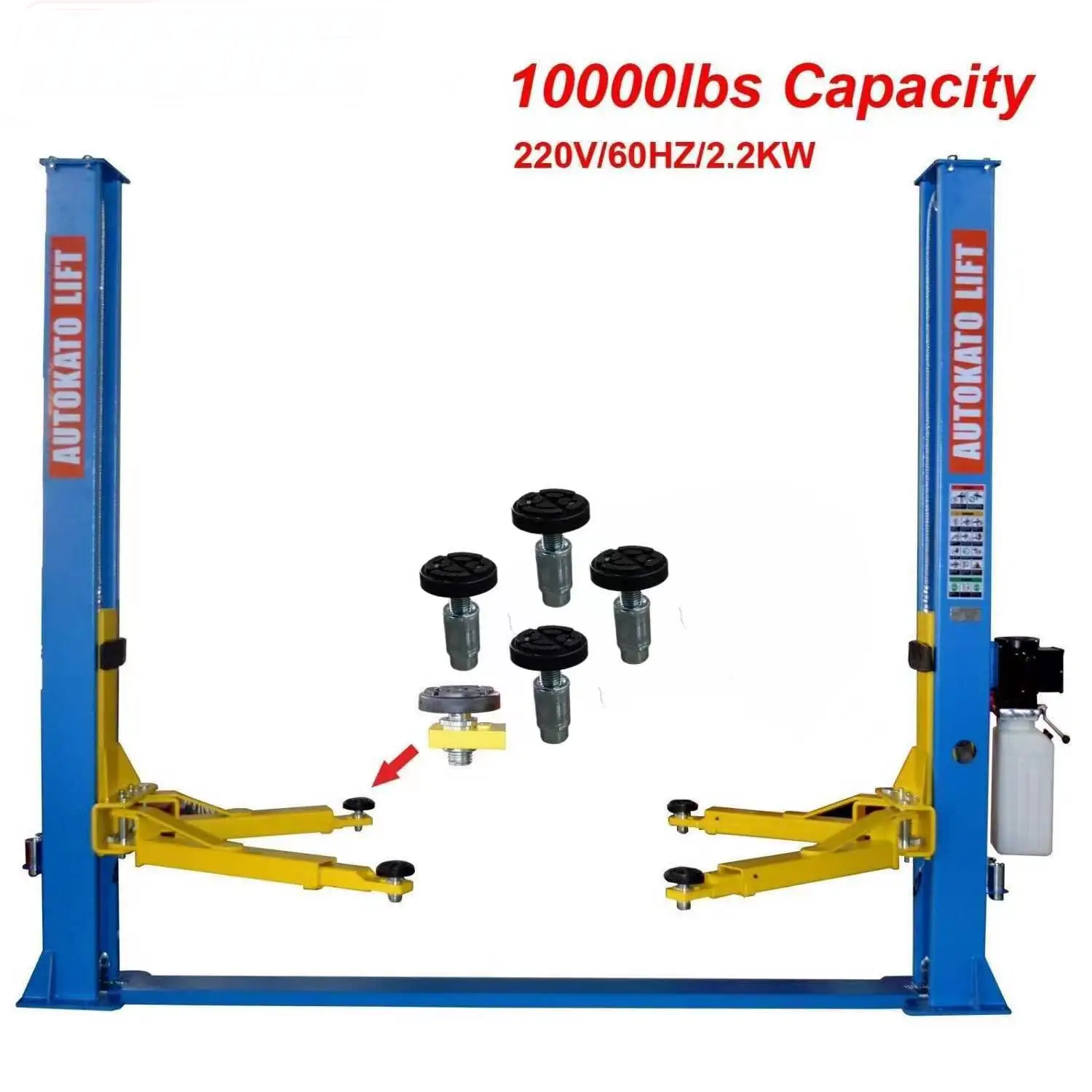

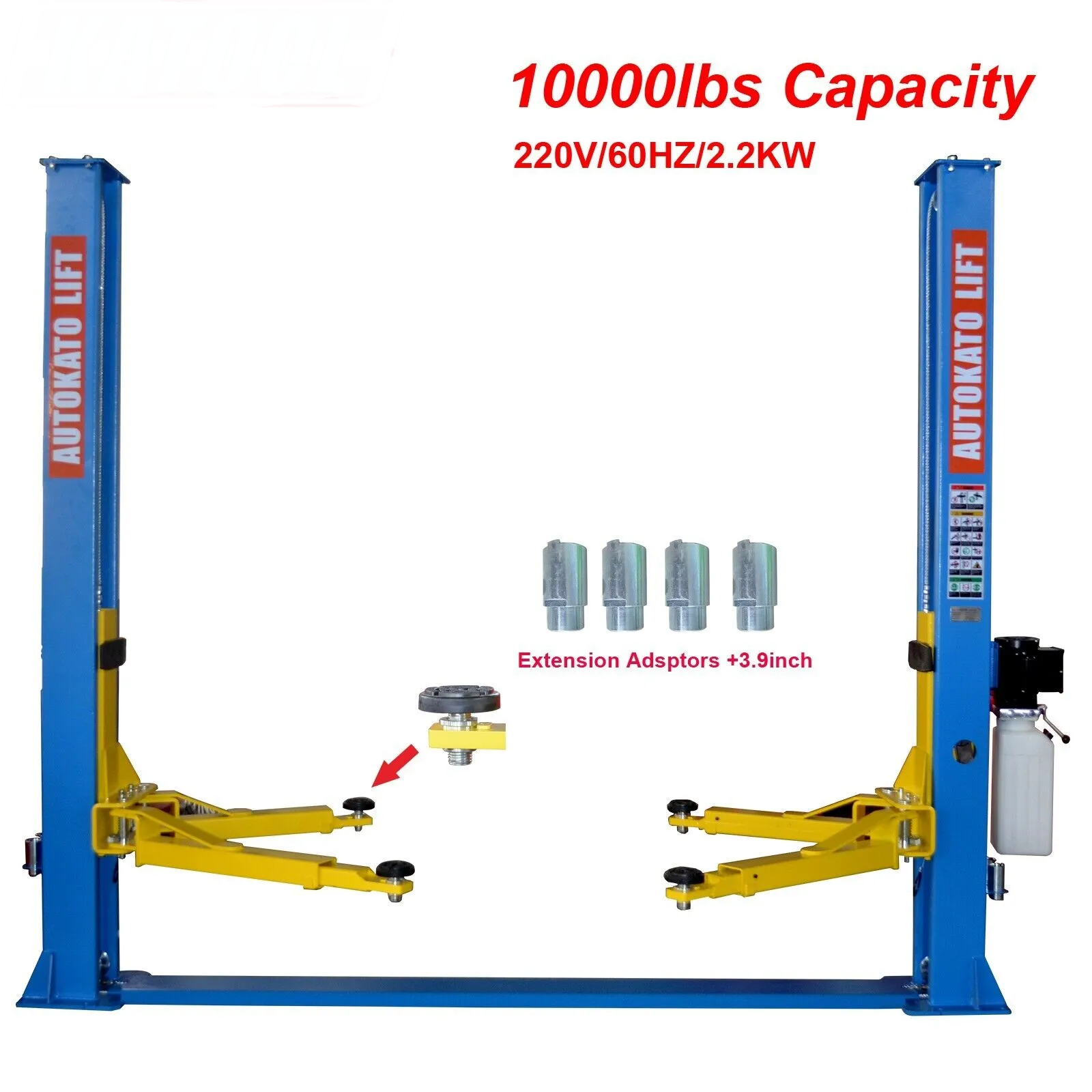

Screw-on pad and extension support
adaptor sets
+100mm
Top-level hydraulic system with 220V/60HZ/1PH
Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.

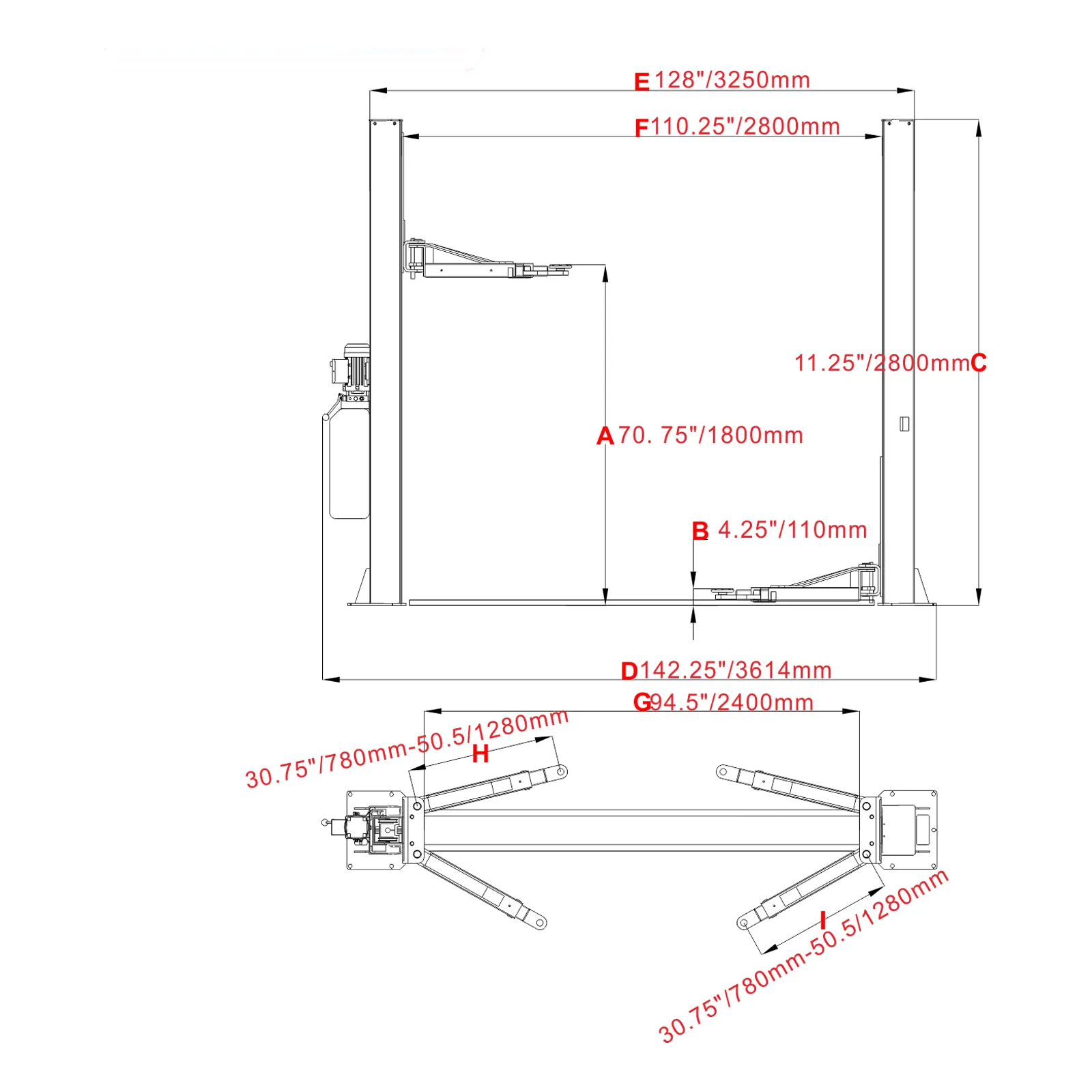

Specifications
10000lbs.(4500KG)
Max. Lifting Height
70.8″/1800mm
Min. Height
3.9″/100mm
Height Overall
110.9″/2818mm
Width Overall
140.4″/3565mm
Outside Column
124.8″/3170mm
Inside Column
110.2″/2800mm
Dirve-Thru Clearance
98.4″/2500mm
Front Arm Reach(Min)
29.5″/750mm(2 stages)
Front Arm Reach (Max)
46″/1170mm(2 stages)
Rear Arm Reach(Min)
35.4″/900mm(2 stages)
Rear Arm Reach(Max)
58.2″/1480mm(2 stages)
Motor
220VAC/60HZ/1PH/2.2KW
Net Weight
570KG
