Features & Specifications:
Popular stylish design
Powerful 196cc 6.5HP OHV engine
Electric start with pull start backup, can start without battery
Fully automatic with reverse
Torque converter CVT system, more low-end torque
Canopy top
Manual choke operating from dashboard
LED headlight
Horn
All-wheel fenders
Big tires: F / R: 16×6-8 / 16×7-8
Rack and pinion steering wheel
Hydraulic disc brake
Padding over roll cage

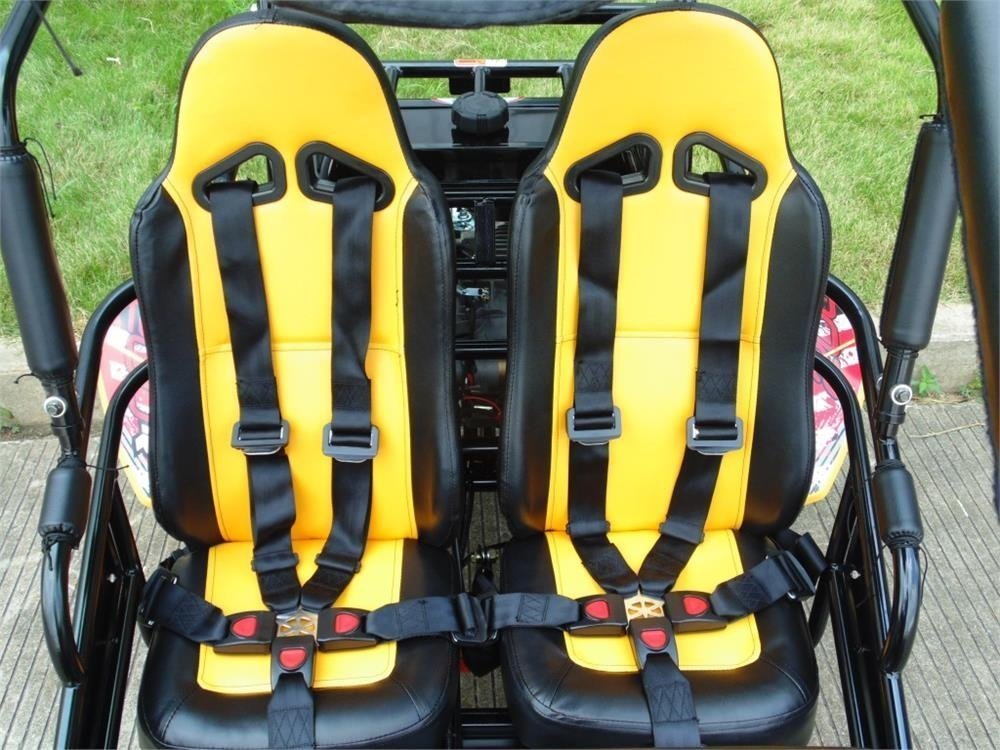

Individual sporting seats
Adjustable driver seat: pedal to seat back adjustable from 34” to 39”
Easy assembly: put roll cages together, service battery, fill gas and go
EPA certificated
Engine type: 4-stroke, single cylinder, air cooled
Displacement: 200cc
Max HP: 6.3hp/3600rpm
Max torque: 9.6 lb ft/2500rpm
Bore x stroke: 2.6 x 2.1 inches
Max speed: 31mph
Climbing ability: 12 degrees
Ignition: C.D.I
Starting system: Electric / Pull backup
Battery: 12V 9Ah
Carburetor brand: JF (RX)
Engine oil: SG15W-40
Clutch: Automatic CVT with reverse
Driveline / Driving wheel: Chain / Dual wheel drive
Suspension, F / R: Double A-arm / Double Oil Damped Shock
Brakes, F / R: No / Hydraulic brake, Disc
Tires, F / R: 16×6-8 / 16×7-8
Fuel capacity: 1 gal
Weight, G.W. / N.W.: 386 / 330 lbs
Max load: 400 lbs
Wheelbase: 48.4 inches
OA L x W x H: 67×43.3×51.2 inches
Height to seat: 10.2 inches
Min ground clearance: 2.8 inches
Pedal to seat back distance: 34-39 inches
