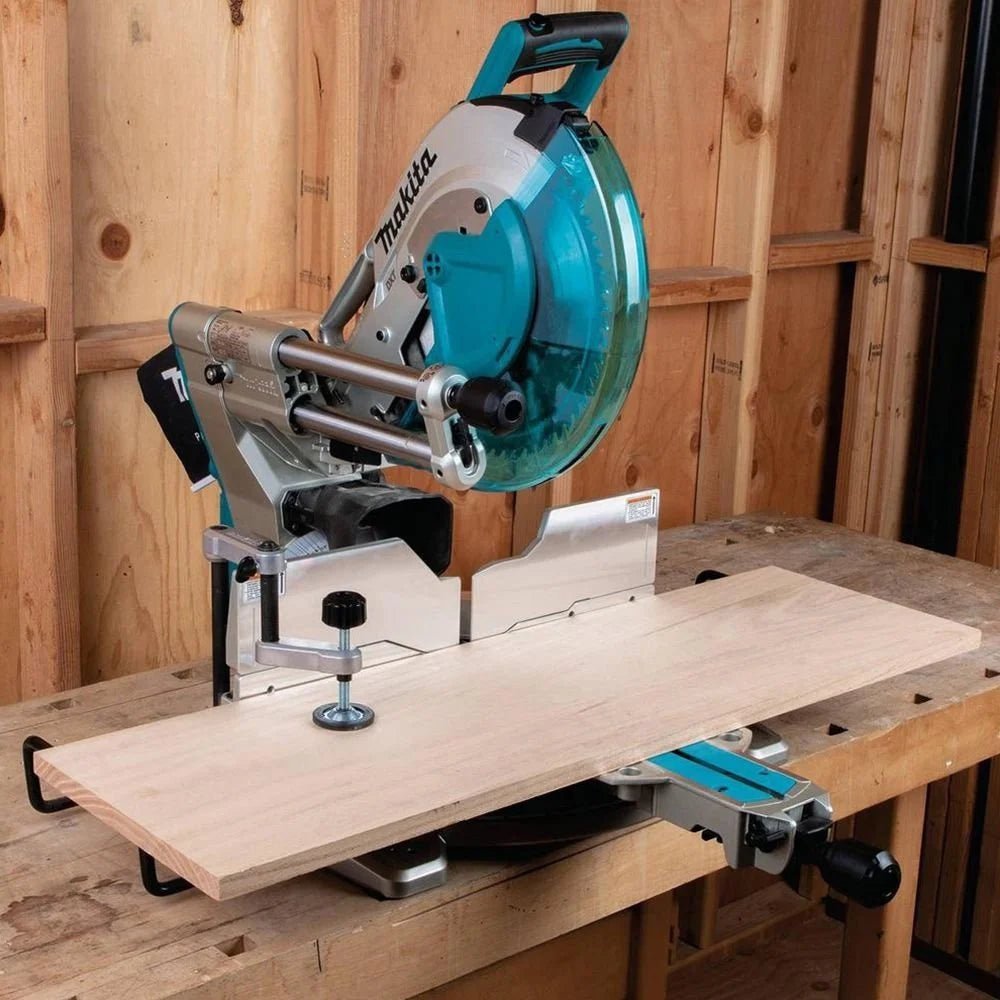

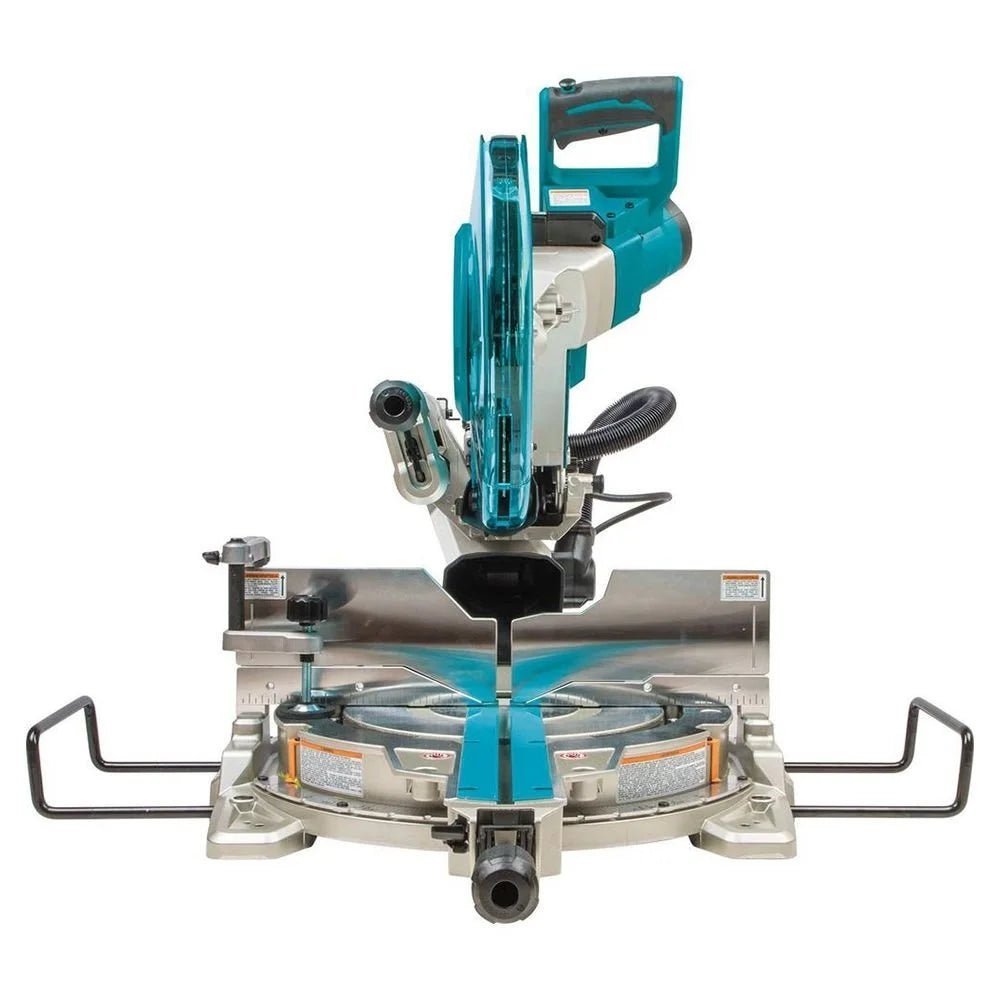

The Makita 12″ dual-bevel sliding compound miter saw with laser (model LS1219L) combines capacity, accuracy and efficient dust extraction in a more compact size, with a unique 2-steel rail sliding system that offers a reduced footprint for operation flush against a wall. The innovative direct-drive gearbox and guard system is engineered for increased vertical cutting capacity of baseboard (6-3/4″) and crown molding (8″ nested). It will also make 15″ crosscuts at 90 degrees. The bevel lock is located in the front of the saw for easy access and quick adjustments from 0 degree to 48 degree (left and right). The saw is powered by a 15 amperage direct drive motor with soft start, a key point of difference. Direct drive enables smoother start-ups and consistent, constant power with no belts to slip or replace. The electric brake provides added convenience. In addition, the electronic speed control maintains constant speed under load for smoother, higher-quality cutting. Additional features include a high-quality 60T carbide-tipped blade, and a see-through blade guard system for greater visibility of the blade and line-of-cut. The built-in laser indicates the line-of-cut whether the blade is turning or not, and offers micro-adjustments for precise “left-of-blade” or “right-of-blade” cutting. It has dual dust collection ports for improved dust collection capability for use with a bag (included) or vacuum (sold separately). It also has a large-sized aluminum base that improves the stability of cutting stock for more efficient cutting.
Features
In-front bevel lock for convenient operation

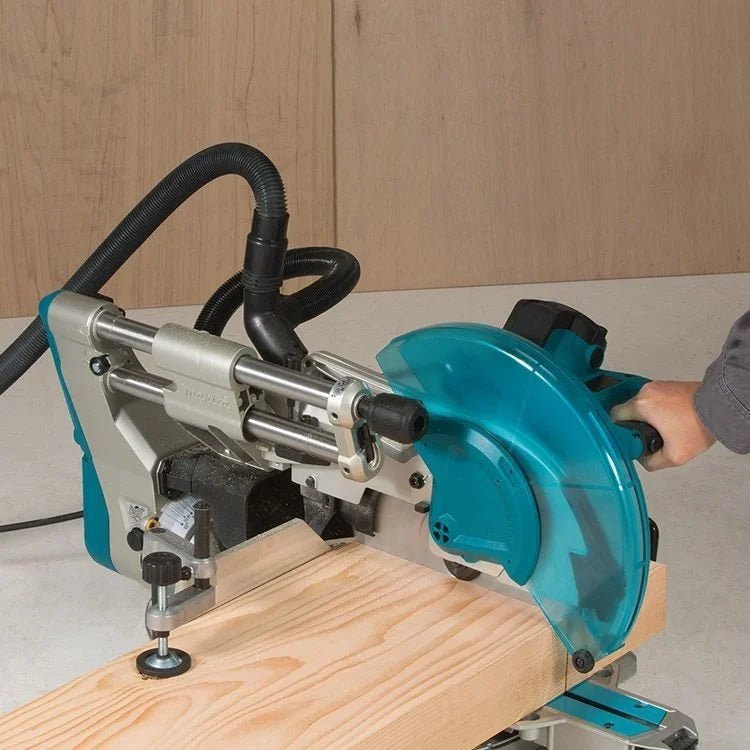

Dual dust collection ports provide excellent dust extraction performance

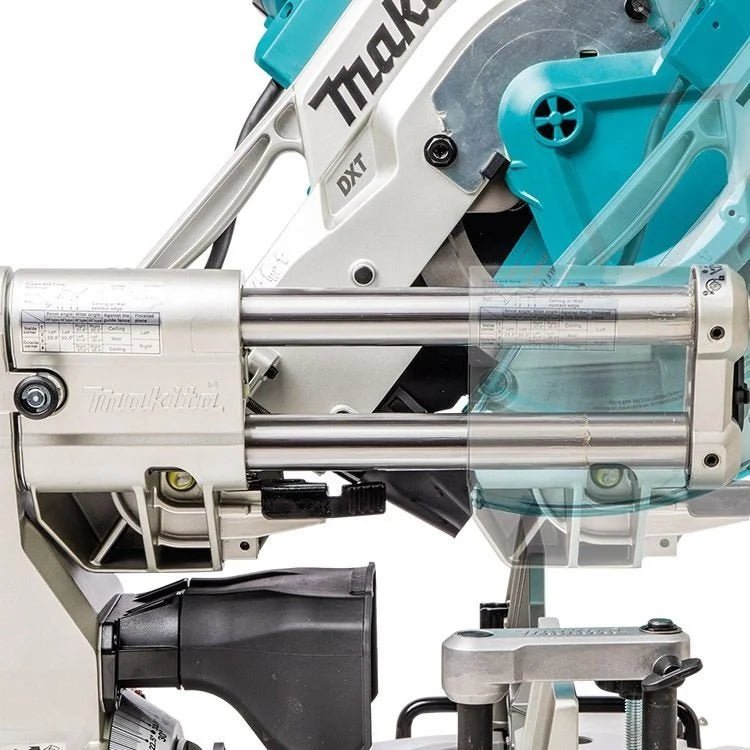

Linear ball bearing system engineered to deliver “dead-on” accurate cuts
Ergonomic rubberized horizontal D-handle design for better fit and added comfort

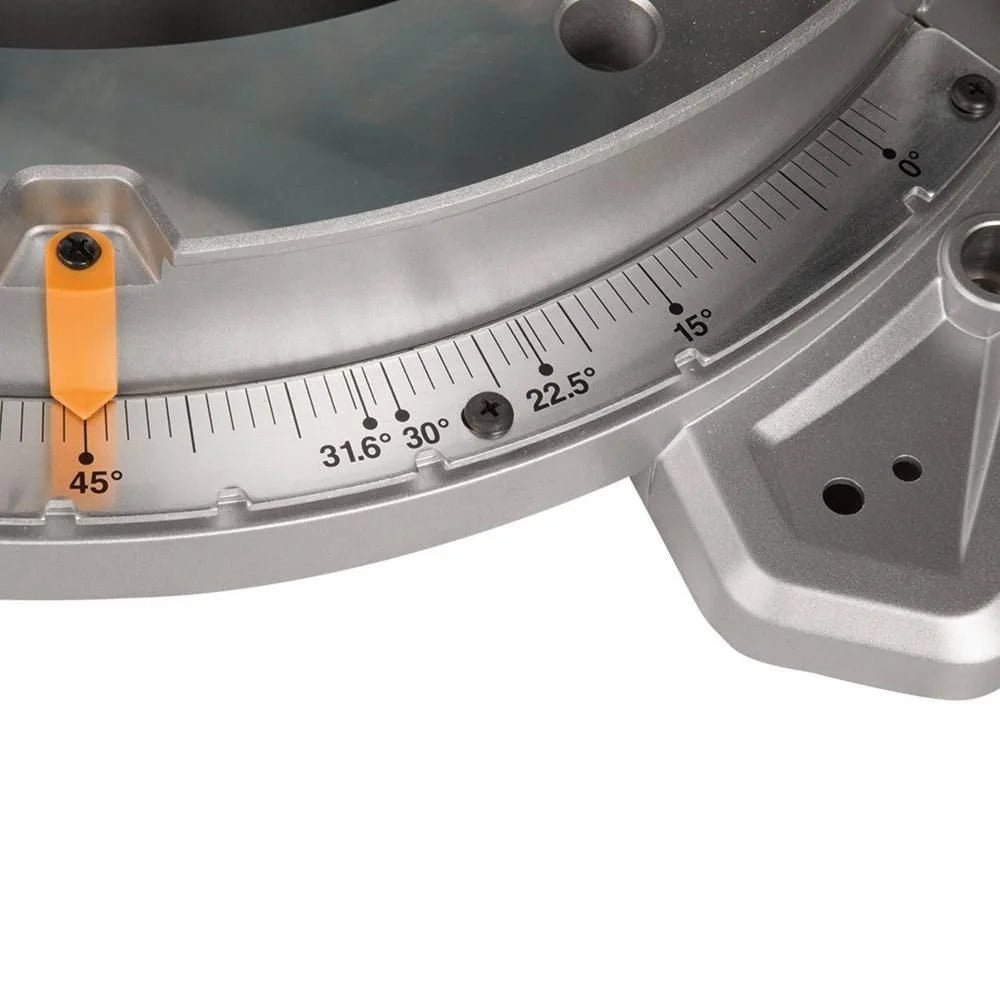

Replaceable stainless steel miter scale features large and easy-to-read markings
Easy-to-read dual bevel scale for more precise adjustments
See-through blade guard system for greater visibility of blade and line of cut
Easy blade changes for increased efficiency
Oversized trigger switch for better fit, added comfort and easier operation
Easy one-touch slide lock for convenience
Simple 90 degree turn-of-the-knob miter angle lock and unlock mechanism
Laser type – Wavelength 655 nm, Maximum output 1mW (Laser Class II)
Reviews
There are no reviews yet.
