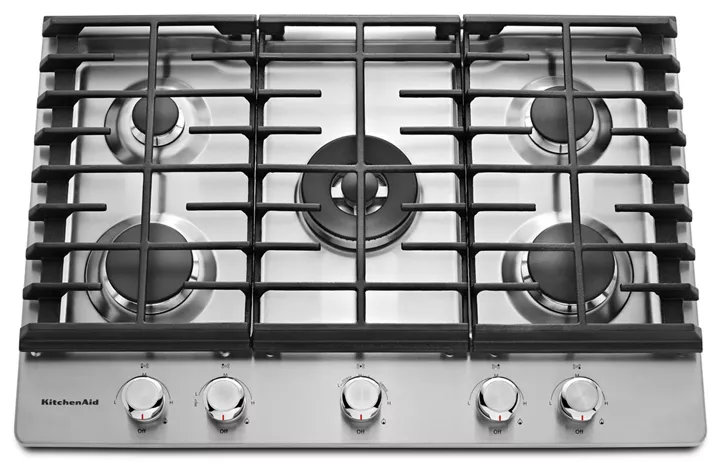

30″ 5-Burner Gas Cooktop
This 30-inch gas cooktop provides exceptional power with five individual burners, including a powerful 17,000 BTU Dual Ring Burner. For added versatility, the 6,000 BTU Even-Heat™ Simmer Burner creates ideal conditions to melt without scorching. The CookShield Finish protects the cooktop against stains that may occur due to high-temperature cooking and makes it easy to wipe clean without harsh chemicals.
Exterior Details
Knob Color
Stainless Steel
Knob Type
Metal
Cooktop Details
Combination Match with Oven
KOES527P, KOES530P, KOSC104FSS, KOSC504, KOSE500, KOSE507, KOSE900, KOST100, KOST107
Cooktop Surface Color
Color Coordinated
Cooktop Surface Material
Griddle Included
Optional Accessory
Heating Element On Indicator Light
No
Hot Surface Indicator Light
Ignition Type
Direct Spark Ignition
Installs Over Built-In Oven
Yes
Dimensions
Common Size
30 in
Cutout Depth
19-813/1000 in
Cutout Depth Max
20 in
Cutout Height
5-1/4 in
Cutout Width
28-7/8 in
Depth
21 in
Gross Weight
59-3/5 lbs
Height
3-1/16 in
Maximum Height
4-579/10000 in
Net Weight
53-3/5 lbs
Width
Element/Burner Details
Automatic Pan Detection
Automatic Pan Size Adjustment
Center Element Burner Power
17,000 BTU
Center Element Burner Type
Even Heat Dual
Center Rear Element-Burner Power
Center Rear Element-Burner Type
Professional Dual Tier
Cooktop Type
Standard
Left Front Element-Burner Power
10000 BTU
Left Rear Element-Burner Power
6,000 BTU
Left Rear Element-Burner Type
Simmer
Number of Cooking Element-Burners
5
Number of Grates
3
Power Boost
Right Front Element-Burner Power
10,000 BTU
Right Rear Element-Burner Power
7,000 BTU
Details
Cooktop Configuration
All Burners
Digital Display
Fuel Type
Gas
LP Convertible
Yes – Kit Included
Power Outage Compatible
Ventilation Details
Downdraft Vent
Grate Details
Cast Iron Grates, Continuous, Dishwasher Safe, Matte Finish
Controls
Control Location
Front
Control Type
Knobs
Electrical
Amps
15
Hz
60
Power Cord Included
Volts
120
Features
Cooktop Features
ADA Compliant, Even-Heat Melt Burner
