iDEAL TP10KAC-DX 10,000 Lb 2 Post Lift – Ali Certified Clear Floor BI-symmetrical
Get your 10000 lb 2 post lift for light duty vehicles with an ALI certification. This lift, with a Bi-symmetric design, features a unique design with 3 front 3-stage arms and 180 degree rotation. Allows a single point lock release, combining direct drive cylinders, makes this lift the perfect choice for workshops or garages, if you want to take this lift, buy now and receive it where you want, remember that we are the best mechanic tools store.
Features
10000 pound 2 post car lift
Ali Certified
Bi-Symmetric Arm Design
Rubber Door Guards
3 Stage Front Arms
Direct Drive Pull Cylinders
Single Point Lock Release

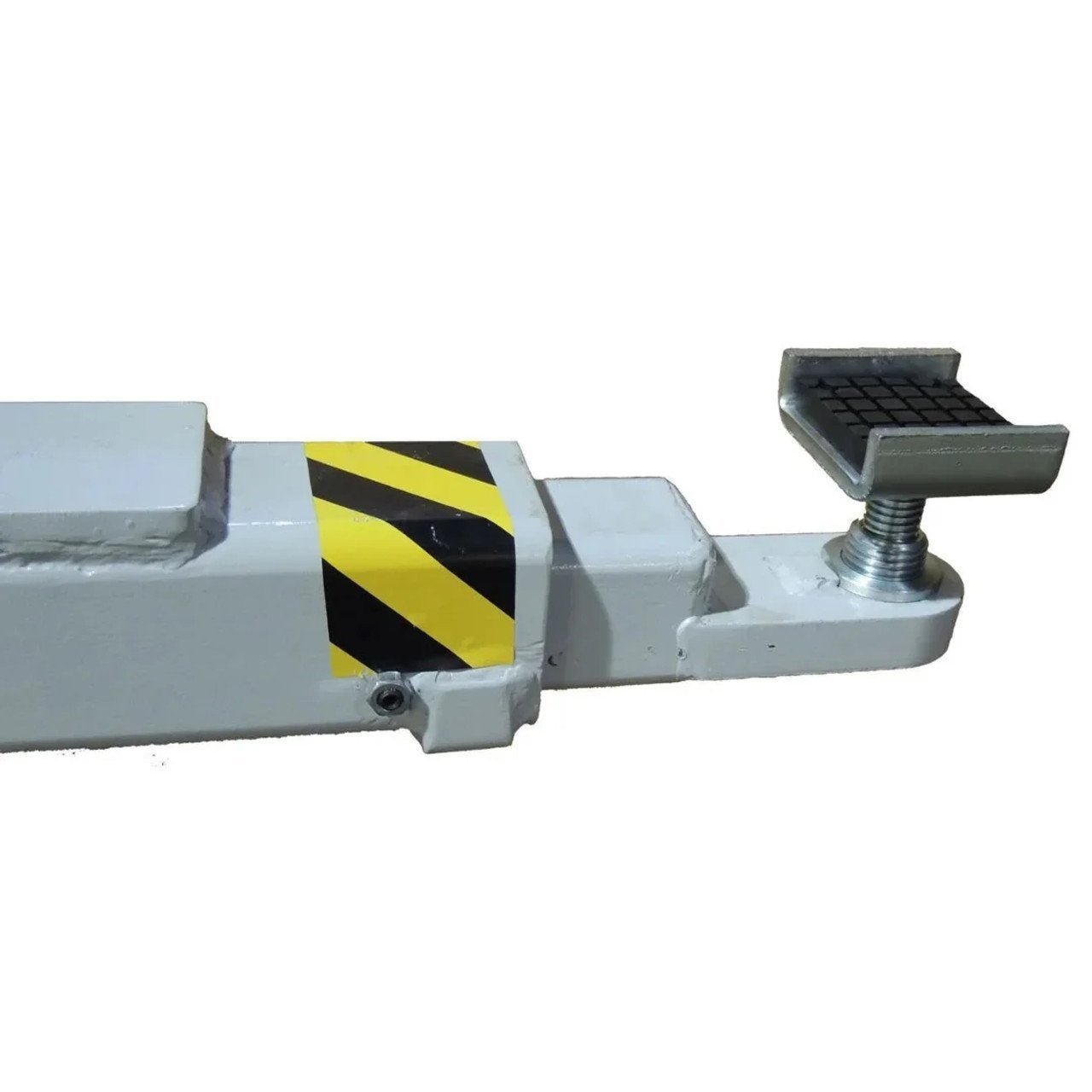

Spin Up Low Profile Lift Pads
Stackable Adapters Included
External Hose Guards
Duro Certified Power Unit
Met, Ul, Csa Listed
Specifications
Lift Model
TP10KAC-DX
Capacity
10,000 lbs.
Height Overall
144″
Width Overall w/ Power Unit
145-1/2″
Max Lift Height
71″
Width Between Columns
116″
Min. Pad Height
4″
Drive Thru Clearance
104″
Lifting Speed
50S
Asymmetric / Symmetric
Bi-Symmetric
Clear Floor / Floor Plate
Clear Floor
Short Arm Reach – min/max
23″-45″
Long Arm Reach – min/max
41″-59″
Narrow Bay Setting
NA
Max Load Per Arm
2,500 lbs
Ship Weight
1,705 lbs
Power
220V – 20 AMP – 1 PH
