Brand
Grizzly Industrial
Color
Multicolor
Blade Material
Steel
Surface Recommendation
Floor
Power Source
Corded Electric
About this item

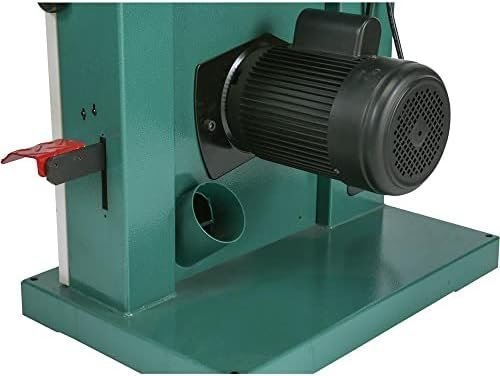

Motor: 2 HP, 220V, single-phase, TEFC capacitor start induction, 60 Hz, prewired to 220V; Amps: 10; RPM: 1725

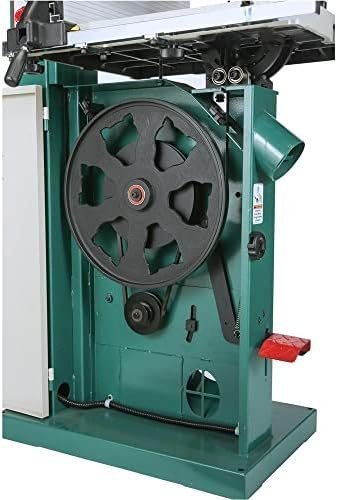

Power transfer: Belt drive; Precision ground cast iron table;

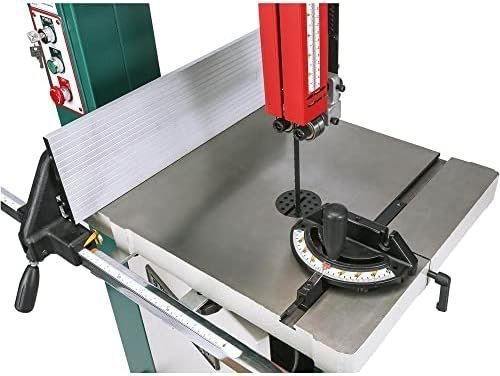

Table size: 23-5/8″ x 17-1/4″ x 1-1/2″ thick; Table tilt: 5� left, 45� right; Floor to table height: 37-1/2″; Overall size: 73″ H x 32″ W x 32″ D
Cutting capacity/throat: 16-1/4″ left of blade; Maximum cutting height: 12″; Blade size: 131-1/2″ long; 2 blade speeds: 1700 & 3500 FPM

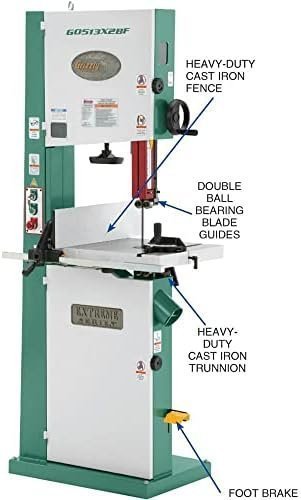

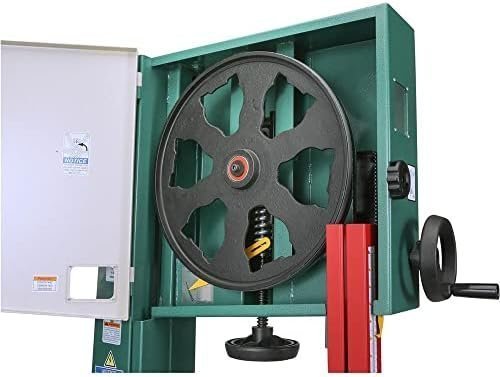

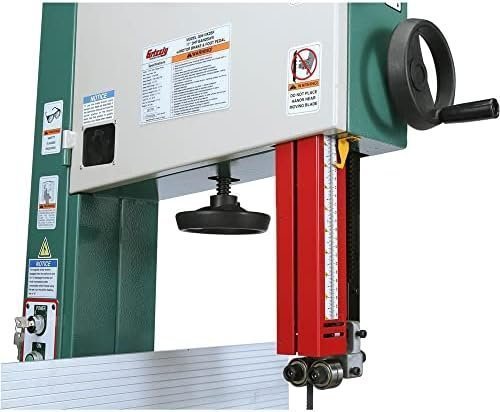

Wheels: fully balanced cast iron with polyurethane tires; Wheel covers: pre-formed steel; Blade guides: ball bearing with full enclosure protection; Bearings: sealed and permanently lubricated
