1. Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.
2. Optimum overall efficiency at a specific burn rate (LHV).
3. This appliance is officially tested and certified by an independent agency.
4. The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.
5. As measured per CSA B415.1-10 stack loss method.
6. Higher Heating Value of the fuel.
7. Lower Heating Value of the fuel.
8. The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the solid fuels into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.
9. Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
10. Carbon monoxyde.
Specifications
Fuel type
Dry cordwood (16″ recommended)
Heating area
(9)
500 – 1,800 ft²
Overall firebox volume
1.86 ft³
EPA loading volume
1.44 ft³
Maximum burn time
7 h
Maximum heat output-dry cordwood
(4)
65,000 BTU/h (19 kW)
Minimum overall heat output rate
(5)
9,800 BTU/h (2.87 kW)
Maximum overall heat output rate
52,200 BTU/h (15.3 kW)
Average overall efficiency-dry cordwood (HHV)
(6)
68 %
Average overall efficiency-dry cordwood (LHV)
(7)
73 %
Optimum efficiency
(1)
(2)
76 %
Optimum heat transfer efficiency
(8)
75 %
Average particulate emission rate
(3)
2.4 g/h
Average CO
(10)
103 g/h
Size
Medium
Premium quality blower included (CFM)
144 CFM included
Certified according to applicable standards
By an accredited laboratory (CAN/USA)
Combustion technology
Non-catalytic
Stainless-steel secondary-air system
Yes

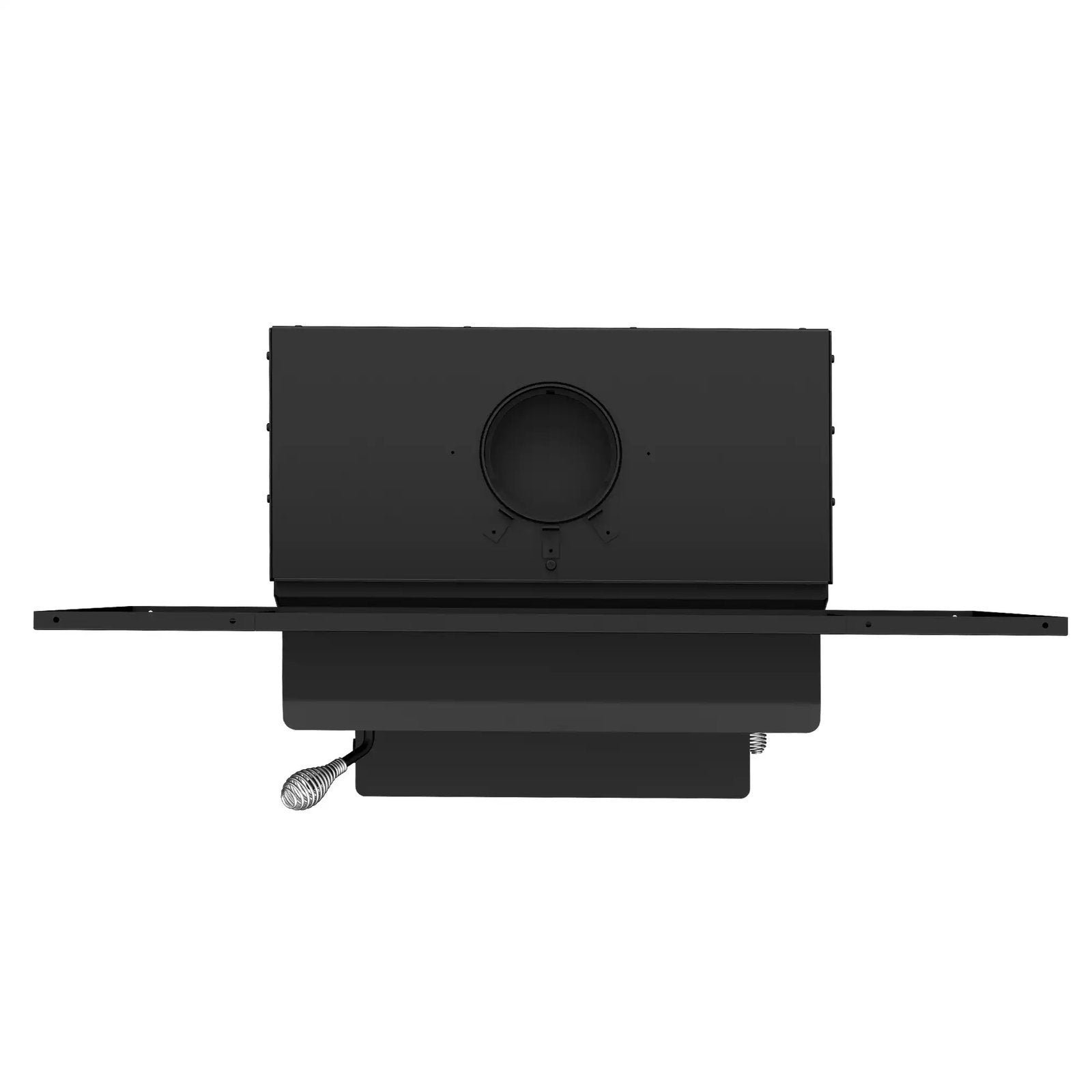

Flue outlet diameter
6″
Distance-center of the flue outlet to back unit
5 3/4″
Distance-center of the flue outlet to side unit
12 3/4″
Recommended chimney diameter
Type of chimney
Liner – ULC-S635, CAN/ULC-S640, UL1777
Minimum chimney height
12′
Overall dimension (Width)
27 1/4″
Overall dimension (Height)
21 1/4″
Overall dimension (Depth)
22 3/8″
Door type
Single, glass with cast iron frame
Door opening size (Width)
17 1/4″
Door opening size (Height)
8 3/4″
Glass type
Ceramic glass
Glass surface – W x H
15 3/4″ x 9 3/4″
Steel thickness-body
3/16″
Steel thickness-top
5/16″
Firebox size (Width)
19 5/8″
Firebox size (Height)
11 7/8″
Firebox size (Depth)
13 1/2″
Maximum log length
18″
Log positioning
Loading over width
Firebox lined with refractory bricks
Baffle type
High quality vermiculite
Minimum fireplace opening (Width)
27 1/2″
Minimum fireplace opening (Height)
21 1/2″
Minimum fireplace opening (Depth)
High-efficiency certified appliance
Yes, EPA 2020 approved
Canadian Standard (emissions)
CSA B415.1-10
USA Standard (emissions)
EPA
Canadian Standard (safety)
ULC S628
USA Standard (safety)
UL 1482, UL 737
Warranty
Limited lifetime
Shipping weight
360 lb (163 kg)
EPA-2020
Clearances to combustibles*
Canada
USA
Clearance – Base of the unit to ceiling**
84″84″
Clearance – Combustible side mantle to unit
9″9″
Clearance – Combustible top mantle to unit
27″27″
Clearance – Combustible side wall to unit
16″16″
Clearance – Top of the unit to a 12″ combustible mantle shelf
