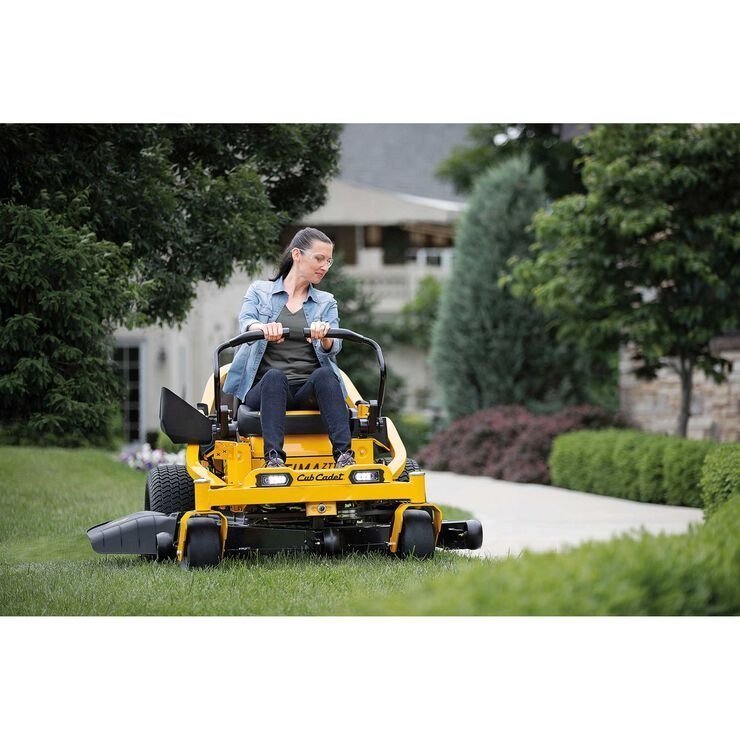

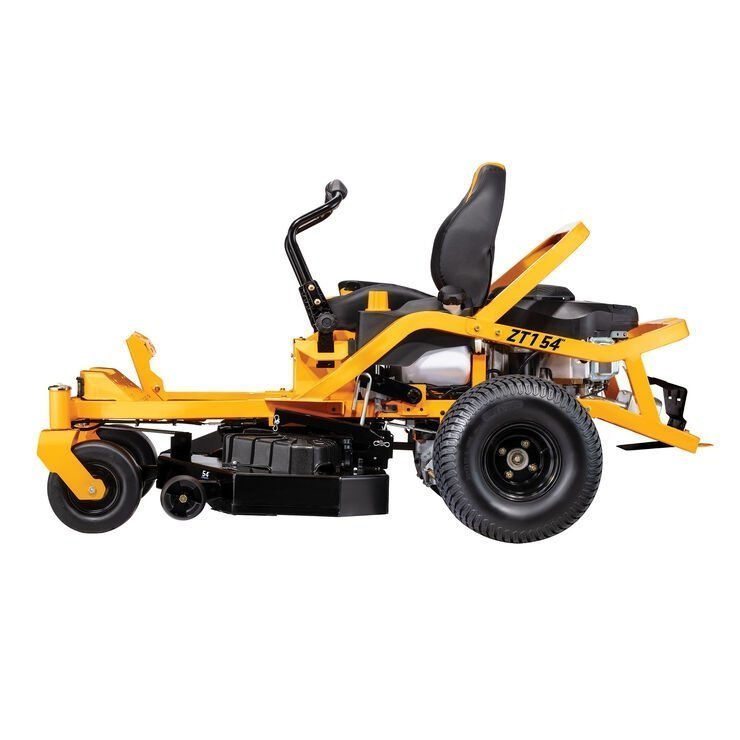

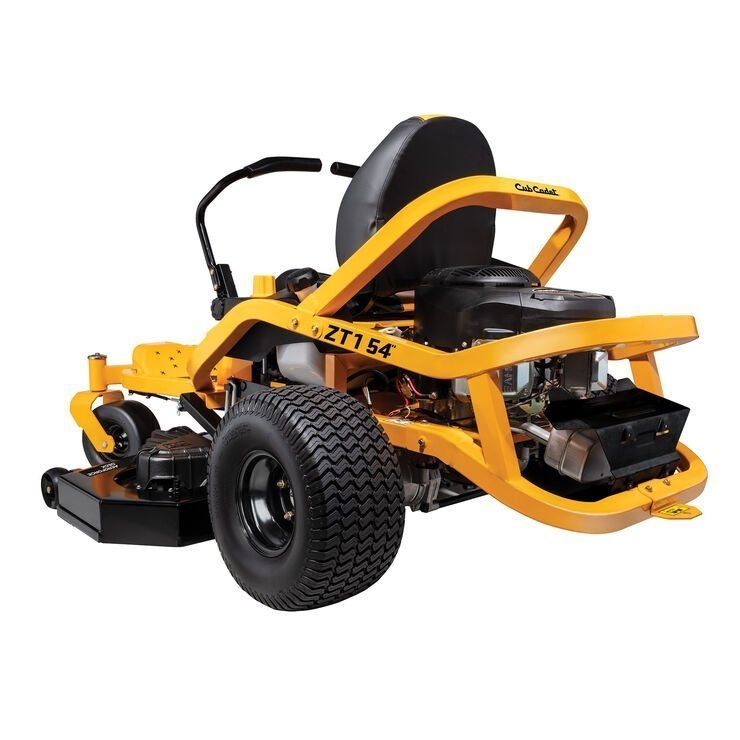

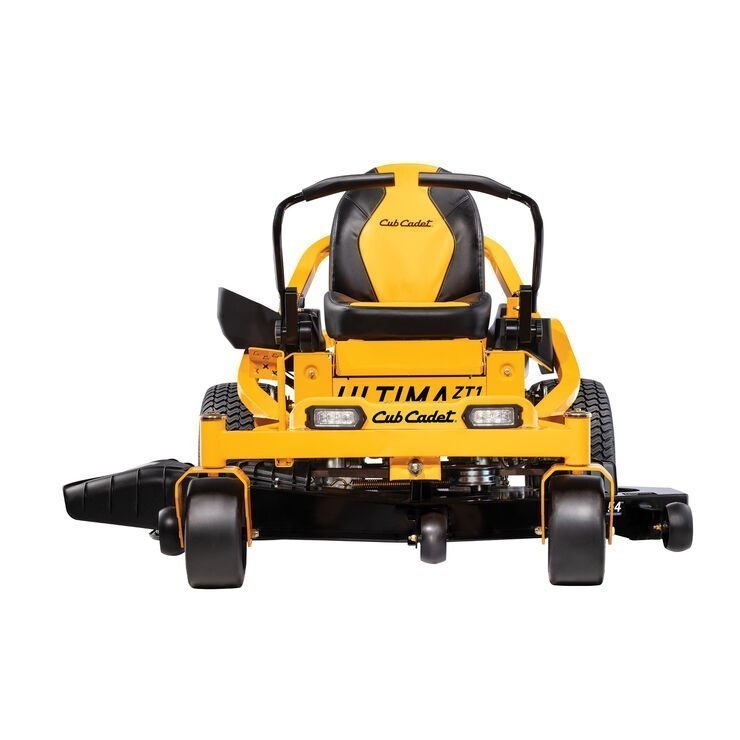

The Cub Cadet® Ultima Series ZT1 54 is a 54-inch zero-turn lawn mower with a 24 HP engine and an AeroForce™ fabricated deck. It is designed to provide a high-quality cut with few clumps and an even finish. The mower features dual hydrostatic transmissions for quick ground speeds, giving your yard a professional look. Its strong tubular steel frame has a fully e-coated corrosion defense system to protect against wear and tear.
A 24HP*/747cc Kohler 7000 Series V-Twin OHV Engine, OHV engine delivers high-performance power and exceptionally smooth, quiet operation
Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish
54-in. AeroForce fabricated deck that delivers a signature cut with fewer clumps and stragglers, finer clippings and increased evenness
Engine
Engine BrandKohler®
Engine Model7000 Series
Engine Model NumberKT724
Engine Displacement747cc
Engine Output24HP
Starter TypeElectric
Fuel Tank Capacity3.5 gal. US (13.25 L)
CylindersTwin
Engine StartIgnition Key
Engine Oil Capacity2.0 qt. US (1.89 L)
LubricationFully pressurized
Charging System12 amp regulated
Fuel GaugeNo
GovernorMechanical
ChokeSeparate Choke
Air FilterDual element
Oil FilterYes
Fuel DeliveryCarburetor
Battery
Battery210 CCA
Battery TypeAGM (Absorbent Glass Mat)
Battery Voltage12V
Drive System
TransmissionHydro-Gear EZT 2200
Forward Speed7 MPH / 11.3 km/h
Reverse Speed3.5 MPH / 5.6 km/h
Drive SystemHydrostatic
Cutting Deck
Deck Cutting Width54 in
Deck WashNo
Deck Material11-gauge steel
Deck Engagement (PTO)Electric
Deck ConstructionFabricated
Blade(s)3
Deck LiftFoot pedal with Dial Adjust
Cutting Height Range1” – 4.5”
Anti-Scalping3 gauge wheels
Deck Positions15
Chassis
Frame2” x 2” tubular steel
Turning Radius0°
ROPSNo
Rear Tow HitchYes
Corrosion ProtectionYes
Controls
Cruise ControlNo
BrakesDisc
Steering ControlLap Bars
Comfort
Seat Type20″ high back
ArmrestsNo
Seat AdjustmentKnob
Front Caster SuspensionNo
Wheels
Rear Tires20”x 10”- 8”
Front Tires11″x 6″-5″
Tire TreadTurf Master / Multi Trac
Specifications
SeriesUltima Series™ ZT
Additional Specifications
Hour MeterAvailable Separately
Mulch KitAvailable separately
Headlight(s)Dual-LED
Cup HolderYes
Operator Presence SystemYes
Parking BrakeLap Bar Integrated
Model Number17AREACM010
