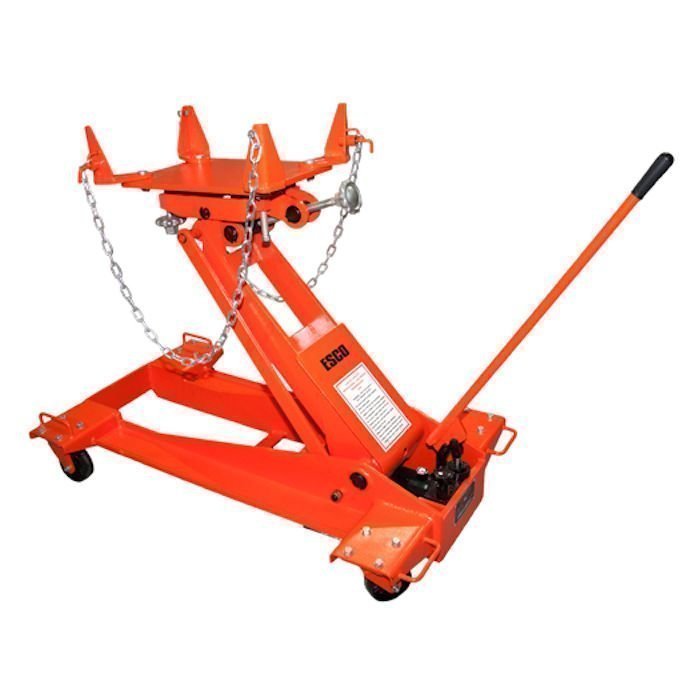

The Yellow Jackit 2.2 Ton (4,400 lbs.) Transmission Jack is designed with heavy duty lifting in mind. Designed with maximum strength steel and a hefty weight capacity of 2.2 Tons (4,400 lbs.). The units also come with swiveling casters to make it easier to roll across concrete garage floors; making it easier on the technician when removing/installing the transmission. This product is designed for Heavy Duty Truck, Commercial Truck, Bus, Agricultural, Construction equipment and machinery.
Features
- Hydraulic System is protected with safety overload system
- Wide chassis design provides maximum stability
- Fully adjustable universal saddle, brackets and chain sling
- Four 4″ swivel casters help move jack easily
- 360 degree rotatable pump handle for operation in any position
- Easy access to relief valve to lower the jack
- Sealed hydraulic unit prevents contamination
Specifications
- Lifting Capacity: 2.2 Ton (4,400 lbs.)
- Min. Height: 8 1/2″ (216 mm)
- Max. Height: 34″ (864 mm)
- Forward Tilt: 15 Degrees
- Rear Tilt: 30 Degrees
- Lift Tilt: 12 Degrees
- Right Tilt: 12 Degrees
- Head Width: 12″ – 18″ (305 mm – 457 mm)
- Head Length: 16″ – 20″ (406 mm – 508 mm)
- Width: 26″ (660 mm)
- Length: 43″ (1092 mm)
- Weight: 355 lbs. (161 kg)
