- 11,000 lbs Capacity
- Bi-Symmetric arm design
- Rubber Door Guards

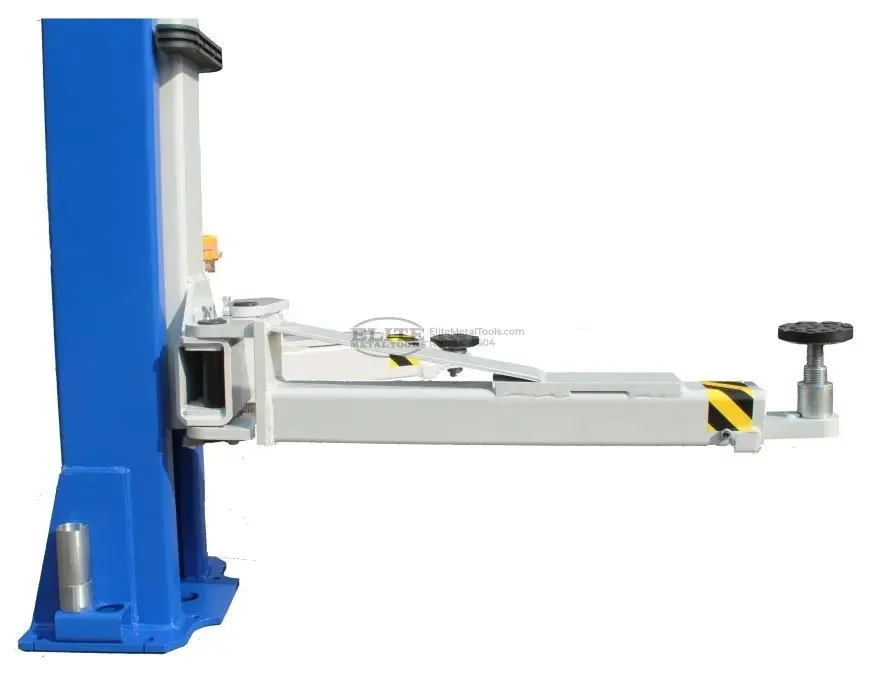

- 3 Stage Front Arms
- Single Piece Column
- Direct Drive pull Cylinders
- Single Point Lock Release
- Heavy Duty Arm Restraint System
- Spin Up Low Profile Lift Pads
- Stackable Adapters Included
- External hose guards
Specifications
- Lift Model: TP11KC-DX
- Capacity: 11,000 lbs.
- Height Overall: 144″
- Width Overall w/ Power Unit: 145-1/2″
- Max Lift Height: 71″
- Width Between Columns: 116″
- Min. Pad Height: 4″
- Drive Thru Clearance: 104″
- Lifting Speed: 50S
- Asymmetric / Symmetric: Asymmetric/Symmetric
- Clear Floor / Floor Plate: Clear Floor
- Short Arm Reach – min/max: 23″ – 45″
- Long Arm Reach – min/max: 41″ – 57″
- Narrow Bay Setting: NA
- Max Load Per Arm: 2,750 lbs.
- Ship Weight: 1,705 lbs
- Power: 220V – 20 AMP – 1 PH
