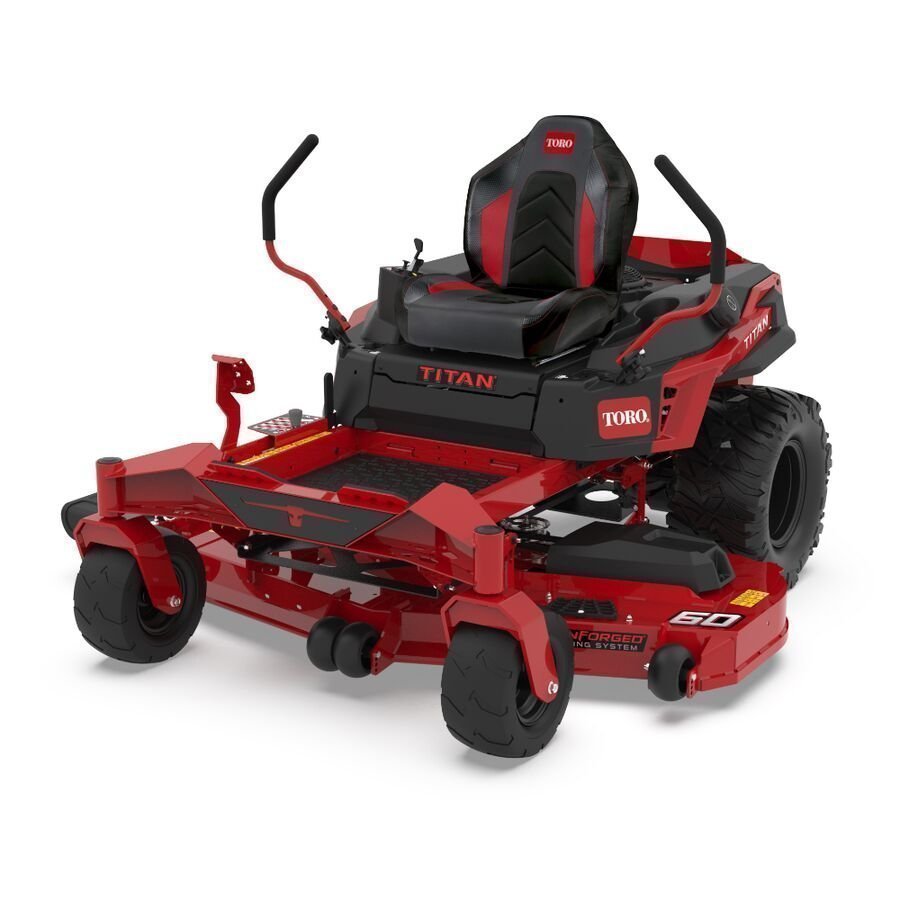

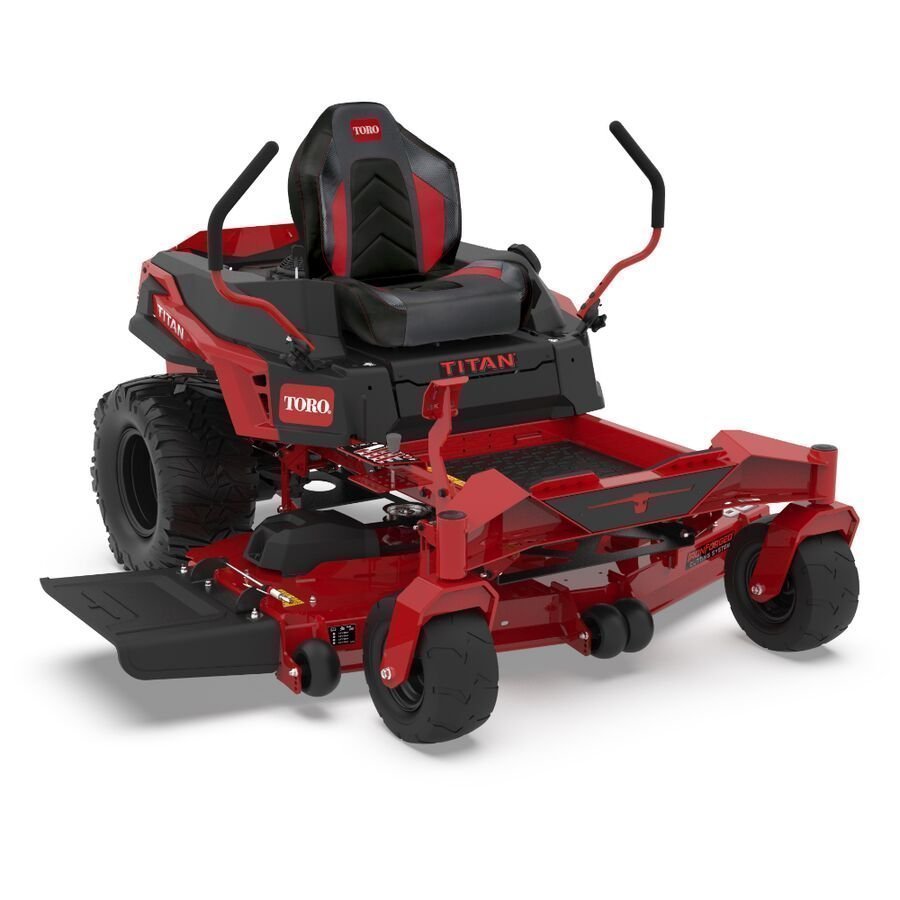

Toro 76605 TITAN Z-Turn Mower 24hp Kawasaki V-Twin w/60″ Fabricated Deck
- The rubber discharge chute flexes without busting up your landscaping or your ride.
- Its heavy duty steel IronForged® Deck doesn’t flinch no matter what you throw its way.
- Massive 22″ rear tires feature aggressive treads meant to bring Mother Nature to her knees.
- Treaded front casters dial the attitude up to 11, making this one mighty-looking machine.
- The gaming-style seat gives you big time support exactly where you need it.
- Built with a commercial-style I-beam front end for extreme durability and strength.
- Spray blocking fenders keep tire spray off your engine, and more importantly, you.
- Its gigantic engine delivers mega power so you can absolutely dominate nature’s worst.
- A cast aluminum stomp pad helps you scrape your boots, get your grip, step up and let ‘er rip.
- The same drop pin height of cut used by the pros. So you can adjust to the perfect height, quickly.
- Download the MyToro app from your mobile device’s app store for easy access to product resources, including manuals, how-to’s, and more
Specifications
| Air Filter | Kawasaki Standard Air Cleaner |
|---|---|
| Anti Scalp Wheels | 4 Standard |
| Armrests | Optional |
| Blade Design | 0.164 in. / 0.417 cm Steel with Blade Stiffner |
| Blade Tip Speed | 18,908 ft/min / 5,763 m/min |
| Box Dimensions | 91 in. x 70.3 in. x 52 in. / 178.6 cm x 132.1 cm x 231.1 cm |
| CARB Compliant | Not CARB Compliant |
| Carrier Frame | 3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel |
| Caster Tires | 13 in. x 6.5 in. – 6 in. (33 cm x 16.5 cm – 15.2 cm) Pneumatic |
| Clutch | Electromagnetic |
| Comfort Platform | Standard Suspension |
| Cooling System | Air Cooled |
| Crankshaft | 1″ (25 mm) w/Steel Protector |
| Cup Holder | Standard |
| Deck Design | 10-Gauge Steel IronForged® with Fully Weld Grade 50 Steel Bumper |
| Deck Material | 10 Gauge Steel |
| Deck Size | 60 in / 152 cm |
| Discharge Chute | Rubber |
| Drive System | Hydrostatic |
| Drive Tires | 22 in. x 11 in. (55.8 cm x 27.9 cm) |
| Drive Type | Rear-Wheel Drive |
| Engine | 24 hp Kawasaki FR730 726cc |
| Engine Brand | Kawasaki |
| Engine Displacement (cc) | 726 cc |
| Engine Horsepower | 24.0 hp |
| Engine Power (kW) | 17.9 kW |
| Foot Operated Height of Cut | Standard |
| Forward Ground/Transport Speed | Up to 8.5 mph / 13.6 kph |
| Forward Mowing Speed | Up to 8.5 mph / 13.6 kph |
| Frame | 3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing |
| Front Bumper | Reinforced Bull-Nose |
| Fuel Capacity | 5 gal. / 18.9 L / 20 Qt. |
| Fuel Type | Gasoline |
| Height of Cut | 1.5 – 5.0 in. / 3.8 – 12.7 cm |
| Hitch Bracket | Standard |
| Number of Blades | 3 |
| Product Type | TITAN |
| Product Use | Residential |
| Recommended Oil Type | 10W-30 |
| Roll-Over Protection System (ROPS) | Optional |
| Seat | 20″ Gaming Style |
| Spindle Housing | Cast-Aluminum |
| Start Type | Electric |
| Steering Controls | Twin Lever |
| Steering Dampeners | Standard Dampers |
| Terrain Type | Flat with Obstacles |
| Tires | 13 in. x 6.5 in. (33 cm x 16.5 cm) Front, 22 in. x 11 in. (55.8 cm x 27.9 cm) Rear |
| Transmission | Dual hydrostatic HG ZT2800 |
| Weight | 845 lbs / 383.3 kg |
Disclaimer
*24 HP gross (725 cc) at 3,600 RPM SAE J1940 and SAE J2723, as rated by Kawasaki®. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly lower.
†See retailer for warranty details.
‡Specifications subject to change without notice and without incurring obligation. Products depicted are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments and safety features.
