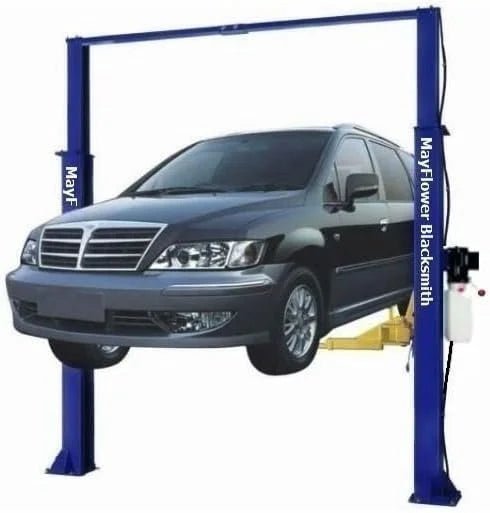

Mayflower Blacksmith Clear Floor Overhead Two Post Lift Car lift CF9000 lb
- Driving Mode: Heavy Duty Two hydraulic cylinders, chain drive
- Voltage: 220 Voltage
- Lifting weight capacity: 9,000 lbs
- Lifting height max: 71″
- Lifting height max with Truck Adapter: 75″
- Overall Height: 146″
- Overall Width: 135″
- Width between Posts: 109″
- Drive Thru Width: 92″
- Lifting Time: 40 sec – 50 sec
- Motor: 220V 60Hz 1 Phase / 3 Horse Power
- Front Arm assembly 2 Stage reach from 28″ to 42″
- Rear Arm assembly 2 Stage reach from 32″ to 62″
- Double two point safety lock release with built-in 18 locking positions
- Automatic arm lock restraints
- Drop-in type lifting pads and truck adapters included
- Relief valve built in power pump to prevent overloading
- Heavy duty 3/10″ diameter cable and 3 2/5″ pulley that reduce high stress on synchronization process and increase cable life
- Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down
- Floor concrete requirement: 4″ Depth, 3000 PSI Rebar Reinforced
- Anchor bolts/mounting hardware included
- 1 set of 4″ Truck adapters included
- Door guards protection rubber is optional
- Blue Powder coated finish provides superior resistance against corrosion.
- Shipping Weight: 1350 LB
