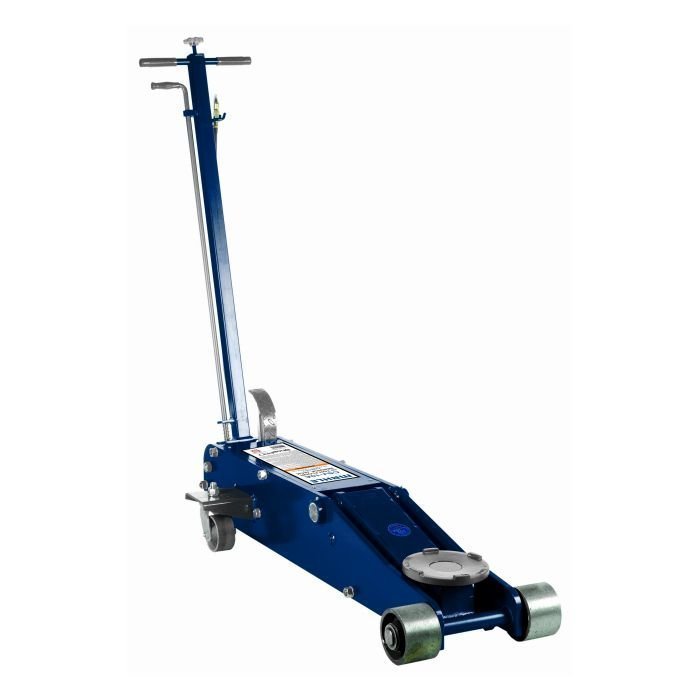

The MAHLE Shop PRO Service Jacks are built up to a 20,000 lbs. lifting capacity and provide the reliability and quality needed to keep your operation going. Made in the USA, these vehicle service jacks offer a low starting height that provides shops with the flexibility to accommodate a variety of vehicles. The unique large 5″ front wheels and long-life heavy-duty 4″ rear swivel caster design makes maneuvering any component and easy task. The heavy-duty steel frame design stands up to the most vigorous shop use.
Features
- 20,000 lbs. Capacity
- Low Start Height
- High Lift Height
- Unique Large Front Wheels
- Heavy-Duty Rear Swivel Caster Design
- Heavy-Duty Steel Frame
Specifications
- Maximum Capacity: 20,000 lbs. (9,072 kg)
- Minimum Start Height: 7 in (18 cm)
- Maximum Lift Height: 27 in (69 cm)
- Power: Air / Hydraulic / Manual
- Required Air Pressure: 90 to 175 psi (6.2 to 12.1 bar)
- Chassis Dimensions (H x L): 10 in x 53.5 (25 cm x 136 cm)
- Overall Reach: 93 in (236 cm)
- Saddle Diameter: 8 in (20 cm)
- Front Width Caster to Caster: 17.1 in (43 cm)
- Rear Width Bracket to Bracket: 20.1 in (51 cm)
- Front Caster Diameter: 5 in (13 cm)
- Rear Swivel Caster Diameter: 4 in (10 cm)
- Handle Length: 47 in (119 cm)
- Dimensions: (W x L) 21.9 in x 101.8 in (56 cm x 259 cm)
- Shipping Weight: 410 lbs. (186 kg)
