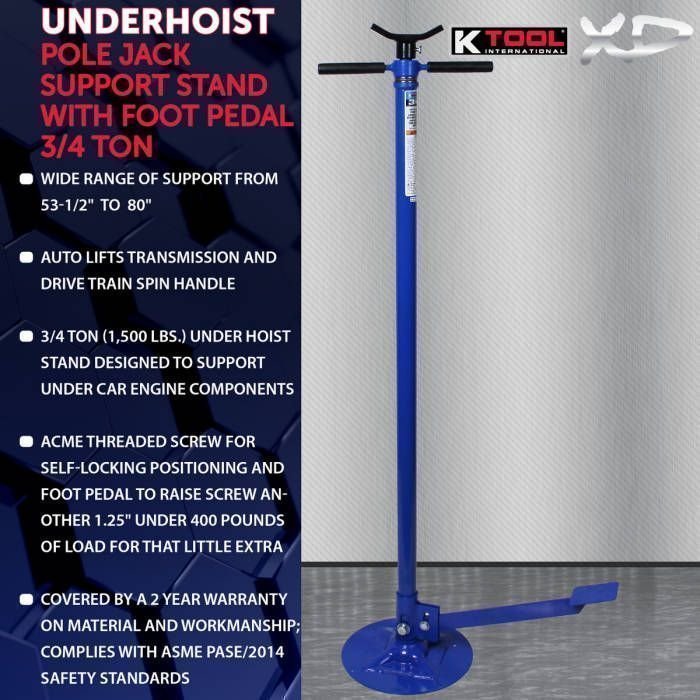

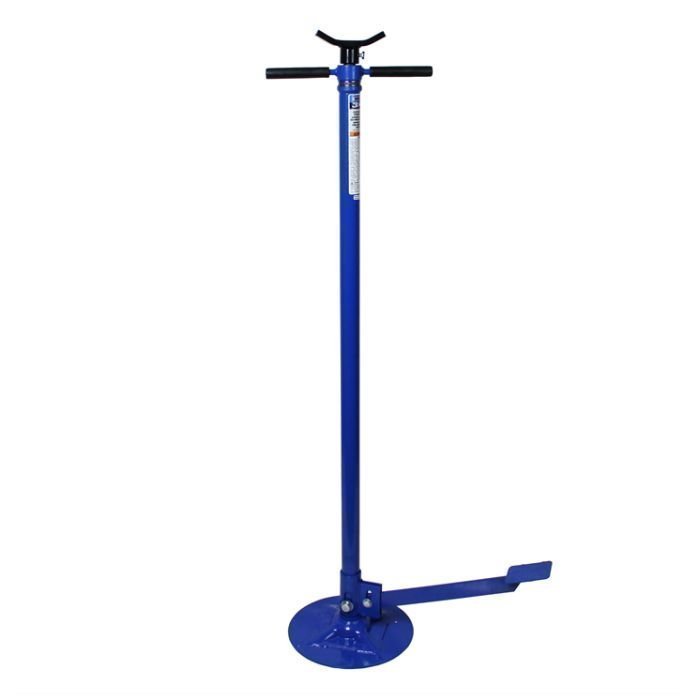

The K Tool 3/4 Ton Under Hoist Jack Stand with Pedal is designed to support under-car components. The supporting range is from 53-1/2″ to 80″. Acme threaded screw for self-locking positioning and foot pedal to raise screw another 1.25″ under 400 lbs. of load. Bearing mounted spin handle for easy raising and lowering of the screw. 12″ diameter base with 1.63″ x 5.5″ saddle provides additional support. Under hoist stands work by holding up your work from the bottom. They are thin and easily portable, allowing you to set them up when you need them and store them anywhere when you don’t.
Features

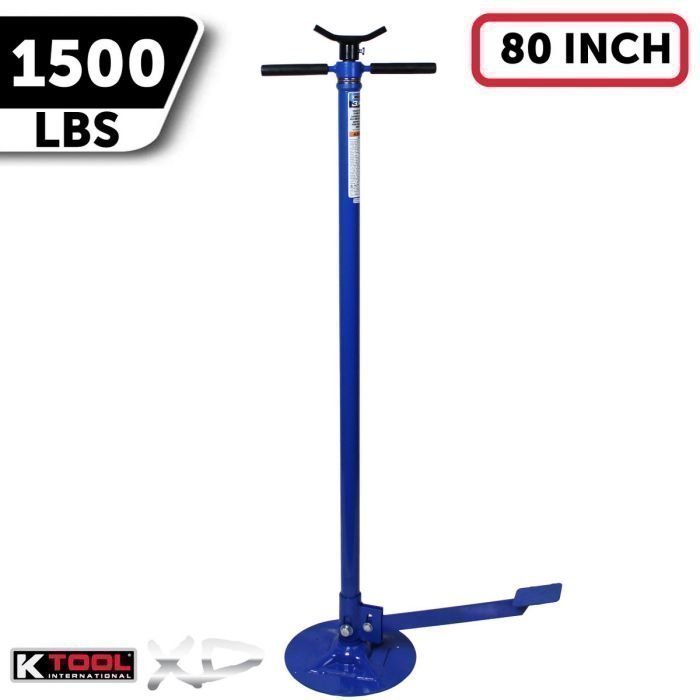

- 3/4 Ton 1,500 lbs. Capacity

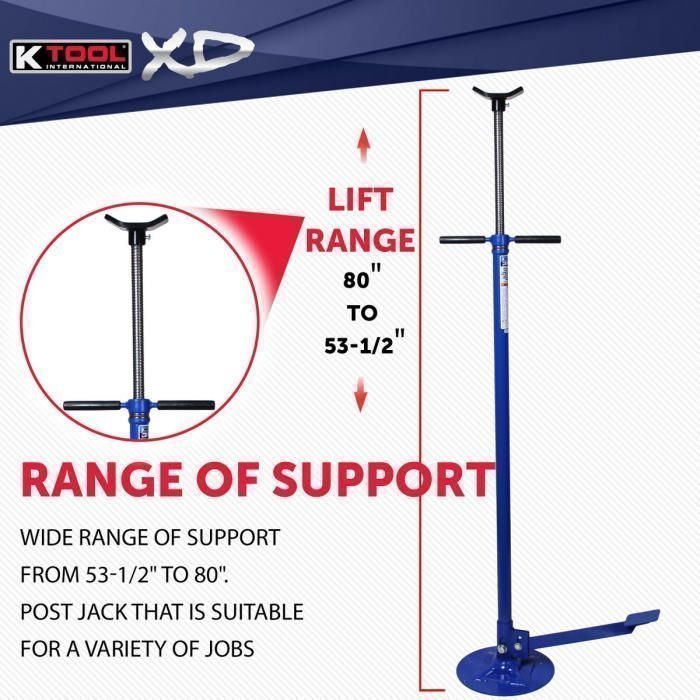

- Support Range from 53-1/2″ to 80″
- Acme Threaded Screw for Self-Locking Positioning

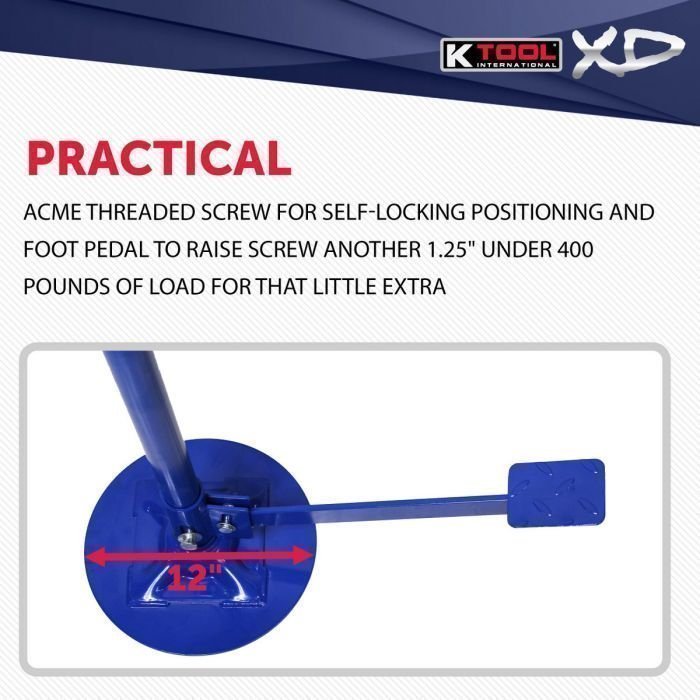

- Foot Pedal Raises Screw Another 1.25″ Under 400 lbs. of Load
- Bearing Mounted Spin Handle

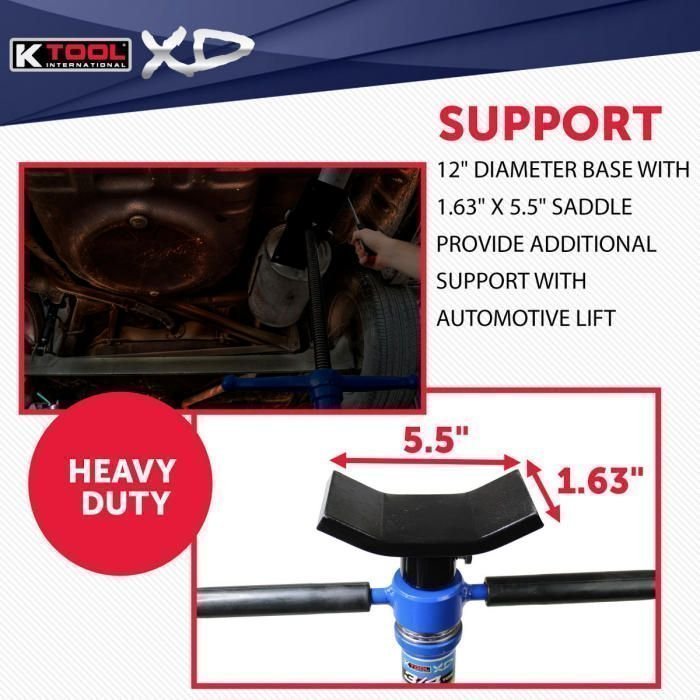

- 12″ Diameter Base with 1.63″ x 5.5″ Saddle

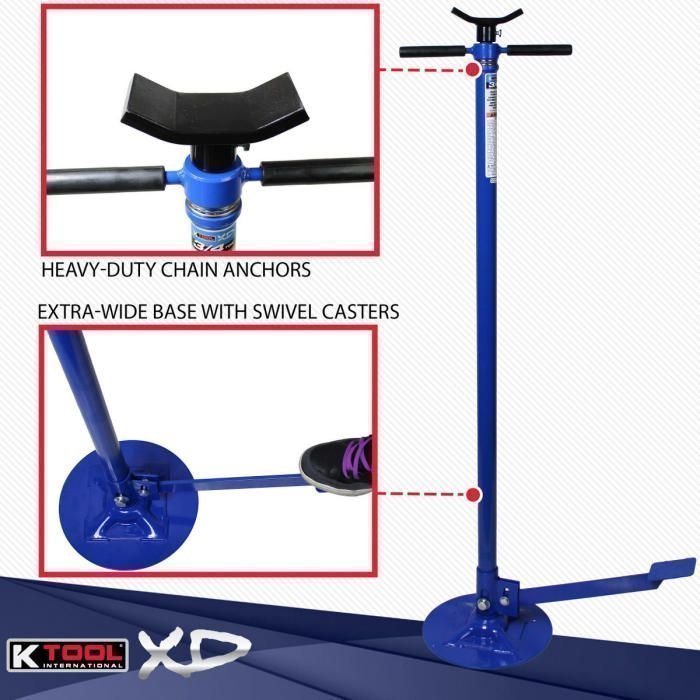

- Heavy-Duty Chain Anchors
Specifications
- Capacity (Tons): 3/4
- Low Height: 53.5″
- High Height: 80″
- Travel: 26.5″
- Base Diameter: 12″
- Saddle Size: 1.63″ x 5.5″
- Warranty: 2 Years
