ESCO maximum force airbags are thin reinforced, molded inflatable jacks that can be positioned in tight or confined spaces with as little as one-inch clearance.

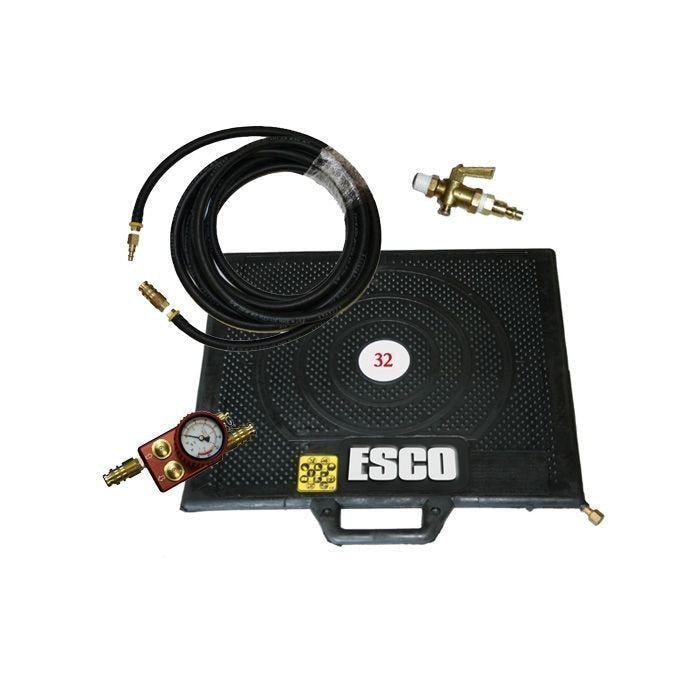

Kit Includes

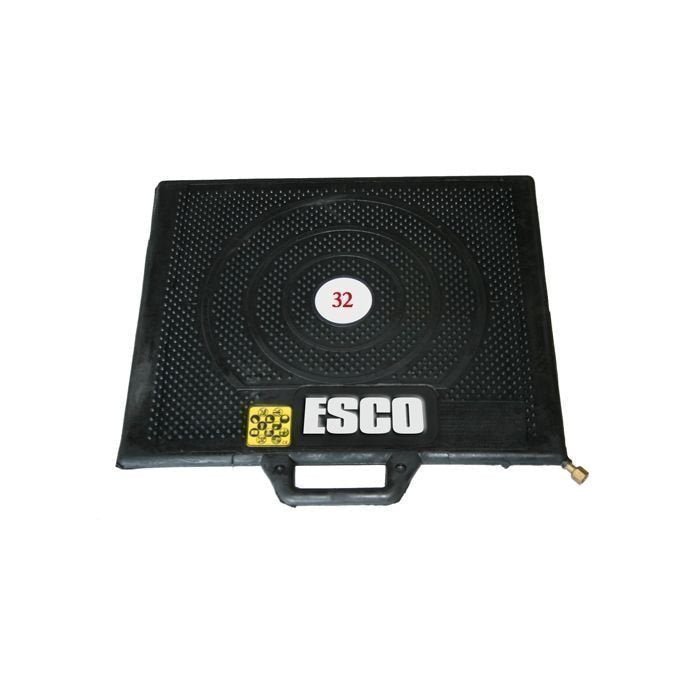

- – 32 Ton Air Bag Jack
- – 20′ Air Bag Jack Hose and Couplers

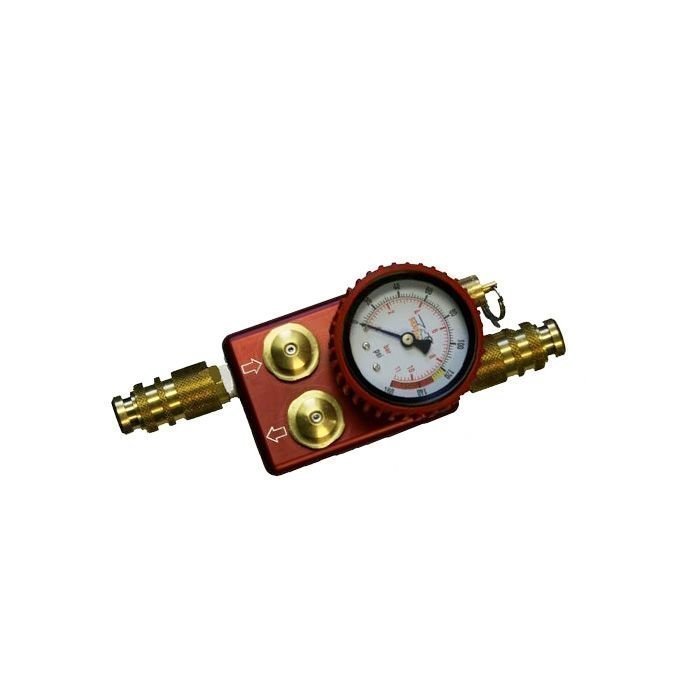

- – Single Safety Relief and Control Valve

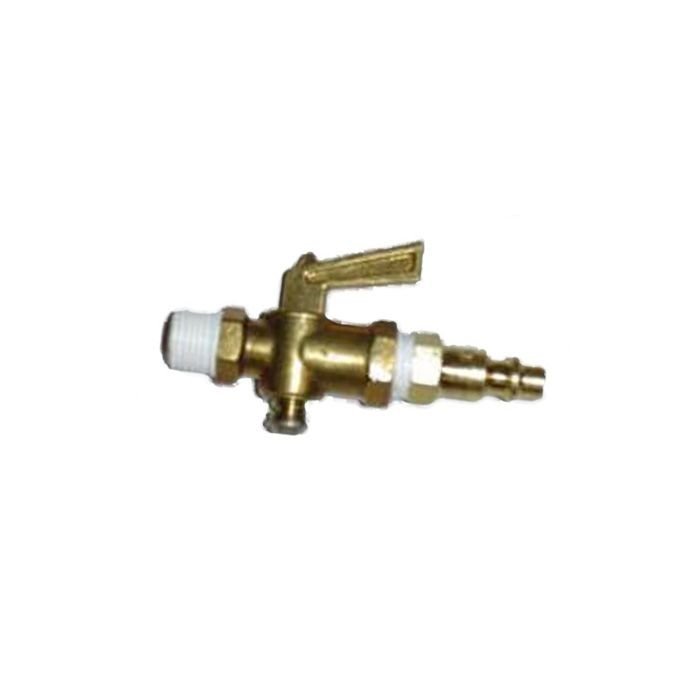

- – Nipple and Industrial Nipple with Valve
Features
- MAXIMUM Force Air Bags.
- THIN reinforced, molded inflatable jacks.
- CAN be positioned in tight or confined spaces with as little as one-inch clearance.
- Lifting capabilities range from 7.6 Tons to over 69 Tons.
- MADE of aramid fiber consisting of five layers
- Airbags may be used for lifting in several different industries such as Material Handling, Railroad Work, Mining, Rescue, Military Agricultural, OTR Tire Changing
Specifications
- Lifting Capacity: 32 Tons
- Dimensions: 21″ x 25″ x 1″ (534mm x 635mm x 25mm)
- Height Max Inflation: 12″ (305mm)
- Weight: 32 lbs. (15 kg)
