ESCO maximum force airbags are thin reinforced, molded inflatable jacks that can be positioned in tight or confined spaces with as little as one-inch clearance.
Features
- MAXIMUM Force Air Bags.
- THIN reinforced, molded inflatable jacks.

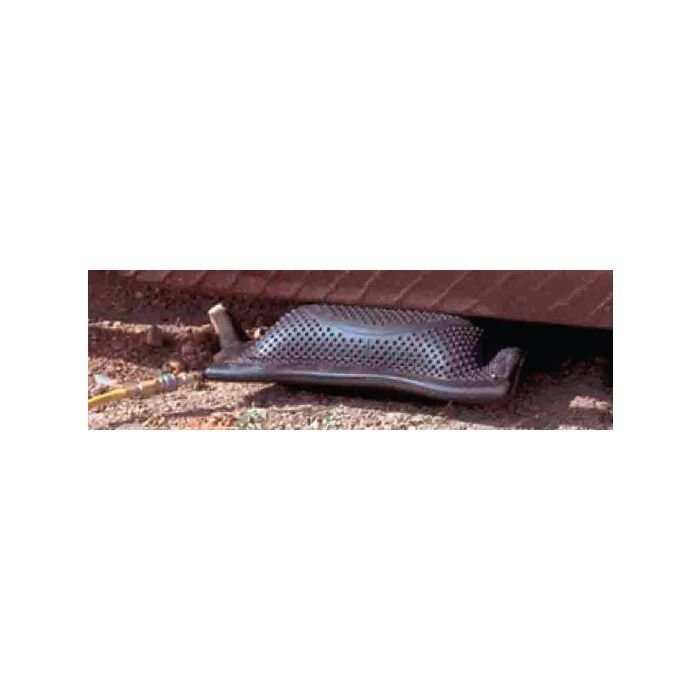

- CAN be positioned in tight or confined spaces with as little as one-inch clearance.
- Lifting capabilities range from 7.6 Tons to over 69 Tons.
- MADE of aramid fiber consisting of five layers
- Airbags may be used for lifting in several different industries such as Material Handling, Railroad Work, Mining, Rescue, Military Agricultural, OTR Tire Changing
Specifications
- Lifting Capacity: 13 Tons
- Dimensions: 15″ x 15″ x 1″ (381mm x 381mm x 25mm)
- Height Max Inflation: 7.5″ (191mm)
- Weight: 18 lbs. (8 kg)

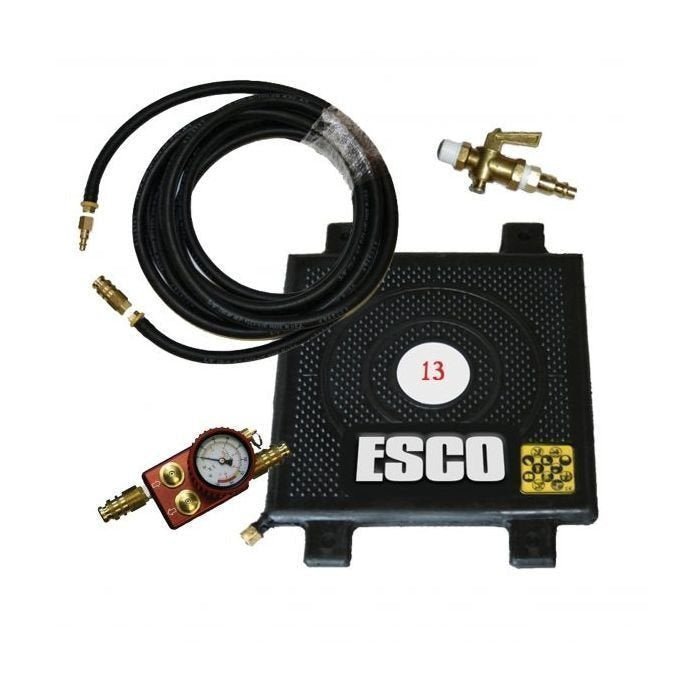

Kit Includes

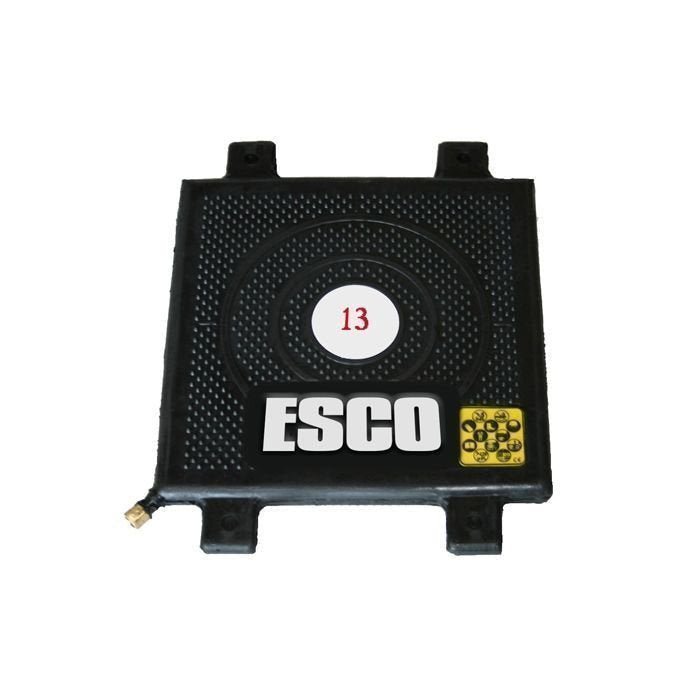

- #12105 – 13 Ton Air Bag Jack

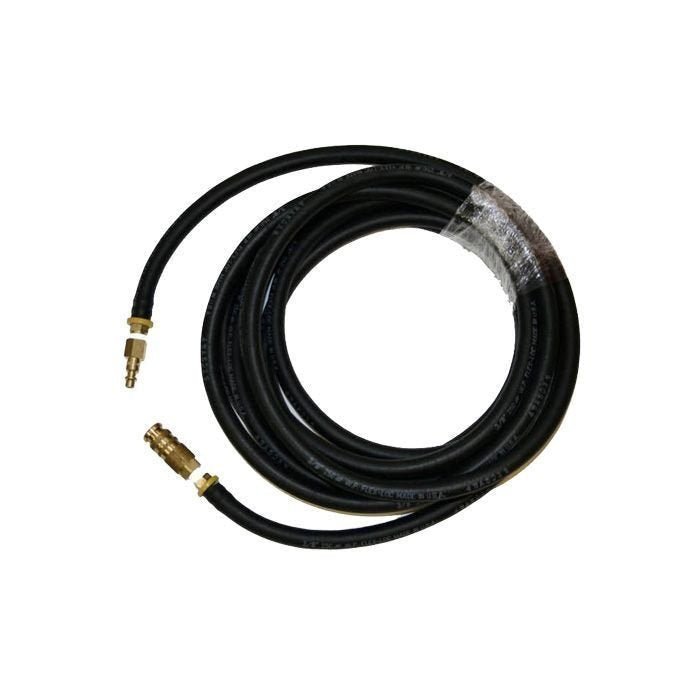

- #12122 – 20′ Air Bag Jack Hose and Couplers

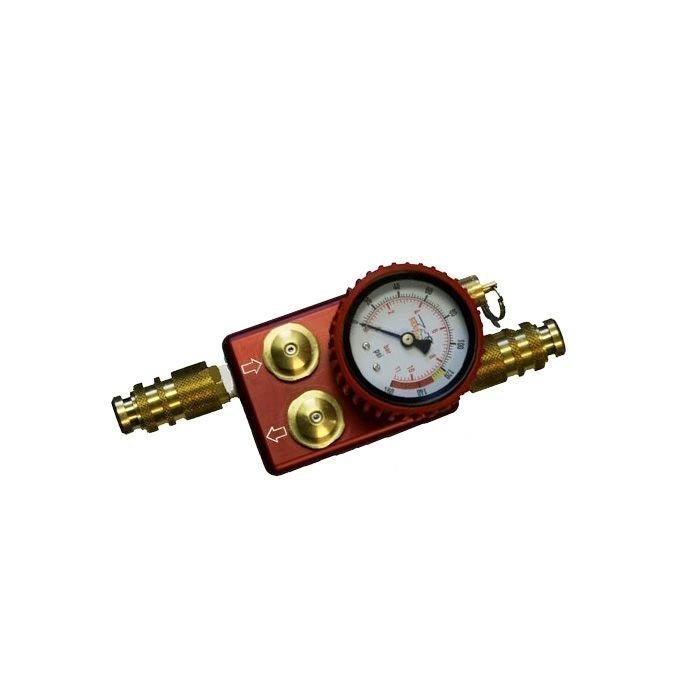

- #12119 – Single Safety Relief and Control Valve

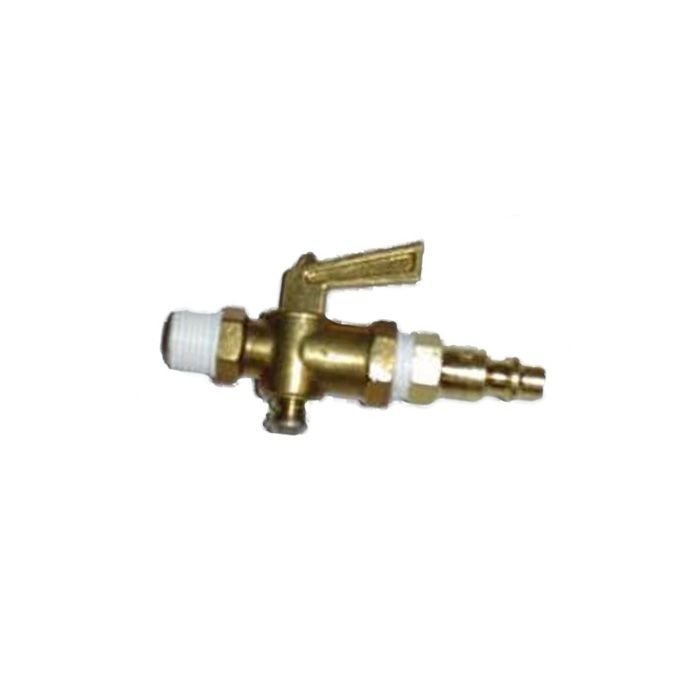

- #12123 – Nipple and Industrial Nipple with Valve
