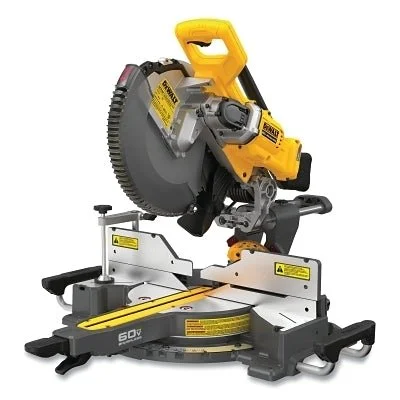

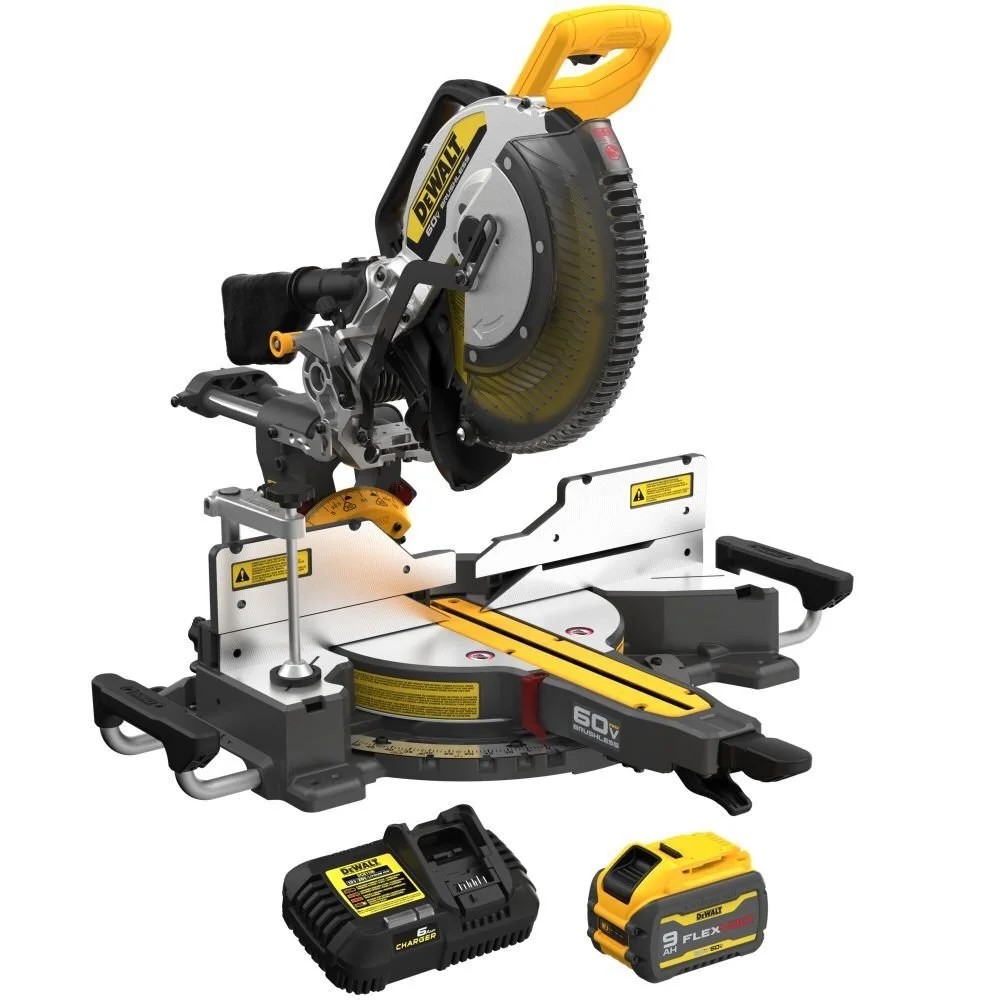

The 12″ double bevel sliding compound miter saw has a 15 Amp motor delivers extended power and durability and integrated XPS crosscut positioning system for adjustment-free, accurate cut line indication for better accuracy and visibility. Tall sliding fences support 7-1/2″ of nested crown and 6-3/4″ of base molding vertically against the fence while easily sliding out of the way for bevel cuts. Exclusive back fence design cuts up to 2×14 dimensional lumber at 90 degree increased miter capacity of 60 degree (r) and 50 degree (l) features durable stainless-steel miter detent plate with cam lock for repeatable accuracy with easy adjustments.
| Manufacturer | DeWalt |
|---|---|
| Condition | New |
| UPC | 85911231602 |
| Features |
|
| Includes |
|
| Electric Brake | No |
| Variable speed | Yes |
| Application | Cutting Stair Tread Up to 14″ Cross Cut (with Back Fence), Cutting Crown and Cutting Base Molding Vertically Nested Against Fence, Cutting 2x Material and Precision Cuts for Woodworking |
|---|---|
| Type | Miter Saw |
| Corded or Cordless | Corded |
| Accessories Included | Yes |
| Dust Collection | Yes |
| Water Resistant | Yes |
| LED Light | Yes |
| Bevel Angle | 49 Deg /49 Deg |
| Uncertainty K1 (Vibration) | 1.5 m/s2 |
| Diameter | 12″ |
| Motor Amperage | 15 Amp |
| No Load Speed (RPM) | 3,800 RPM |
| Crown Molding Capacity | 7 1/2″ |
| Base Molding Capacity | 6 3/4″ |
| Cutting Capacity at 90 Degree | 2″ x 14″ |
| Cutting Capacity at 45 Degree | 2″ x 10″ |
| Miter Angle | 60 Deg (Right) and 50 Deg (Left) |
| Wattage | 1675 W |
| Worklight | 3.3 V |
| Power Supply (Input) | 120–240 V AC; 50 and 60 Hz |
| Power Supply (Output) | 5 V DC; 0.45 A |
| Operating Temperature | 14 Deg F to 104 Deg F |
| Storage Temperature | -22 Deg F to 176 Deg F |
| Cord Length | 6 ft |
| Height | 19.5″ |
| Width | 23″ |
| Depth | 32.33″ |
| Weight | 56 lbs |
| Warranty | 3 Years |
